Description

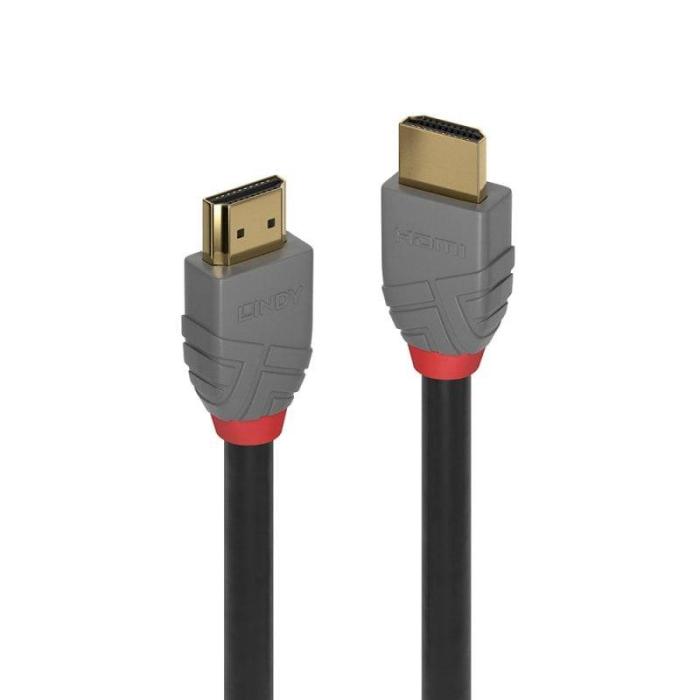

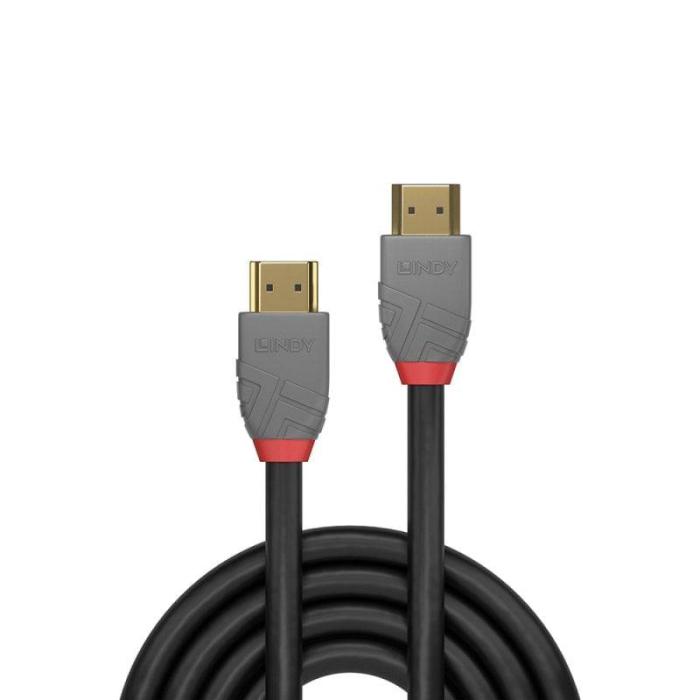

LINDY HDMI cable in black and grey, with male HDMI type A (Standard) connectors at both ends and round cable format. Its 5 m cable is manufactured with 30 AWG gauge and enables a data transfer rate of 18 Gbit/s, with compatible graphics resolution of up to 4096 x 2160 and 2160p video modes. It features an HDMI Ethernet channel to share data between devices connected to the same network, and its Plug and Play function speeds up setup without additional configurations. The contacts and plate are made of copper, which favours stable signal conduction. The minimum bend radius of 4.8 cm facilitates installation in tight spaces or with tight curves. Its nominal attenuation remains at values of 5 dB between 300 kHz and 2.475 GHz, rises to 12 dB in the 2.475 to 4.125 GHz range and reaches 20 dB between 4.125 and 5.1 GHz.
Specifications
Features
- Bending radius (min): 4.8 cm
- Plug and Play: Yes
- Colour sampling: 4:4:4
- Nominal attenuation: 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
- Cable length: 5 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black, Grey
- Supported graphics resolutions: 4096 x 2160
- Supported video modes: 2160p
- HDMI Ethernet channel: Yes
- Data transfer rate: 18 Gbit/s
- AWG wire size: 30
- Contact material: Phosphor copper
- Connector contacts plating: Gold
- Connector housing material: Polyvinyl chloride (PVC)
- Connector material: Gold
- Cable material: Copper
- Cable type: Round cable
- Cable jacket material: Polyvinyl chloride (PVC)
- Shield material: Copper
Operational conditions
- Operating temperature (T-T): -10 - 80 °C
- Storage temperature (T-T): -10 - 80 °C
Certificates
- Compliance certificates: RoHS
- Certification: RoHS, REACH, UL, ATC
Weight & dimensions
- Cable diameter: 6 mm
- Connector 1 dimensions (WxDxH): 20 x 34.2 x 10.9 mm
- Connector 2 dimensions (WxDxH): 20 x 34.2 x 10.9 mm
Packaging data
- Package type: Polybag
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
