Description

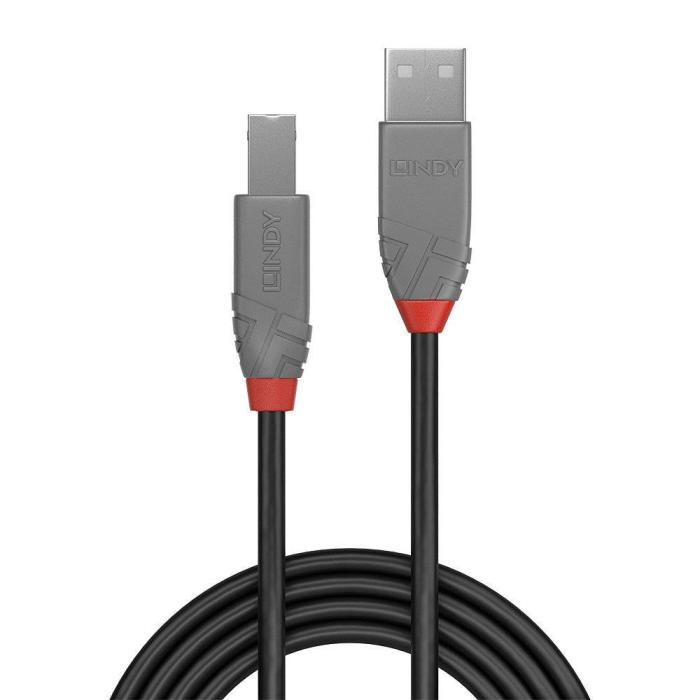

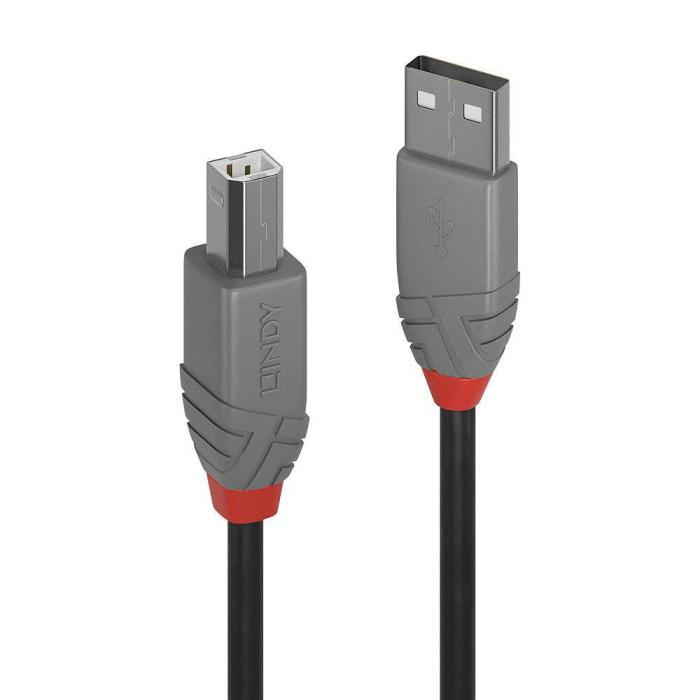

Connects two devices via USB with the Lindy 36674 cable, a round black 3 m cable that joins a USB A connector and a USB B connector. Both ends are male and have a straight form factor, so they plug directly into the corresponding ports. The cable complies with USB 2.0 and its gauge is 26/28 AWG. The contacts are made of copper and the conductor is tinned copper, which favours stable data transmission. The connector features aluminium shielding with nickel material, a detail that helps reduce signal interference. The connector's sheath and jacket use polyvinyl chloride (PVC), a material that protects the cable against wear from daily use. Its nominal attenuation is 5.8 dB/km, a value suited to this type of connection.
Specifications
Features
- USB version: USB 2.0
- Connector 1: USB A
- Connector 2: USB B
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 26/28
- Connector material: Nickel
- Contact material: Copper
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
- Connector shielding: Yes
- Connector shield material: Aluminium
- Connector housing material: Polyvinyl chloride (PVC)
- Maximum data transfer rate: 0.48 Gbit/s
- Product colour: Black
- Cable type: Round cable
- Nominal attenuation: 5.8db/km
Weight & dimensions
- Cable length: 3 m
- Cable diameter: 4.4 mm
- Bend radius (min): 1.6 cm
- Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
- Connector 2 dimensions (WxDxH): 11.8 x 35 x 10.2 mm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): 0 - 60 °C
Certificates
- Certification: RoHS, REACH, UL
Logistics data
- Harmonized System (HS) code: 84733080
