Description

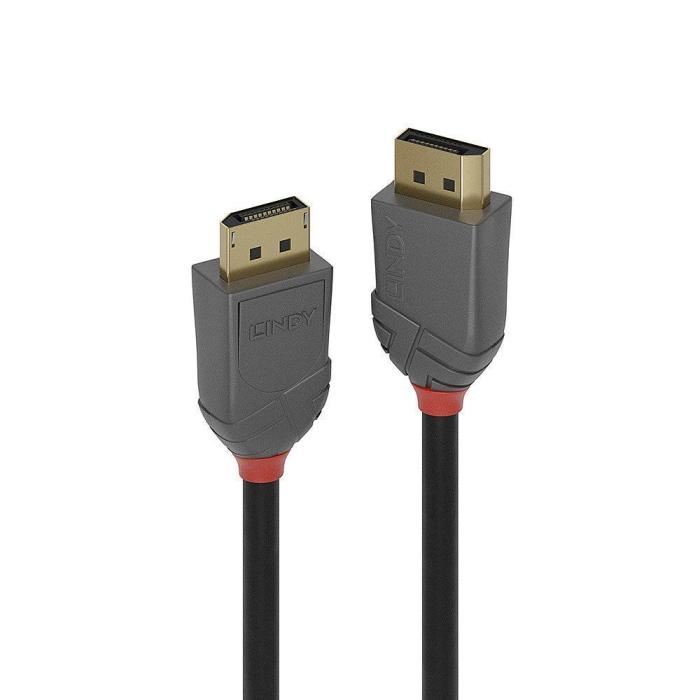

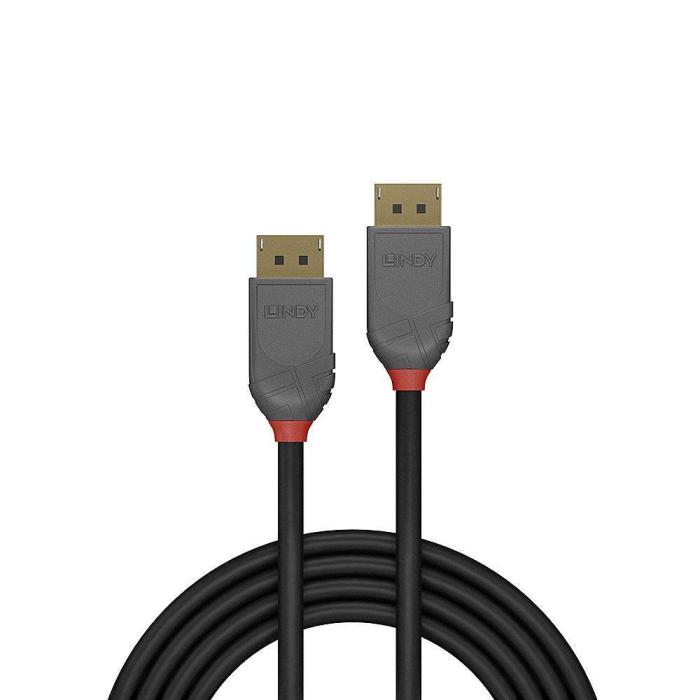

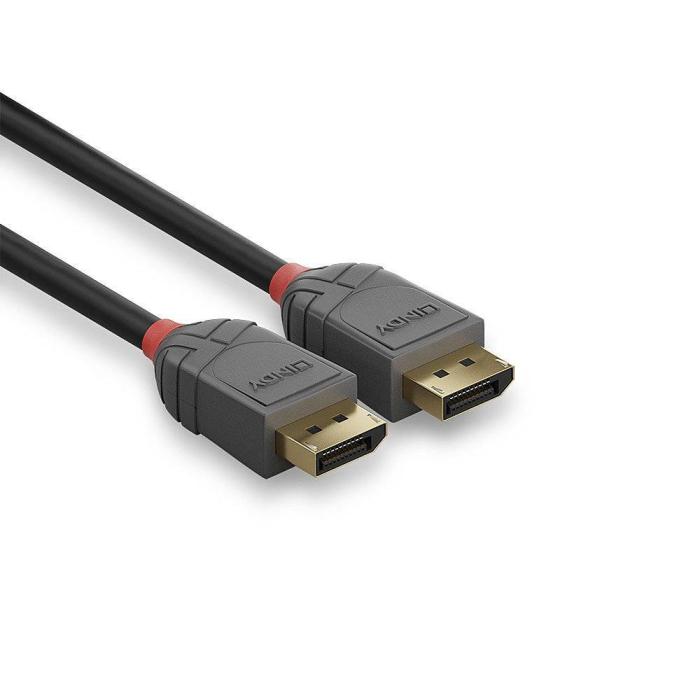

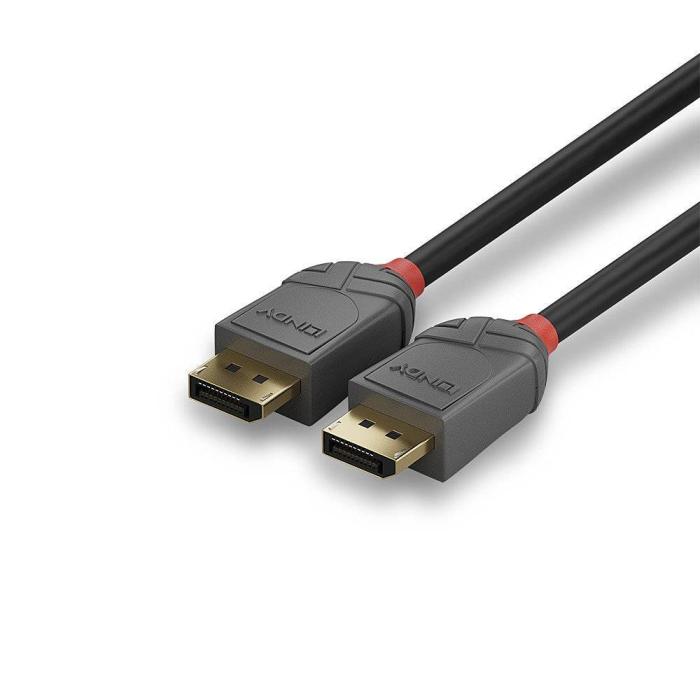

Connect devices using the LINDY DisplayPort cable, a 1 m round cable in black and grey with straight male DisplayPort connectors at both ends. Its DisplayPort 1.4 version enables a data transfer rate of 32.4 Gbit/s and is compatible with graphics resolutions of 4096 x 2160 and 7680 x 4320. The copper shielding protects the signal, while the phosphor bronze contacts ensure stable transmission. It supports 4:2:2 chroma subsampling and has a nominal attenuation of 5.1 dB between 100 and 450 MHz and 33.28 dB between 450 and 8100 MHz. The cable gauge is 28 AWG and its jacket is made of polyvinyl chloride. Thanks to the Plug and Play function, simply plug it in to start using it.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.4
- Maximum resolution: 7680 x 4320 pixels
- Supported graphics resolutions: 4096 x 2160, 7680 x 4320
- Maximum refresh rate: 60 Hz
- Cable length: 1 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black, Grey
- Cable material: Tinned copper
- Cable shielding: Copper
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- AWG wire size: 28
- Data transfer rate: 32.4 Gbit/s
- Contact material: Phosphor bronze
- Connector material: Gold
- Plug and Play: Yes
- Colour sampling: 4:2:2
- Cable type: Round cable
- Nominal attenuation: 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Certification: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 7.3 mm
- Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
- Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
- Bend radius (min): 5.84 cm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
