Description

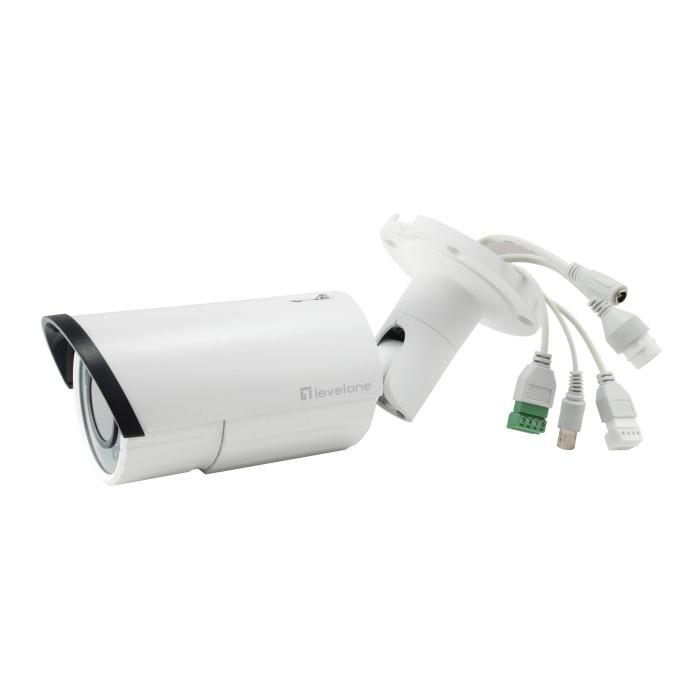

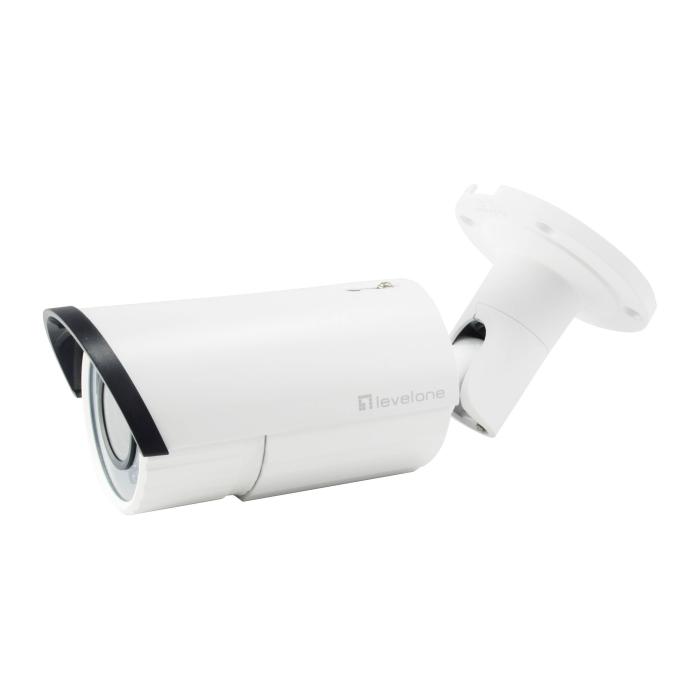

The LevelOne FCS-5060 surveillance camera is a bullet-type model in white, designed for ceiling or wall mounting both indoors and outdoors. It has wired connectivity and offers a resolution of 1920 x 1080 pixels thanks to its 25.4 / 2.8 mm CMOS sensor with progressive scanning. It incorporates an infrared cut filter, which allows it to work with a minimum illumination of 0 lx, and features a wide dynamic range to compensate for light contrasts. The field of view angle reaches 106°, with a shutter speed of 1/3 to 1/10000 s and focus settings of 1.4. Its IP66 protection rating makes it suitable for withstanding adverse outdoor conditions, and its compact format measures 105 x 95 x 258.6 mm with a weight of 1.2 kg. It has CE and FCC certification.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Infrared (IR) cut-off filter: Yes
- Certification: CE,FCC
Design
- Form factor: Bullet

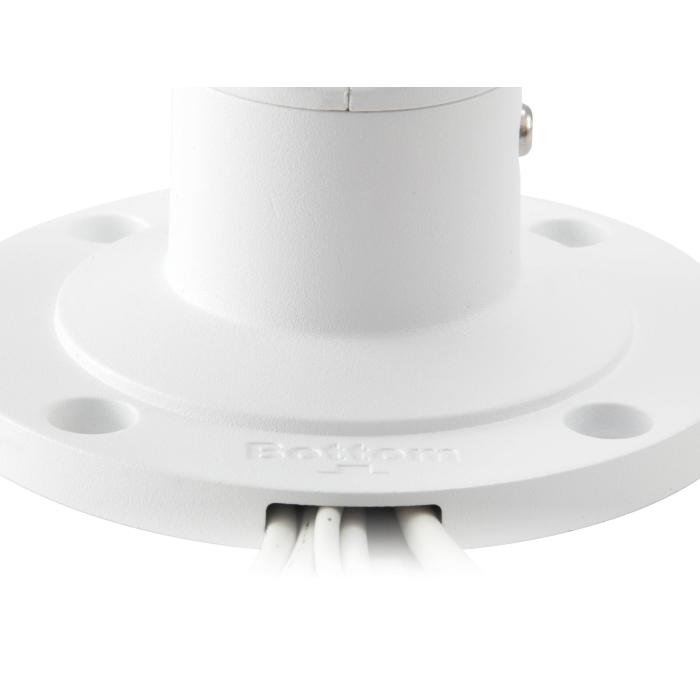

- Mounting type: Ceiling/wall
- Product colour: White
- International Protection (IP) code: IP66
- Country of origin: China
Camera
- Minimum illumination: 0 lx
- Field of view (FOV) angle: 106°
- Camera shutter speed: 1/3 - 1/10000 s
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 4x
- Number of lenses: 1
- Focal length range: 2.8 - 12 mm
- Focus: Motorized
- Focus adjustment: 1.4

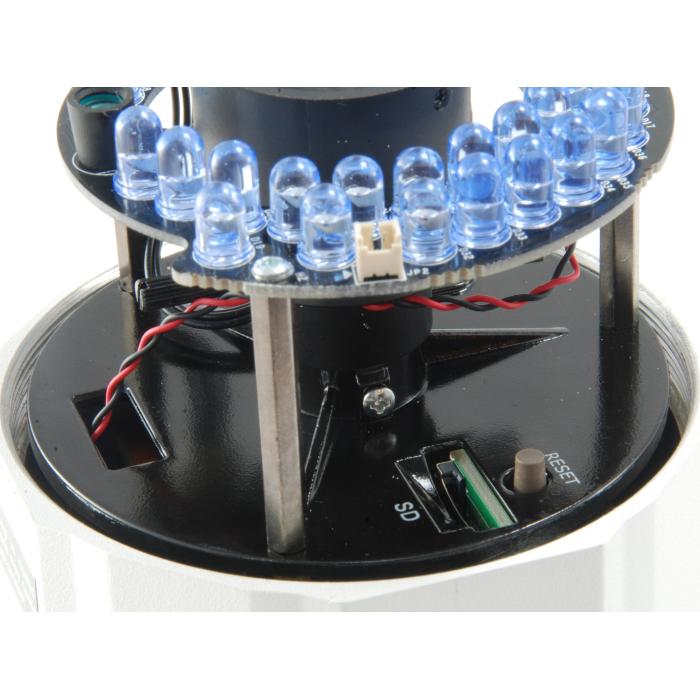

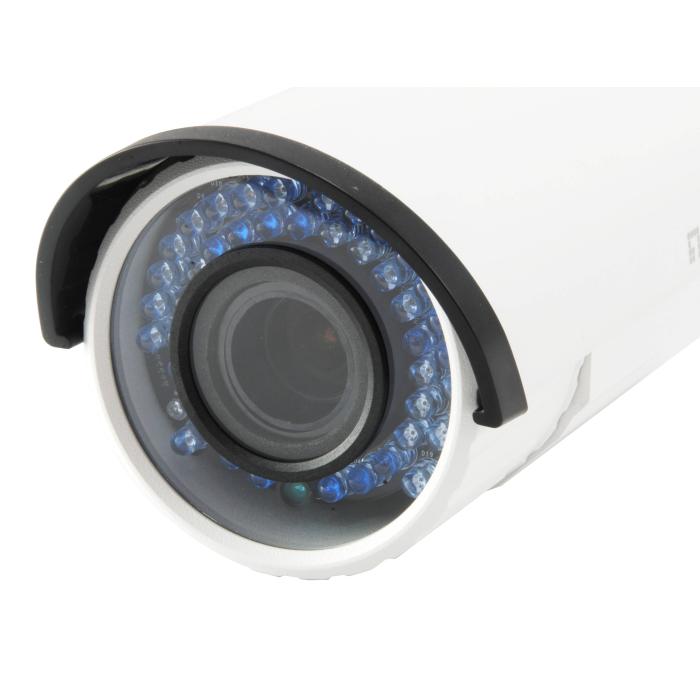

Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR
Video
- Maximum resolution: 1920 x 1080 pixels
- Total megapixels: 2 MP
- Video formats supported: MP4
- Video compression formats: H.264, H.264+, M-JPEG
- Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
- Frame rate: 30 fps
- Video streaming: Yes
- Noise reduction: Yes
- Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
- Flip & mirror: Yes
- Portrait mode: Yes
- Privacy masking: Yes
- Time stamp overlay: Yes
- Text caption overlay: Yes
- Back Light Compensation (BLC): Yes
Audio
- Voice codecs: G.711, G.722.1, G.726
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
- Supported network protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS,Unicast
- Wi-Fi: No
- Bluetooth: No
- Number of users: 20 user(s)
- Streaming method: Multicast
Storage
- Card reader integrated: Yes
- Compatible memory cards: SD, SDHC, SDXC
- Maximum memory card size: 128 GB

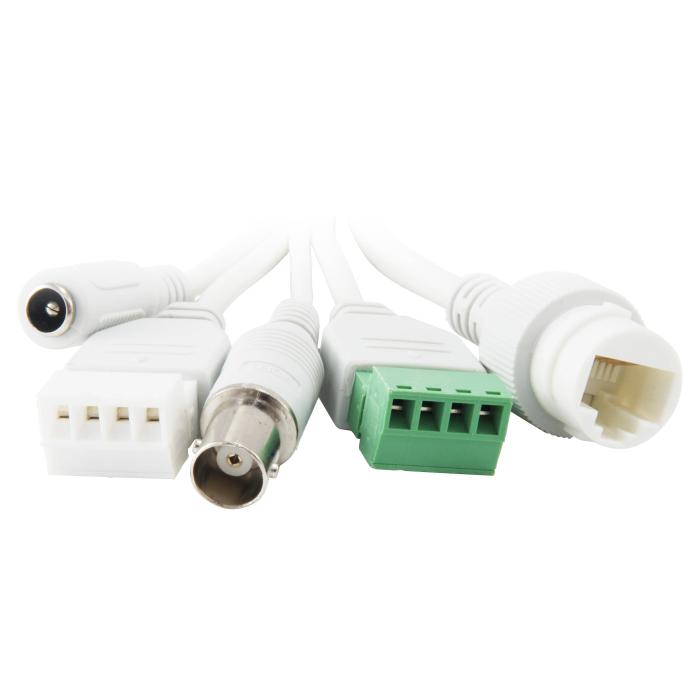

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Composite video out: 1
- Terminal block port: Yes
Security
- Video motion detection: Yes
Management features
- Reset button: Yes
- Cable management: Yes
Power
- Power source type: PoE
- Power consumption (typical): 5.5 W
- Power consumption (max): 7.5 W
- DC output voltage: 12
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): 30 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
Weight & dimensions
- Width: 105 mm
- Depth: 258.6 mm
- Height: 95 mm
- Weight: 1.2 kg
Packaging data
- Package width: 386 mm
- Package depth: 156 mm
- Package height: 155 mm
- Package weight: 1.33 kg
- Package type: Box
Packaging content
- Number of cameras: 1
- Resource CD: Yes
Technical details
- Iris: Yes
Logistics data
- Harmonized System (HS) code: 85258900
- Master (outer) case width: 490 mm
- Master (outer) case length: 400 mm
- Master (outer) case height: 500 mm
- Master (outer) case gross weight: 11.9 kg
- Products per master (outer) case: 9 pc(s)
