Description

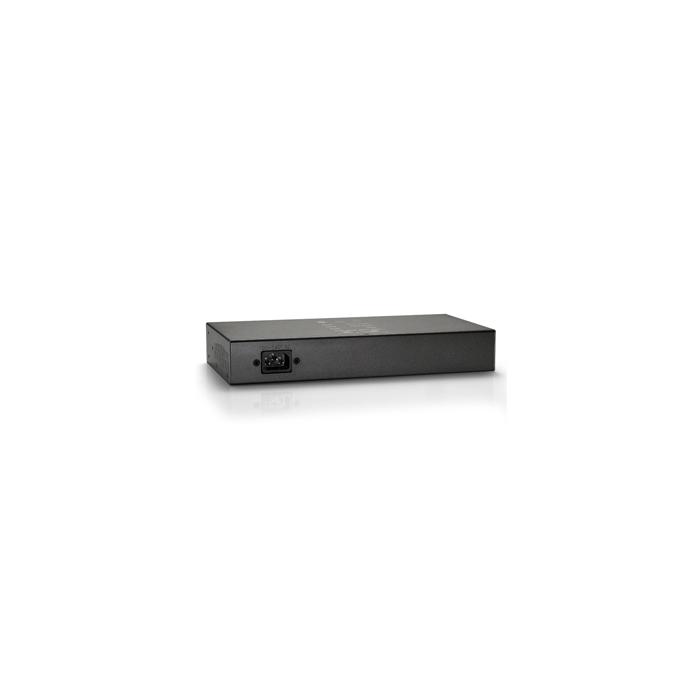

The LEVELONE 8-port Gigabit Ethernet PoE switch, in black, distributes data and power over a single network cable. It is an unmanaged Layer 2 device, so it works as soon as it is connected, with no prior configuration. Its eight RJ-45 ports are Gigabit Ethernet (10/100/1000) and four of them offer PoE+ compliant with IEEE 802.3af and IEEE 802.3at, with a total power of 61.6 W to power IP cameras, access points or phones. The copper cabling supports 1000BASE-T, 100BASE-TX and 10BASE-T, with full duplex mode and flow control according to IEEE 802.3x. Its switching capacity reaches 16 Gbit/s, the MAC address table supports 8192 entries and the buffer is 16 KB, with Jumbo Frames and store-and-forward support. The casing is metal, weighs 1.5 kg and measures 280 x 44 x 125.5 mm (width x height x depth), with LED indicators to monitor the status of each port.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- MAC address table: 8192 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
Design
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
Performance
- Buffer size: 16 KB
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 65 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 280 mm
- Depth: 125.5 mm
- Height: 44 mm
- Weight: 1.5 kg
Packaging content
- Quick start guide: Yes
Certificates
- Certification: FCC, CE
