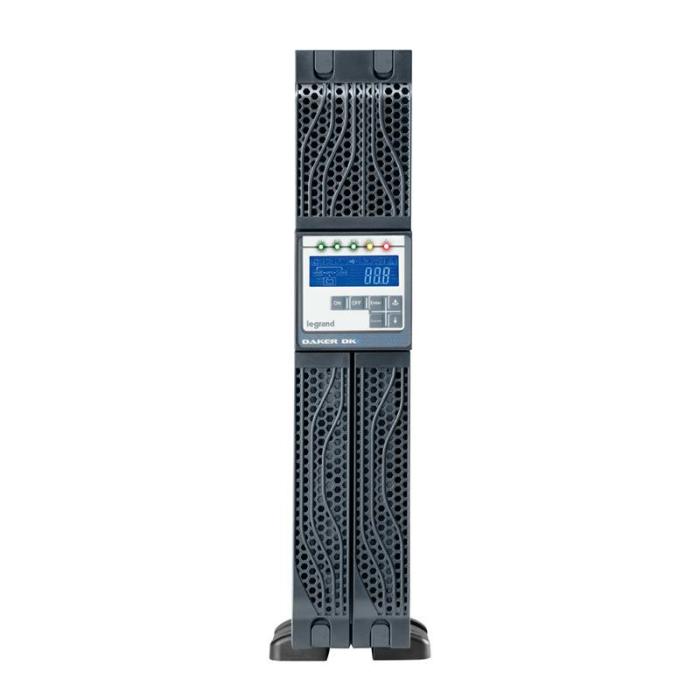

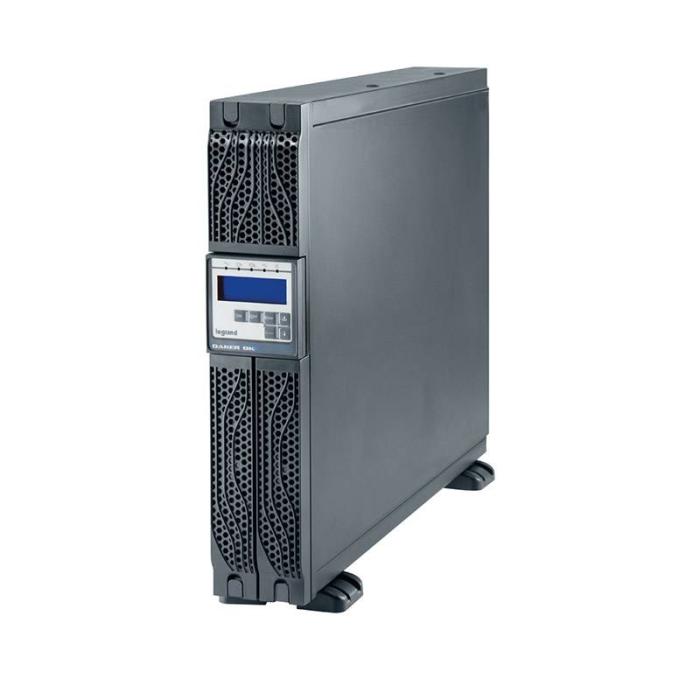

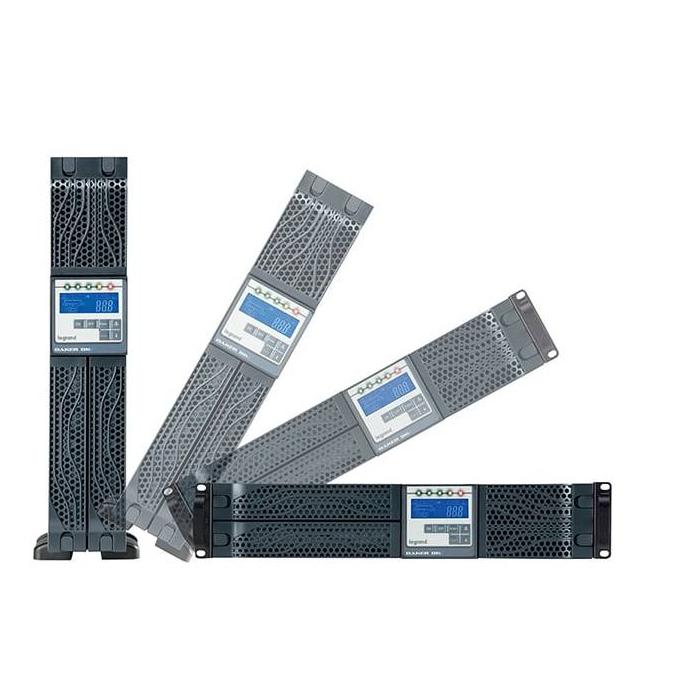

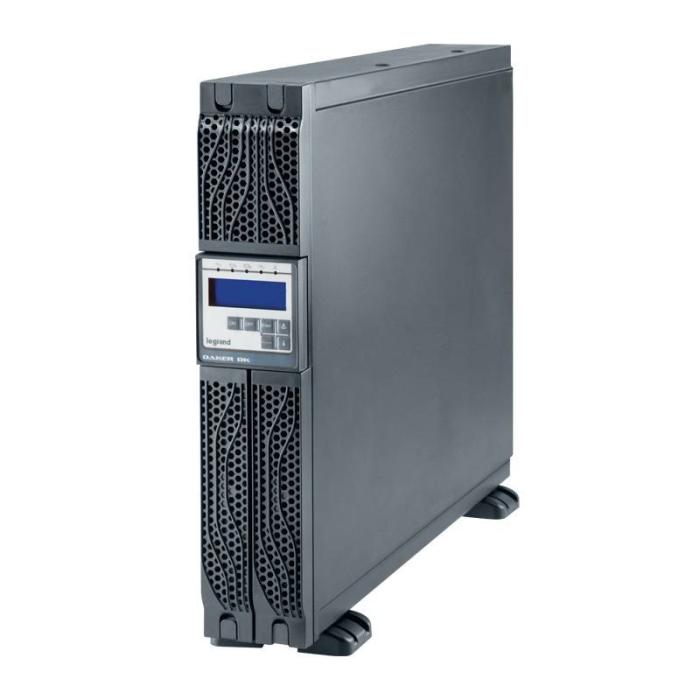

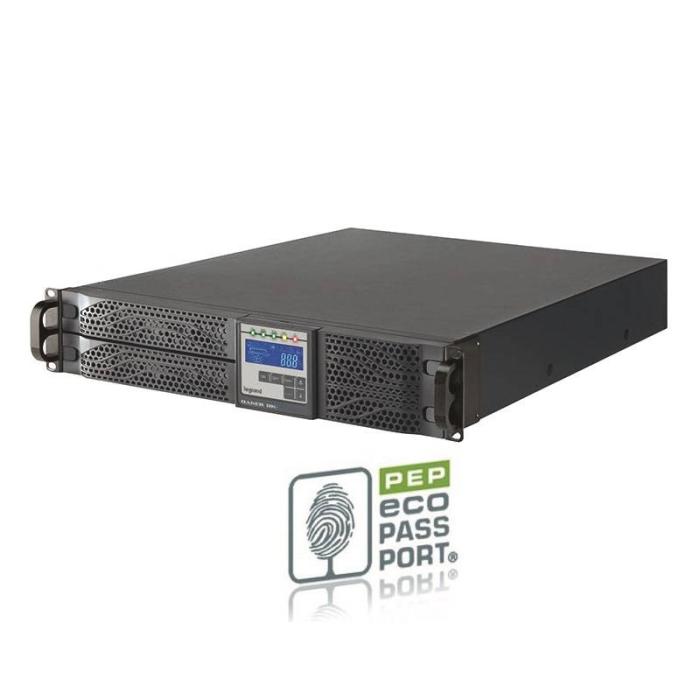

Legrand Daker DK+ UPS DAKER DK PLUS 2000VA uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s)
More info
Brand: LEGRAND
1,602.66 €
1,335.55 €
without VAT
Stock available: 2 units.
Get it
on the
September 28
/
September 30
SKU:
92947
PRC:
368516
EAN:
3414970826930
PN:
310171
Description
The Legrand Daker DK Plus 2000VA UPS protects critical equipment with double-conversion (online) topology, so the load always receives conditioned current. It delivers 1800 W of output power with a sine waveform and an output power factor of 0.9, plus a crest factor of 3:1 to handle start-up peaks. Its single-phase input supports an operating range of 176 V to 280 V and a frequency of 47/63 Hz, with an input power factor of 0.99 and a total harmonic distortion of 3%. It reaches an efficiency of 91% and rises to 97% in ECO mode. It includes emergency shutdown and generates 50 dB of noise level during operation. It comes in black, with a weight of 29.5 kg and dimensions of 88 x 440 x 600 mm (width x height x depth).
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 2 kVA
- Output power: 1800 W
- Waveform: Sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 280 V
- Input frequency: 47/63 Hz
- Output operation voltage (min): 228 V
- Output operation voltage (max): 232 V
- Output frequency: 50/60 Hz
- Output voltage regulation: 1%
- Surge energy rating: 1530 J
- Number of input phases: 1
- Number of output phases: 1
- Efficiency: 91%
- Efficiency (ECO mode): 97%
- Input power factor: 0.99
- Output power factor: 0.9
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 50 dB
- Management protocols: Network management,Simple Network Management Protocol (SNMP)
- Potential-free output: No
- Auto shut-off: No
- Power source type: AC
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 6 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
Battery
- Battery capacity: 7.2 Ah
- Battery voltage: 12 V
- Number of batteries supported: 6
- Battery recharge time: 4 h
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Status
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
Certificates
- Certification: EN 62040-1, EN 62040-2, EN 62040-3
Weight & dimensions
- Weight: 29.5 kg
- Width: 88 mm
- Depth: 600 mm
- Height: 440 mm
Packaging data
- Package width: 88 mm
- Package depth: 23.2 mm
- Package height: 440 mm
- Package weight: 24.7 kg
Logistics data
- Products per pallet: 12 pc(s)
- Pallet net height: 151.5 cm
- Pallet net length: 100 cm
- Pallet net width: 120 cm
- Pallet net weight: 312 kg
- Harmonized System (HS) code: 85078000
- Master (outer) case width: 560 mm
- Master (outer) case length: 710 mm
- Master (outer) case height: 230 mm
- Master (outer) case gross weight: 26 kg
- Products per master (outer) case: 1 pc(s)
