Description

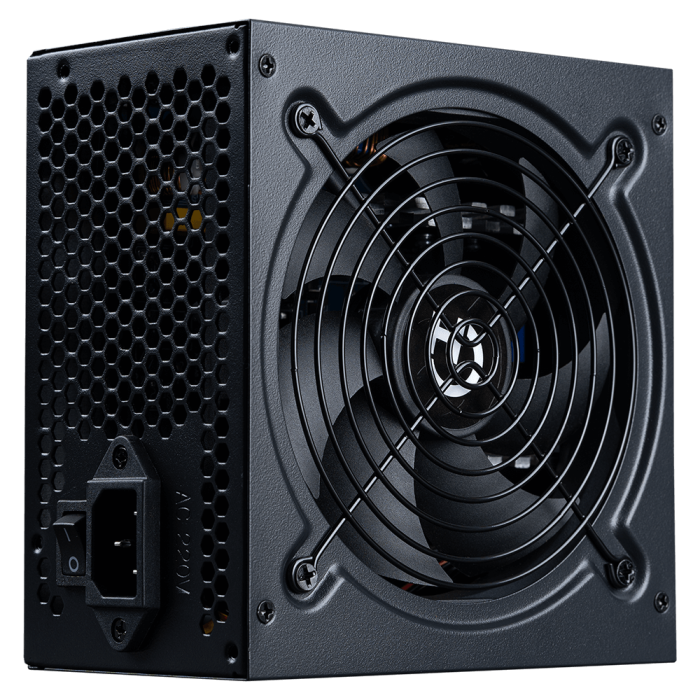

Hiditec RL550, 550 W, 200 - 240 V, 50/60 Hz, Active, 100 W, 540 W
Specifications
Power
- AC input frequency: 50/60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 540 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Efficiency: 87%
- Total power: 550 W
- AC input voltage: 200 - 240 V
- Max output current (+3.3V): 20 A
- Max output current (+12V): 45 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power cable length: 50 cm
- SATA power cable length: 130, 300 mm
- Peripheral (Molex) power cable length: 130, 300 mm
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 65 cm
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 4
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 1
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- Illumination: No
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 85 mm
- Height: 140 mm
- Weight: 1.75 kg
Packaging data
- Package type: Box
