GIGABYTE B760M GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 1
More info
Brand: GIGABYTE
134.12 €
111.77 €
without VAT
Stock available: 71 units.
Get it
on the
September 23
/
September 24
SKU:
117305
PRC:
611672
EAN:
4719331872953
Description

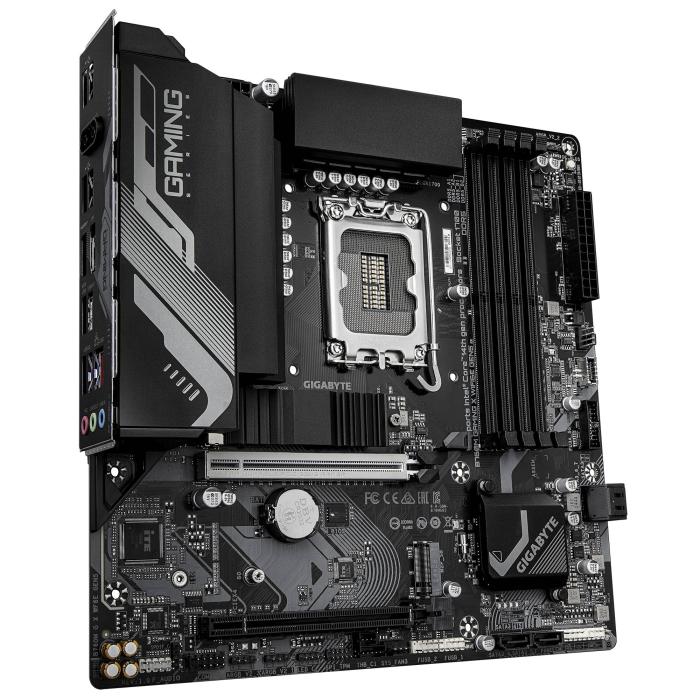

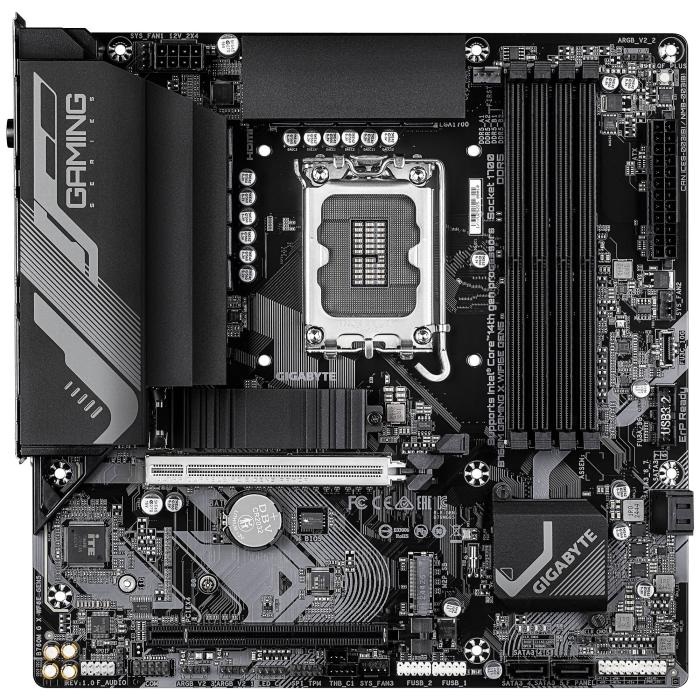

GIGABYTE B760M GAMING X WIFI6E GEN5 Motherboard for LGA 1700 socket, compatible with 14th Gen. Intel Core processors, featuring an 8+1+1 phase VRM and supporting up to 256 GB of DDR5 memory across its four DIMM slots, with maximum speeds of 5600 MHz and support for ECC and non-ECC profiles in dual-channel mode. This model includes two M.2 slots with PCIe 4.0 interface, plus four SATA III ports, and allows RAID 0, 1, 5, and 10 configurations among its six compatible storage drives. For network connectivity, it incorporates Wi-Fi 6E and 2.5 GbE LAN, along with USB 3.2 Gen 1 ports, offering a balanced set for building a desktop system with current components.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5
- Supported processor sockets: LGA 1700
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600, 5200, 4800, 4400 MHz
- Supported memory clock speed (max): 5600 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2304 pixels
- HDCP: Yes
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 3
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- Thunderbolt headers: 2
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4

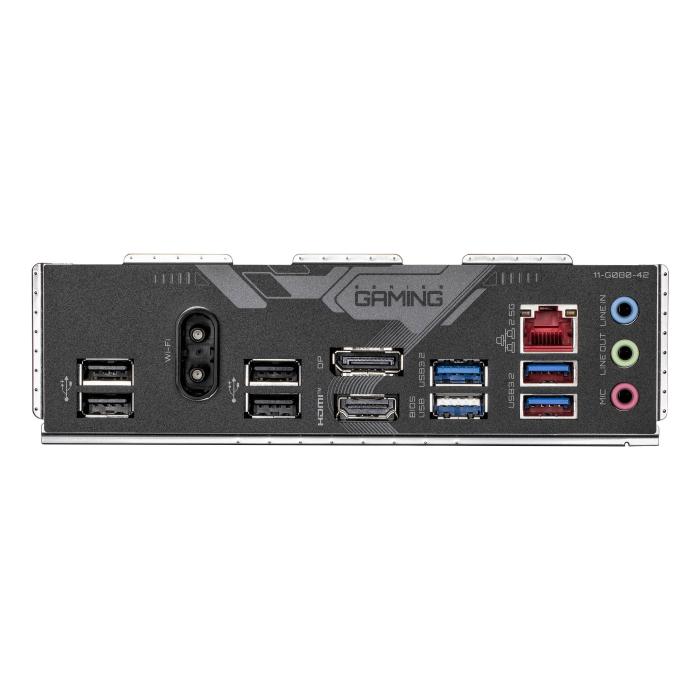

Rear panel I/O ports
- USB 2.0 ports quantity: 5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.2
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 2
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX210
- Bluetooth: Yes
- Bluetooth version: 5.3
Features
- Audio output channels: 7.1 channels
- Product colour: Dark brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Motherboard chipset: Intel B760
- Audio chip: Realtek ALC897
Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 270 mm
- Package depth: 268 mm
- Package height: 68 mm
- Package weight: 1.6 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
Packaging content
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
- Weight: 1.42 kg
Technical details
- Warranty period: 3 year(s)
