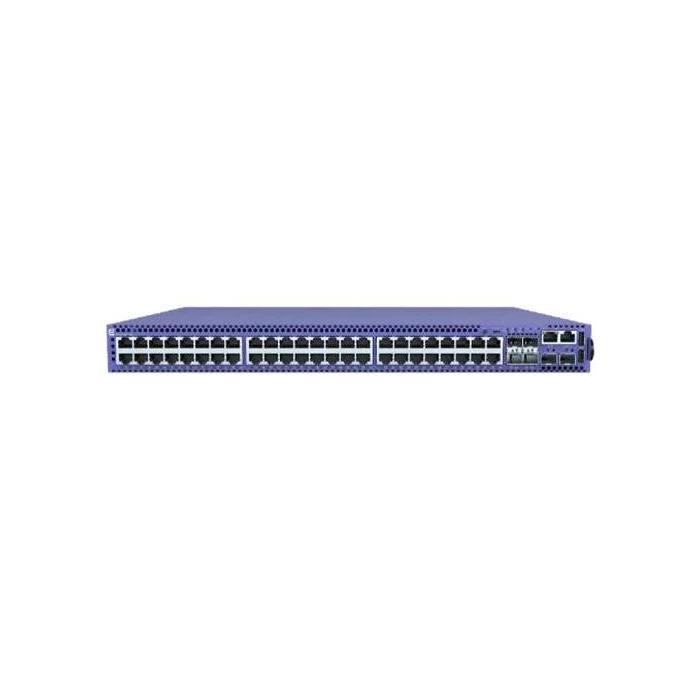

Extreme networks 5420F-48T-4XE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Blue
More info
Brand: EXTREME NETWORKS
6,783.47 €
SKU:
116582
PRC:
468951
EAN:
644728051953
PN:
5420f-48t-4xe
Description
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 48
- SFP module slots quantity: 2
- SFP+ module slots quantity: 4
- Number of management ports: 1 pc(s)
- Console port: RJ-45/Micro-USB
- USB 2.0 ports quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- IP routing: Yes
- Half duplex: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-sensing: Yes
- VLAN support: Yes
- Number of VLANs: 4094
Data transmission
- Switching capacity: 256 Gbit/s
- Forwarding rate: 190.5 Mpps
- MAC address table: 32000 entries
- Number of queues: 8
- Number of IP interfaces: 1533
Security
- Access Control List (ACL): Yes
- Security algorithms: 128-bit AES, 256-bit AES
Multicast features
- IPv4 multicast entries: 6000
Protocols
- Routing protocols: OSPF
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Blue
- LED indicators: Yes
Performance
- Physical stacking (units): 2
- Noise level: 35.3 dB
Power
- Power source: AC
- Power supply included: Yes
- Redundant power supply (RPS) support: Yes
- Number of power supply units: 1
- AC input voltage: 100 - 240 V
- AC input frequency: 47/63 Hz
- Power consumption (max): 75 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 255 BTU/h
Weight & dimensions
- Width: 442 mm
- Depth: 287 mm
- Height: 43.2 mm
- Weight: 4.64 kg
Packaging content
- Rack mount kit: Yes
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), KCC, REACH, RoHS, WEEE
