Description

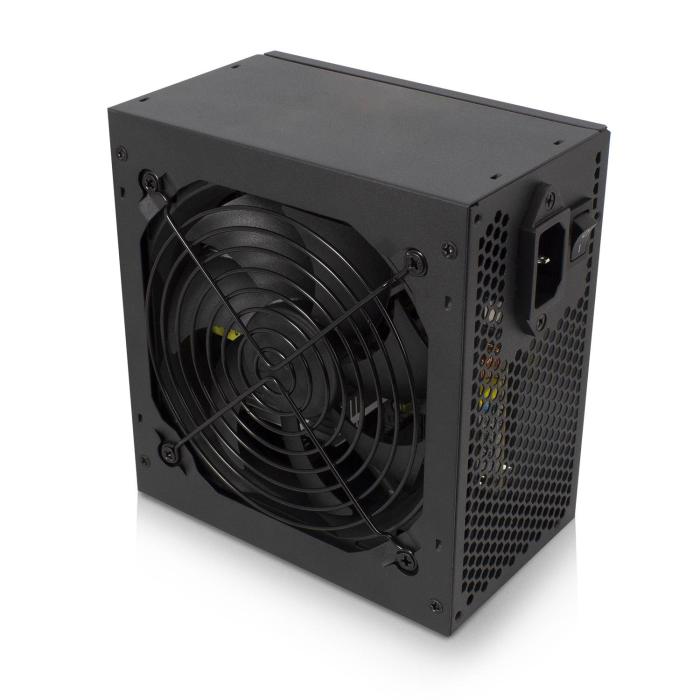

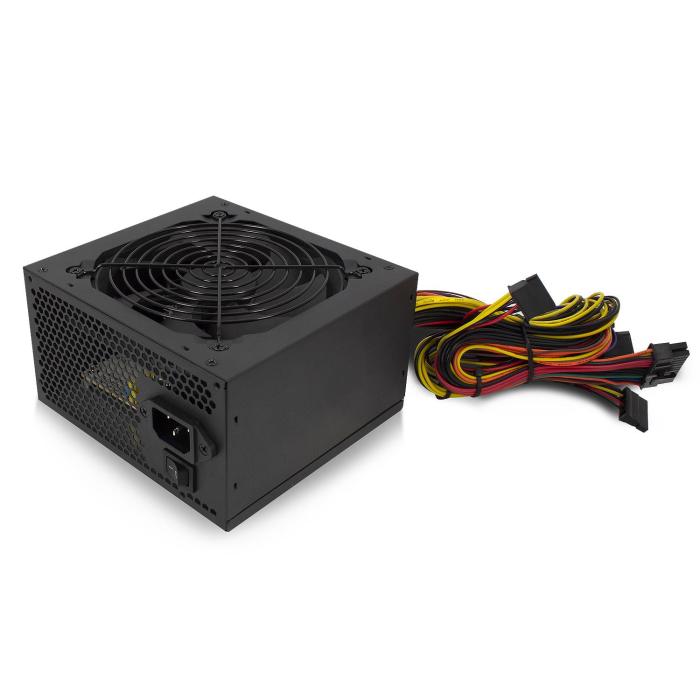

The Ewent EW3908 power supply unit delivers a total power of 600 W with active power factor correction and an AC input voltage range of 160 to 270 V. It incorporates two 12 V output rails delivering 15 A each, plus 25 A on the 3.3 V line and 28 A on the 5 V line to power the different components of the system. It includes protection features against overcurrent, overload, overheating and short circuit. As for connectivity, it has a 24-pin ATX connector with a 40 cm cable, an 8-pin EPS connector, a PCI Express connector with a 30 cm cable and two 4-pin Molex peripheral connectors with a 300 mm cable, plus 400 mm SATA connectors and a connector for a floppy disk drive. Its compact format measures 150 x 85 x 140 mm (width x height x depth) and weighs 1.06 kg. All of this in black.
Specifications
Power
- Total power: 600 W
- AC input voltage: 160 - 270 V
- Power Factor Correction (PFC) type: Active
- Max output current (+3.3V): 25 A
- Max output current (+12V1): 15 A
- Max output current (+12V2): 15 A
- Max output current (+5V): 28 A
- Power protection features: Over current, Overcharge, Overheating, Overload, Short circuit
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 40 cm
- Number of SATA power connectors: 4
- SATA power cable length: 400 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 300 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 1
- PCI Express power cable length: 30 cm
- ATX Power connector (24-pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 30 cm
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.21
- EPS version: 2.92
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 20 - 80%
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 85 mm
- Weight: 1.06 kg
Packaging data
- Package width: 230 mm
- Package depth: 95 mm
- Package height: 166 mm
- Package weight: 1.62 kg
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
