Description

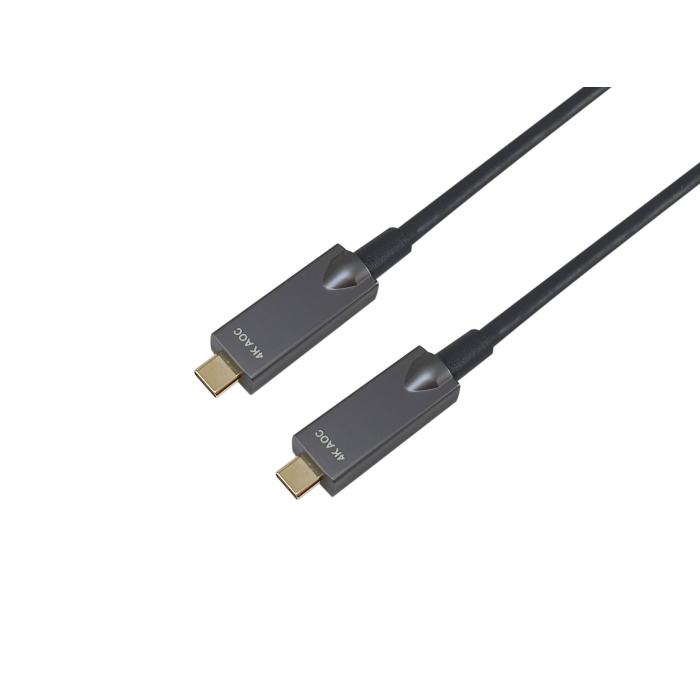

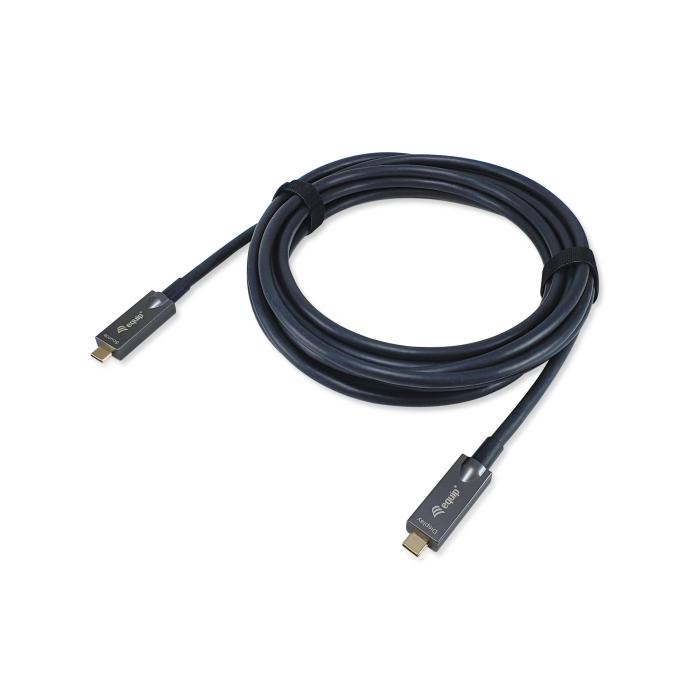

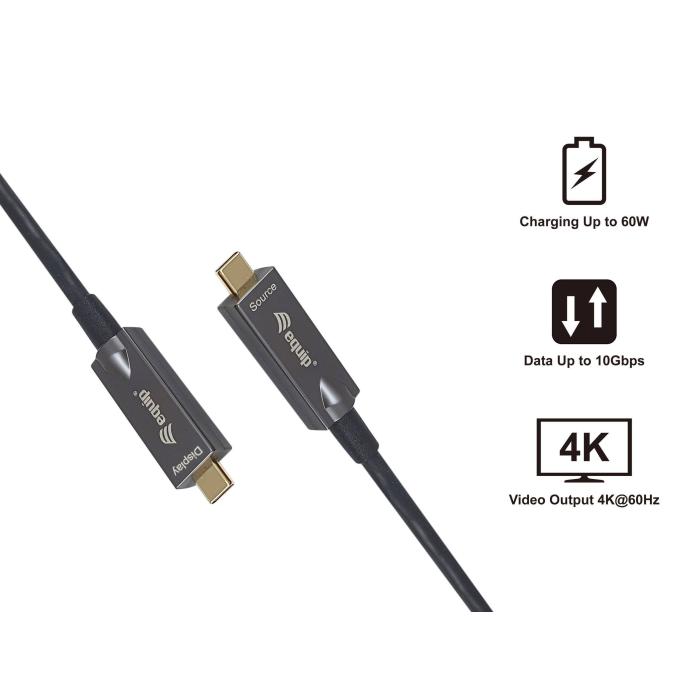

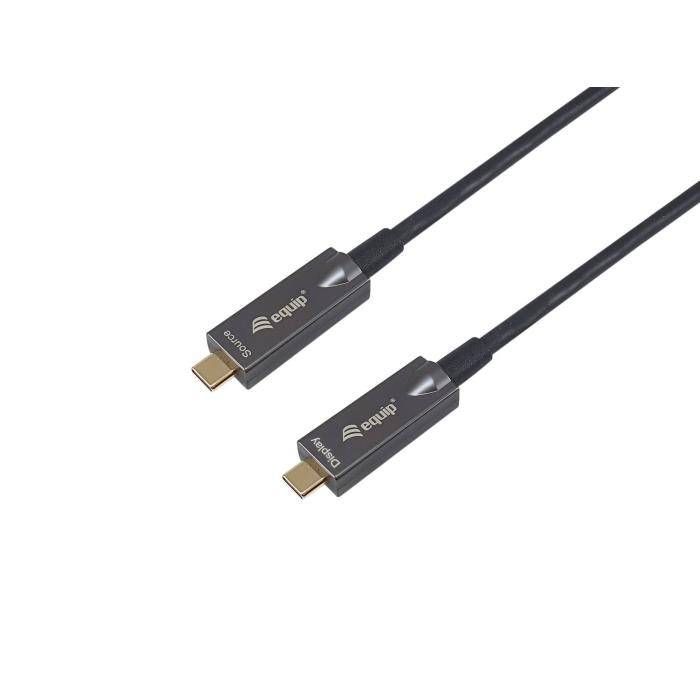

Active optical USB-C to C cable from EQUIP, in its 5 m cable variant and black colour, connects devices with USB Type-C to transmit video, data and power through a single conduit. It reaches a maximum data transfer speed of 10000 Mbit/s and a transfer rate of up to 10 Gbit/s under the USB 3.2 Gen 2 standard. It incorporates USB Type-C DisplayPort Alternate Mode, which allows sending a video signal with a maximum resolution of 3840 x 2160 pixels. It supports HDR and DSC screen stream compression to play high-definition content, as well as HDCP in its version 2.2. USB Power Delivery reaches up to 60 W, enough to power compatible laptops and peripherals. Its two male connectors are straight format and the cable jacket is PVC. The assembly has a weight of 280 g, in line with its length and insulation.
Specifications
Features
- USB version: USB 3.2 Gen 2 (3.1 Gen 2)
- Connector 1: USB C
- Connector 2: USB C
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Maximum data transfer rate: 10 Gbit/s
- Product colour: Black
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 60 W
- USB Type-C DisplayPort Alternate Mode: Yes
- Maximum resolution: 3840 x 2160 pixels
- Maximum refresh rate: 240 Hz
- Display Stream Compression (DSC): Yes
- High Dynamic Range (HDR) supported: Yes
- HDCP: Yes
- HDCP version: 2.2
Power
- Output voltage: 20 V
- Output current (max): 3 A
Weight & dimensions
- Cable length: 5 m
- Weight: 280 g
Packaging data

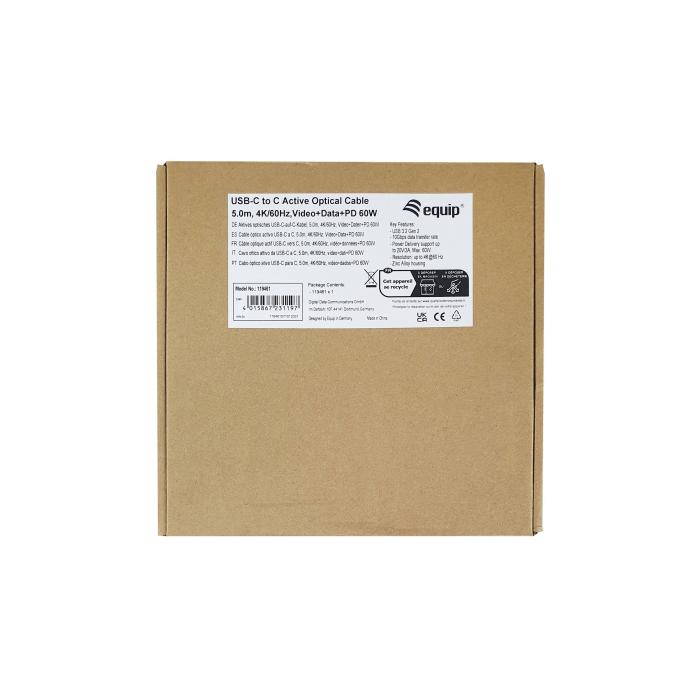

- Package type: Box
- Package width: 165 mm
- Package depth: 55 mm
- Package height: 165 mm
Packaging content
- Quantity per pack: 1 pc(s)
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, RoHS, UKCA
Logistics data
- Products per master (outer) case: 20 pc(s)
- Master (outer) case width: 300 mm
- Master (outer) case length: 280 mm
- Master (outer) case height: 490 mm
- Country of origin: China
