Description

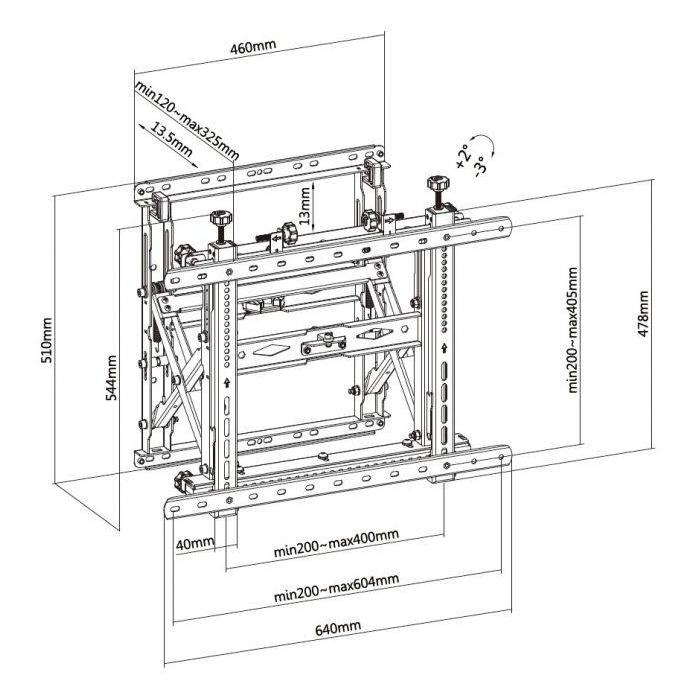

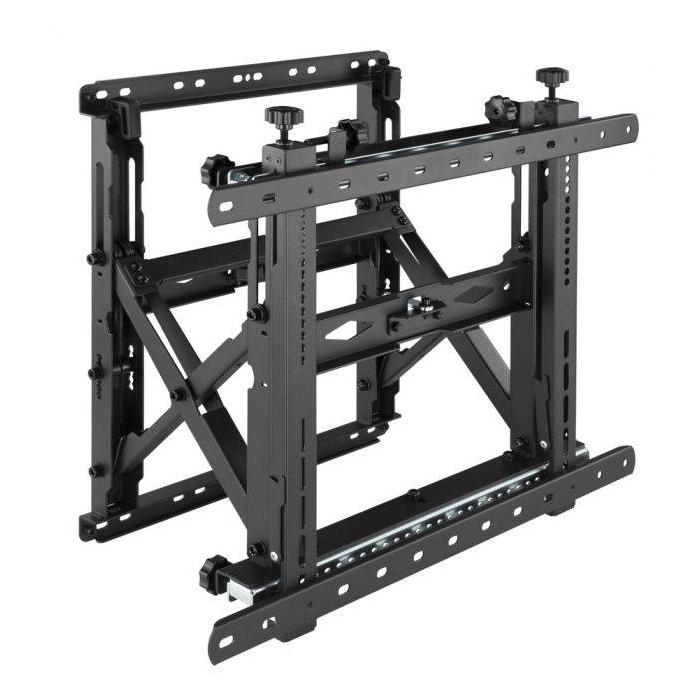

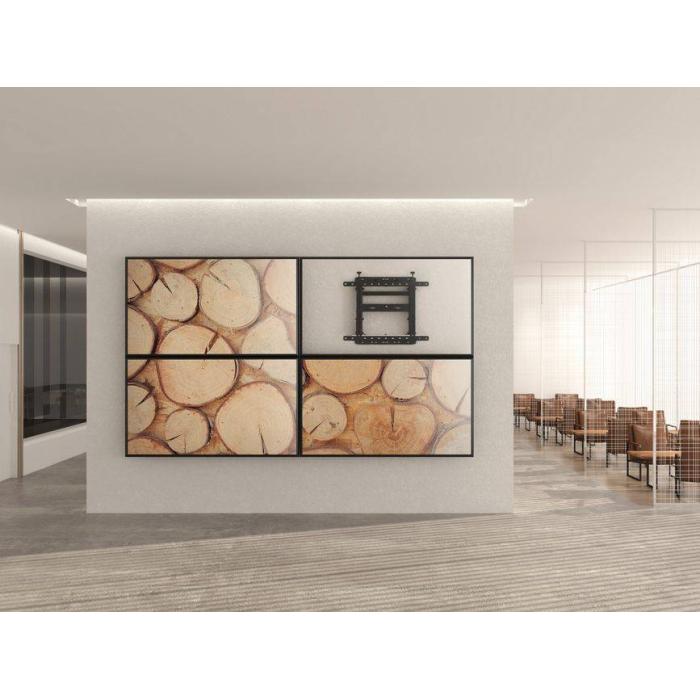

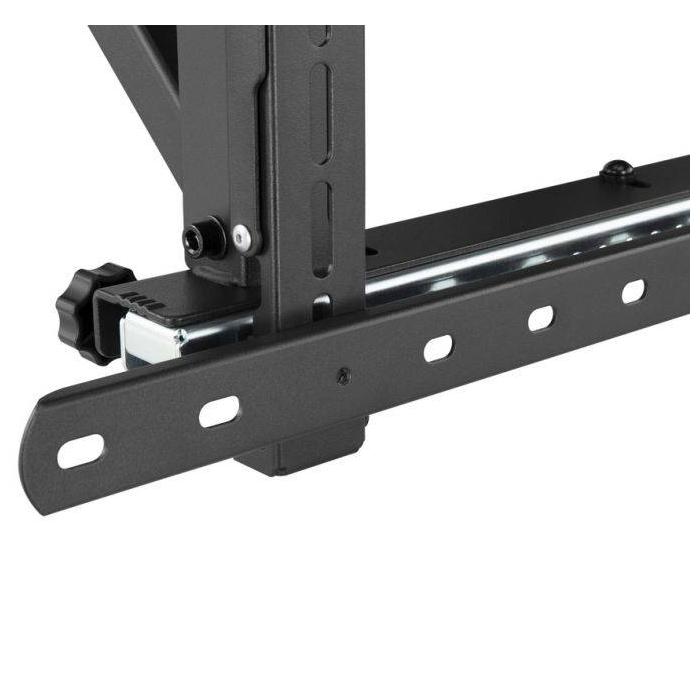

The Equip pop-out video wall bracket is suitable for a single screen between 114.3 cm (45") and 177.8 cm (70"), with a maximum weight of 70 kg. Its mounting system supports VESA interfaces from 200 x 200 up to 600 x 400 mm, covering most common formats. The distance from the wall is adjustable between 12 and 32.5 cm, so you can move the television closer or further away depending on the available space. The adjustable tilt angle ranges from -3 to 2°, which helps to correct slight viewing imbalances. It includes cable management to keep the routing tidy, and its anti-theft function provides added security. The casing combines metal and plastic in black, with dimensions of 325 x 640 x 544 mm (width x height x depth) and a weight of 13.2 kg.
Specifications
Mounting
- Maximum weight capacity: 70 kg
- Minimum screen size: 114.3 cm (45")
- Number of displays supported: 1
- Maximum screen size: 177.8 cm (70")
- Suitable for TV: Yes
- Mounting type: Wall
- Maximum VESA mount: 600 x 400 mm
- Panel mounting interface: 200 x 200, 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 600 x 400
- Distance to the wall (min): 12 cm
- Distance to the wall (max): 32.5 cm
Ergonomics
- Tilt adjustment: Yes
- Tilt angle range: -3 - 2°
- Cable management: Yes
Design
- Housing material: Metal, Plastic
- Product colour: Black
- Anti-theft function: Yes
Weight & dimensions
- Width: 325 mm
- Depth: 544 mm
- Height: 640 mm
- Weight: 13.2 kg
Packaging data
- Package width: 566 mm
- Package depth: 135 mm
- Package height: 585 mm
- Package weight: 15.1 kg
Packaging content
- Screws included: Yes
- Manual: Yes
Other features
- Compliance certificates: RoHS
Logistics data
- Master (outer) case width: 566 mm
- Master (outer) case length: 135 mm
- Master (outer) case height: 585 mm
- Master (outer) case gross weight: 15.1 kg
- Products per master (outer) case: 1 pc(s)
- Harmonized System (HS) code: 85299097
