Description

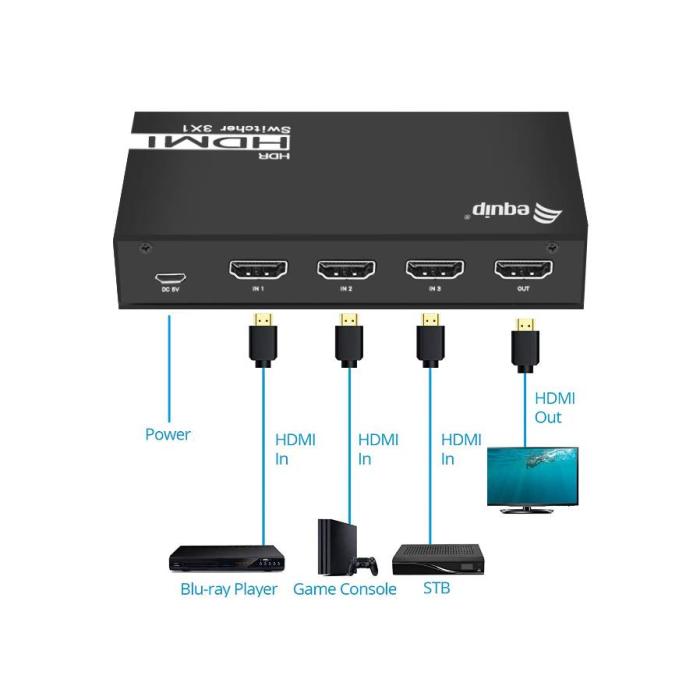

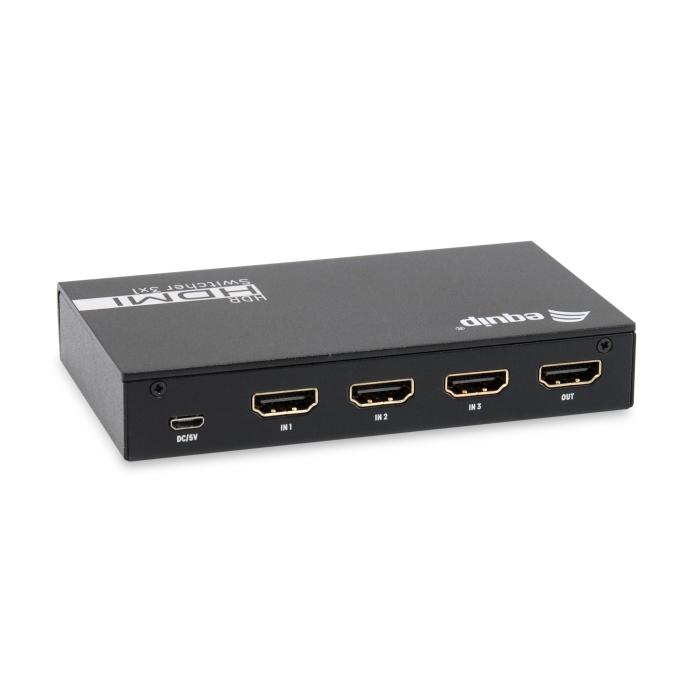

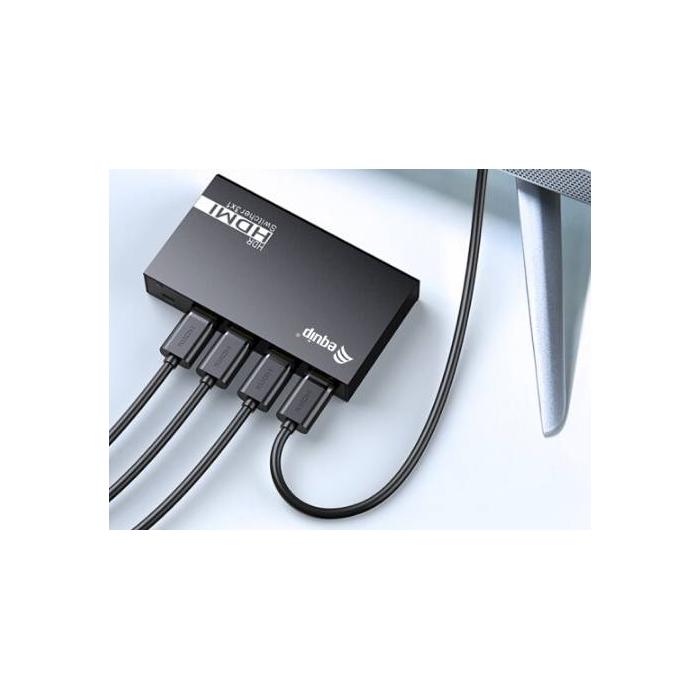

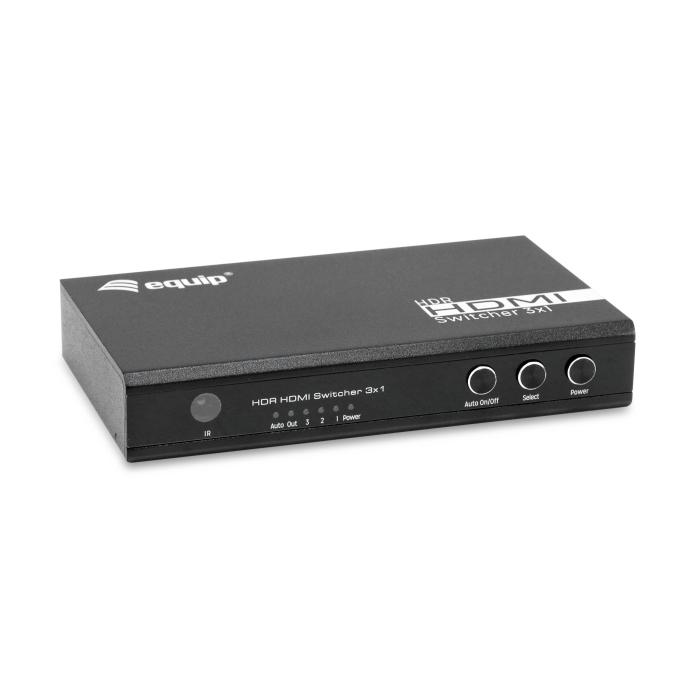

The EQUIP 332725 HDMI video switch, in black, switches between three HDMI sources and sends the signal to a single output. It supports HDMI 2.0 and reaches resolutions of 3840 x 2160 with a refresh rate of up to 60 Hz, compatible with 4K Ultra HD and 3D content. It incorporates HDCP 2.2 protection to play protected content without issues. It handles audio of up to 7.1 channels and Dolby Vision, Dolby TrueHD, Dolby Digital 5.1 Surround Sound and DTS-HD technologies. Its aluminium casing, with dimensions of 70 x 125 x 20 mm (width x height x depth), gives it a compact and resistant format to integrate into any installation. It has CE certification. Connect your consoles, players or set-top boxes and switch between them without changing cables.
Specifications
Ports & interfaces
- Video port type: HDMI
- HDMI version: 2.0
- HDMI in: 3
- Number of HDMI outputs: 1
Features
- Material: Aluminium
- Product colour: Black
- HDCP: Yes
- Maximum refresh rate: 60 Hz
- Supported graphics resolutions: 3840 x 2160
- Audio output channels: 7.1 channels
- 3D: Yes
- HD type: 4K Ultra HD
- Dolby technologies: DTS-HD, Dolby Digital 5.1 Surround Sound, Dolby TrueHD, Dolby Vision
- HDCP version: 2.2
Certificates
- Certification: CE
Weight & dimensions
- Width: 70 mm
- Depth: 20 mm
- Height: 125 mm
Packaging data

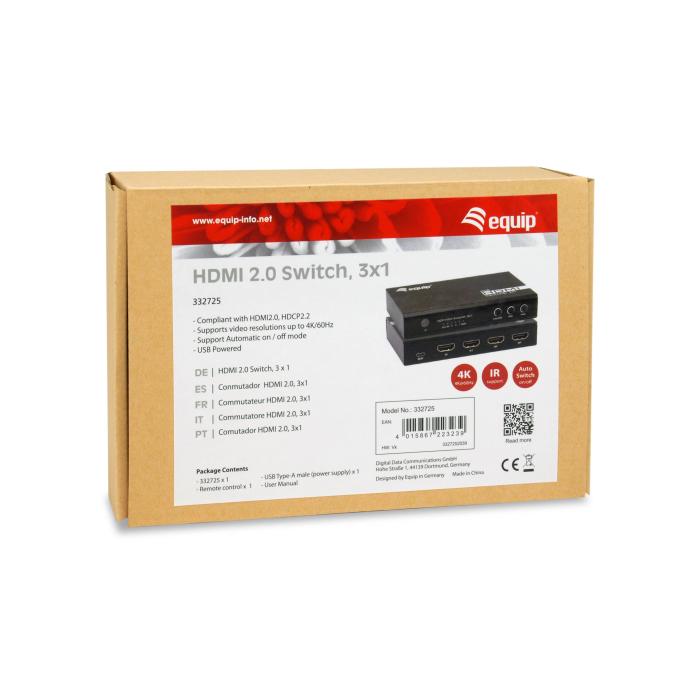

- Package type: Box
- Package width: 123 mm
- Package depth: 50 mm
- Package height: 187 mm
- Package weight: 290 g
Packaging content
- Remote control included: Yes
- Manual: Yes
- Cables included: USB
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 450 mm
- Master (outer) case length: 305 mm
- Master (outer) case height: 490 mm
- Master (outer) case gross weight: 12.4 kg
- Products per master (outer) case: 40 pc(s)
- Country of origin: China
