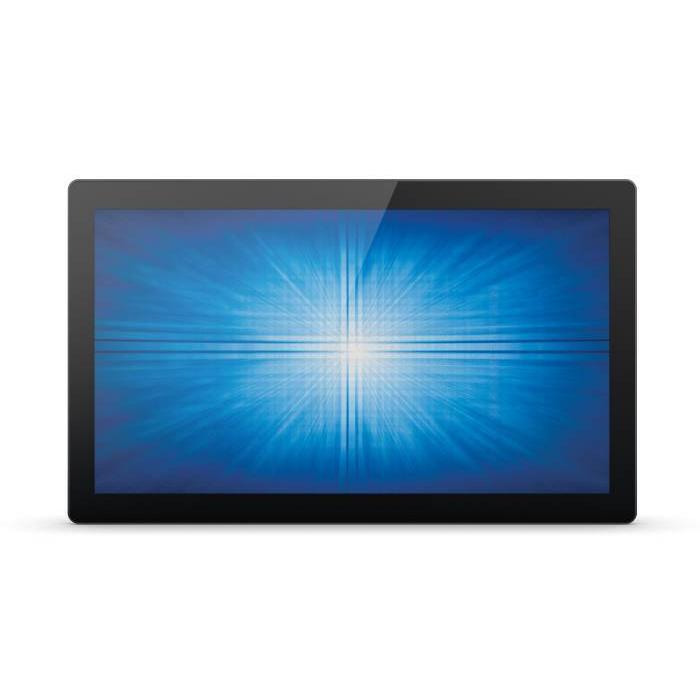

Elo Touch Solution 2294L 21.5'' 1920 x 1080pixels Multi-touch Kiosk Black touch screen monitor
Elo Touch Solution 2294L, 54.6 cm (21.5"), 14 ms, 225 cd/m², LCD/TFT, 1000:1, Projected capacitive system.
More infoBrand: ELO TOUCH SOLUTION
633.72 €Stock available: 0 units.
Unavailable
SKU:
114422
PRC:
198090
EAN:
815335025983
PN:
E330620
Description
Elo Touch Solution 21.5" (54.6 cm) touch screen monitor with 1920 x 1080 pixels screen resolution and 16:9 aspect ratio. Its LCD/TFT panel with LED backlighting offers a brightness of 225 cd/m² and a typical contrast ratio of 1000:1, while the projected capacitive touchscreen system responds with a response time of 14 ms. The screen covers a visible area of 476.64 x 268.11 mm and reproduces 16.78 million colours with horizontal viewing angles of 178°. It incorporates digital frequencies of 30 to 82 kHz horizontal and 50 to 75 Hz vertical, with a rate of 60 Hz and Full High Definition compatibility. It comes in black, weighs 5.1 kg and is designed for use as an interactive kiosk.
Specifications
Display
- Display diagonal: 54.6 cm (21.5")
- Display resolution: 1920 x 1080 pixels
- Display technology: LCD/TFT
- High frequency rate: 60 Hz
- Display number of colours: 16.78 million colours
- Display viewable area (HxV): 476.64 x 268.11 mm
- Digital vertical frequency: 50 - 75 Hz
- Full HD: Yes
- Backlight type: LED
- Aspect ratio: 16:9
- Digital horizontal frequency: 30 - 82 kHz
- LED backlight: Yes
- Vertical scan range: 50 - 75 Hz
- Response time: 14 ms
- Touchscreen technology: Projected capacitive system
- Display brightness: 225 cd/m²
- Contrast ratio (typical): 1000:1
- Viewing angle, horizontal: 178°
- Horizontal scan range: 30 - 82 kHz
- Viewing angle, vertical: 178°
Design
- Colour of product: Black
Performance
- Touch technology: Multi-touch
- Touchscreen type: Kiosk
- Built-in camera: No
- On Screen Display (OSD) languages: CHI (SIMPL), CHI (TR), German, English, Spanish, French, Italian, JPN
- Mean time between failures (MTBF): 50000 h
Ports & interfaces
- USB 2.0 ports quantity: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Ergonomics
- VESA mounting: Yes
- Wall mountable: Yes
- VESA mounting interfaces: 100 x 100 mm
Power
- Power supply type: DC
- Power consumption (typical): 25 W
- Power consumption (off): 0.5 W
Operational conditions
- Storage relative humidity (H-H): 10 - 95%
- Operating relative humidity (H-H): 20 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 0 - 40 °C
Certificates
- RoHS compliance: Yes
Weight & dimensions
- Weight: 5.1 kg
Packaging data
- Package width: 620 mm
- Package depth: 190 mm
- Package height: 423 mm
- Package weight: 8.2 kg
