Description

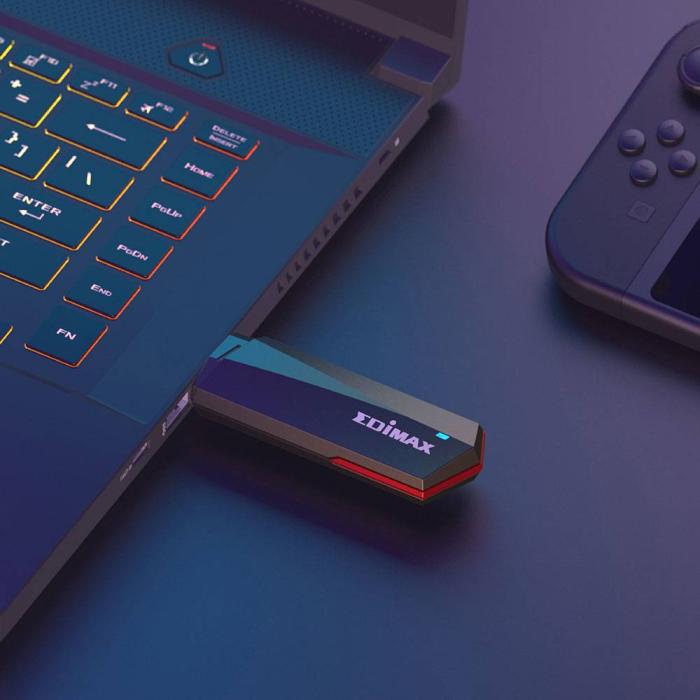

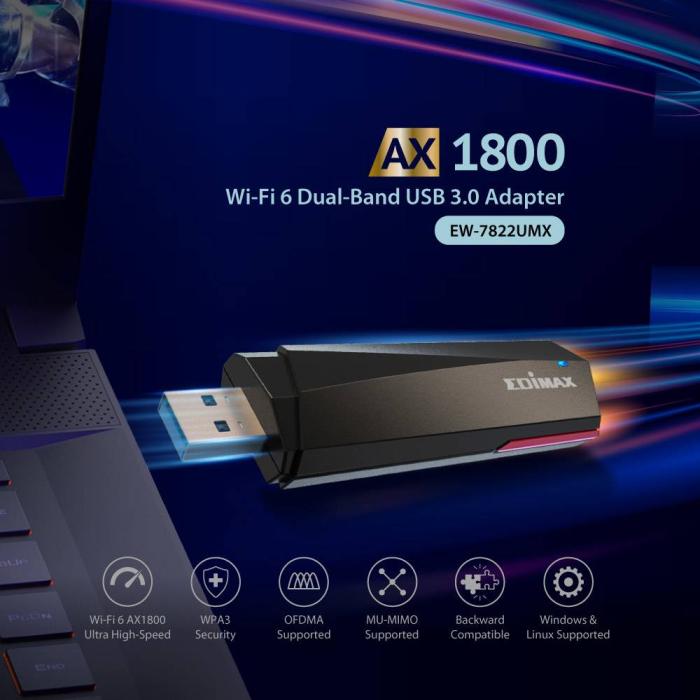

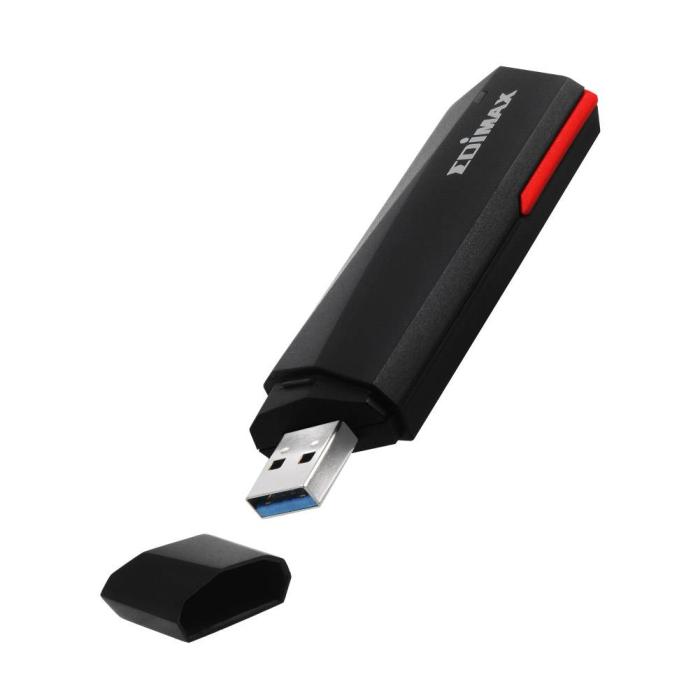

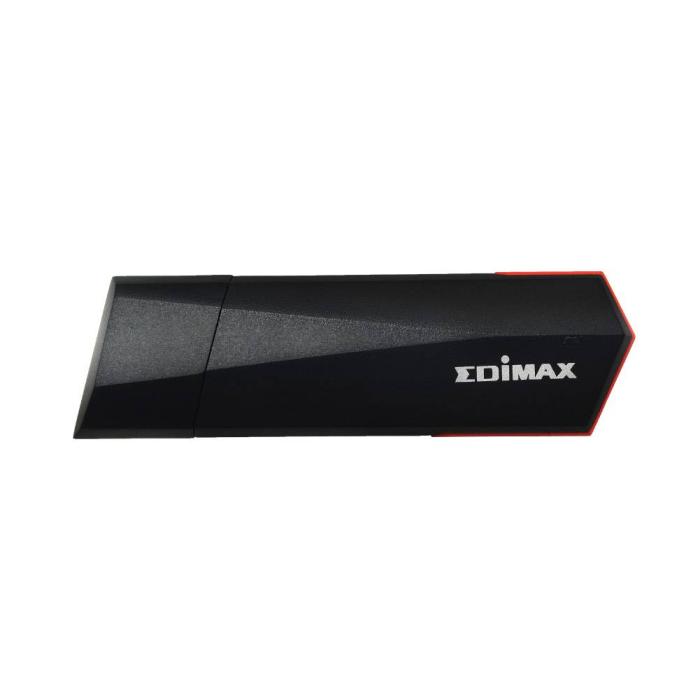

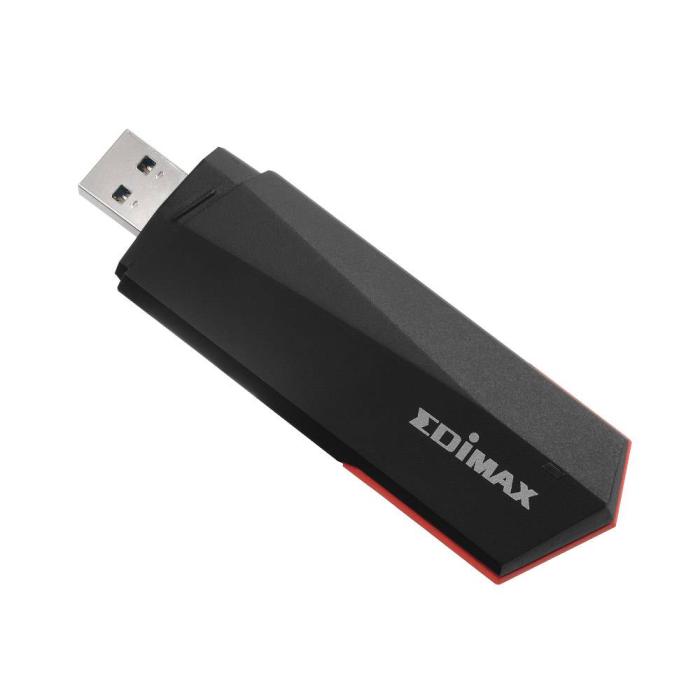

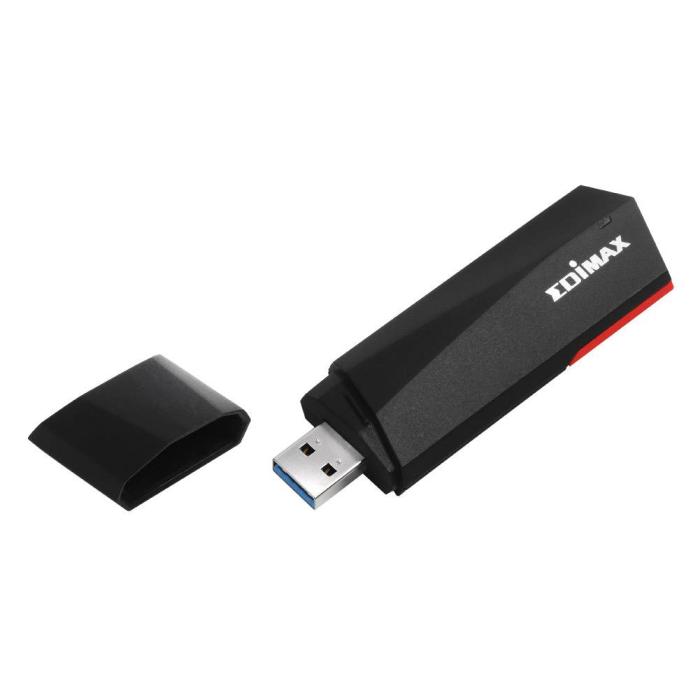

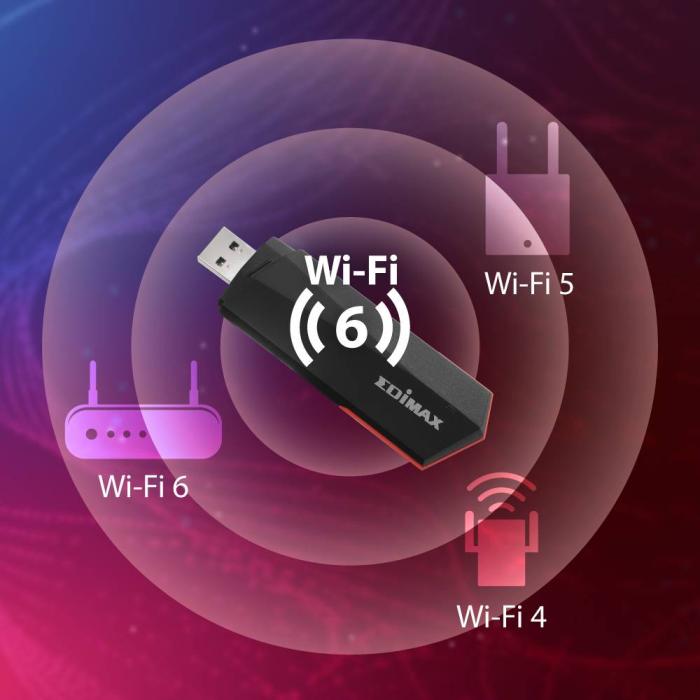

Edimax EW-7822UMX USB wireless adapter in black that allows you to add dual-band wireless connectivity to your PC or laptop via a USB host interface with a right-angle connector form factor. It achieves a maximum data transfer rate of 1201 Mbit/s and uses the Wi-Fi 6 (802.11ax) standard, being compatible with IEEE 802.11a/b/g/n/ac/ax networks. Its internal antenna is integrated into the design and it supports the WEP, WPA, WPA2 and WPA3-SAE security protocols, protecting your connection on the 2.4 GHz and 5 GHz bands.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: USB
- Interface: WLAN
- USB connector form factor: Straight
- USB version: 3.2 Gen 1 (3.1 Gen 1)
Network
- Maximum data transfer rate: 1201 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rates supported: 11, 54, 400, 867 Mbit/s
- Security algorithms: WEP, WPA, WPA2, WPA3-SAE
Design
- Component for: PC/Laptop
- Product colour: Black
- Internal: No
- Antenna: Yes
- Antenna design: Internal
- Antenna type: 2x2
- LED indicators: Activity, Link
- Receiver sensitivity: 2.4GHz: 11b(11M): -85±2dBm 11g(54M): -73±2dBm 11n(40MHz, MCS7): -68±2dBm 11ax(40MHz, MCS11): -57±2dBm 5GHz: 11a(54M):
- Certification: CE, FCC, NCC/BSMI, IC
System requirements
- Compatible operating systems: Windows 10/11 Linux: Kernel 3.13 - 5.11 (supports Fedora & Ubuntu only)
- Windows operating systems supported: Windows 10, Windows 11
- Linux operating systems supported: Linux Kernel 5.11
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 20 - 65 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 30.1 mm
- Depth: 103.6 mm
- Height: 15 mm
- Weight: 25 g
