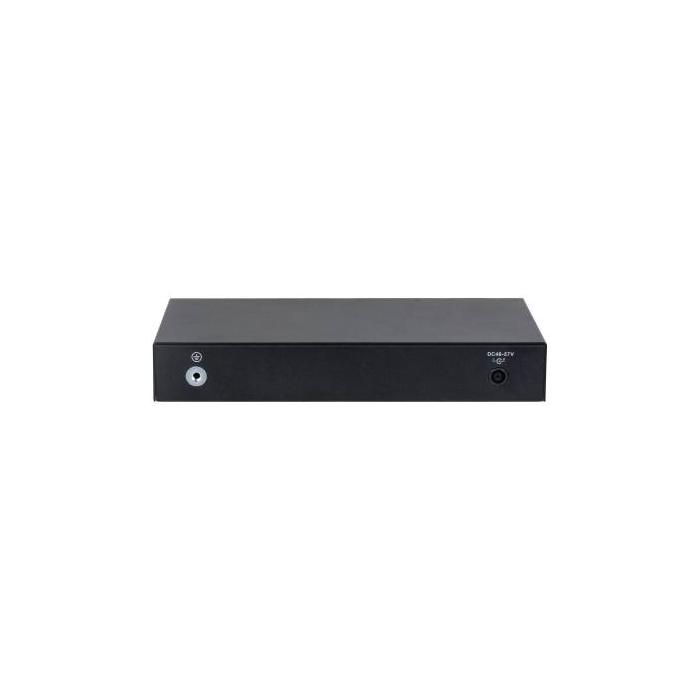

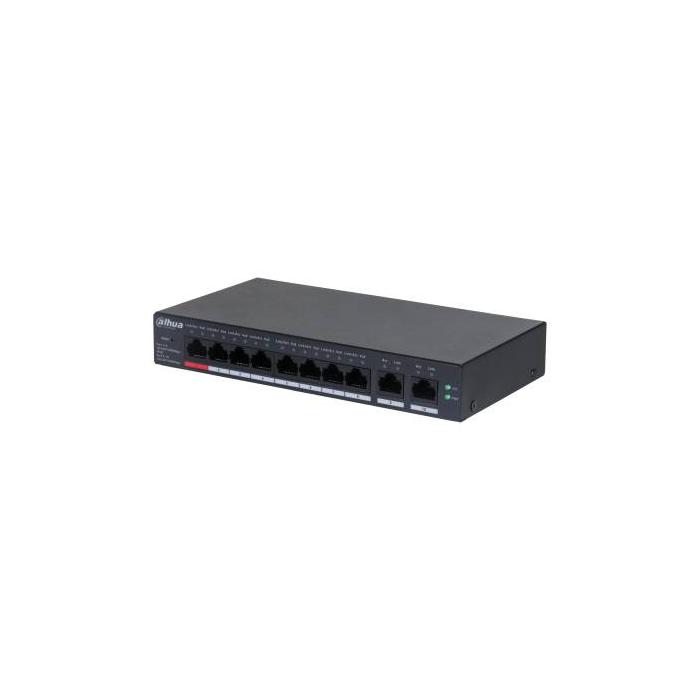

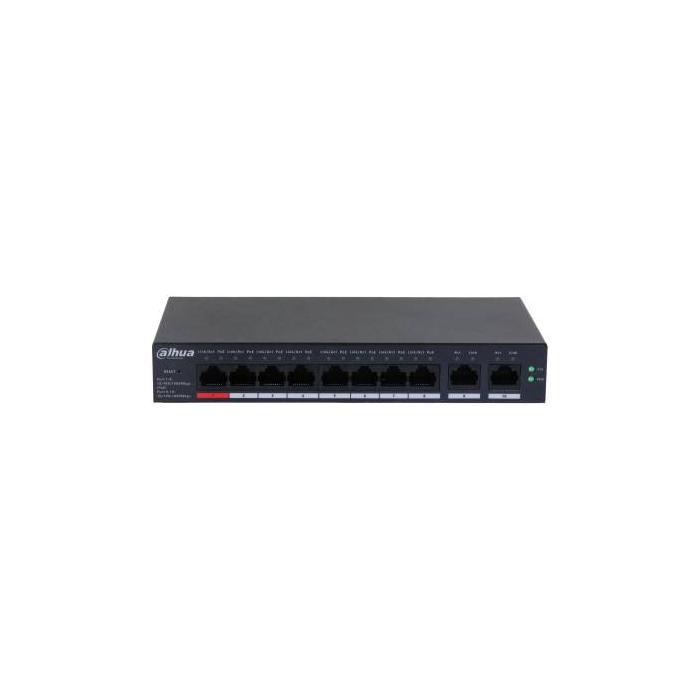

Dahua Technology DH-CS4010-8GT-110 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
More info
Brand: DAHUA TECHNOLOGY
104.97 €
87.47 €
without VAT
Stock available: 10 units.
Get it
on the
September 23
/
September 24
SKU:
103281
PRC:
465812
EAN:
6923172571151
PN:
dh-cs4010-8gt-110
Description
The Dahua Technology DH-CS4010-8GT-110 managed switch in black is an L2 layer network device with ten Gigabit Ethernet RJ-45 ports, ready for speeds of 10, 100 and 1000 Mbit/s over 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling. Its management is carried out via the web and also through the cloud, and it incorporates functions such as QoS, VLAN support with up to 32 VLANs and port-based virtual LAN. It supports flow control and spanning tree protocol, and complies with the IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3bt, 802.3u and 802.3x standards. It offers a switching capacity of 20 Gbit/s and PoE power, which allows network devices that are powered through the Ethernet cable itself to be connected. Its dimensions are 190 x 30 x 106 mm (width x height x depth) and its weight is 550 g.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 10
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Flow control support: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN
- Number of VLANs: 32
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 4.17 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 15000
- Packet buffer memory: 0.5 MB
Security
- DHCP features: DHCP client
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes
Power
- Power source: DC/PoE
- Power supply included: Yes
- Redundant power supply (RPS) support: Yes
- DC input voltage: 54 V
- Input current: 2.22 A
- Power consumption (max): 110 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 8
Operational conditions
- Operating temperature (T-T): -10 - 55 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 190 mm
- Depth: 106 mm
- Height: 30 mm
- Weight: 550 g
Packaging data
- Package width: 256 mm
- Package depth: 244 mm
- Package height: 87 mm
- Package weight: 1.3 kg
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
