Description

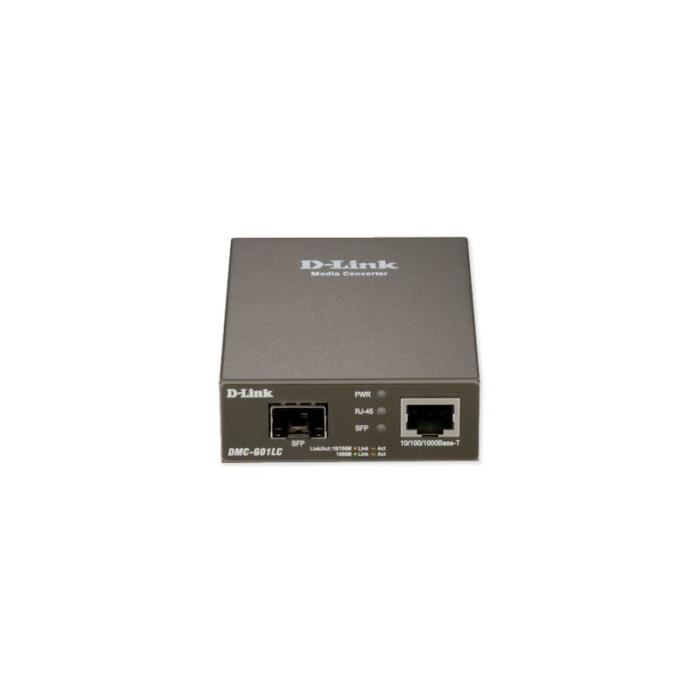

The D-Link DMC-G01LC media converter, in grey, transforms signals between fibre optic and Ethernet to integrate fibre runs into a copper network. With dimensions of 70 x 25 x 95 mm (width x height x depth), its compact format allows it to be placed wherever needed. It features one fibre channel port with SFP connector and one Ethernet LAN (RJ-45) port, so it links both segments with a single cable connection. It reaches a maximum data transfer speed of 1000 Mbit/s and supports Gigabit Ethernet with speeds of 10, 100 and 1000 Mbit/s. It complies with the IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x network standards, and includes Auto MDI/MDI-X to adjust the cabling automatically. Its LED indicators show the link and activity status, and the DC input socket supports an input voltage of 230 - 240 V with an output current of 1 A and an output voltage of 5 V.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Auto MDI/MDI-X: Yes
Performance
- Mean time between failures (MTBF): 506711 h
Features
- Internal: No
- LED indicators: Yes
- Product colour: Grey
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SFP

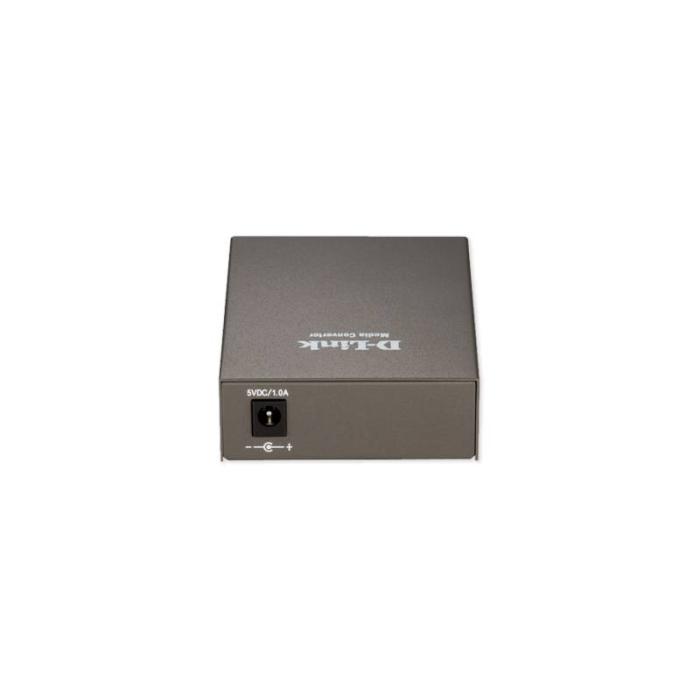

- DC-in jack: Yes
Power
- Input voltage: 230 - 240 V
- Output voltage: 5 V
- Output current: 1 A
Weight & dimensions
- Width: 70 mm
- Depth: 95 mm
- Height: 25 mm
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Certificates
- Safety: LVD, UL/cUL
- Certification: CE, FCC, VCCI, BSMI
