Description

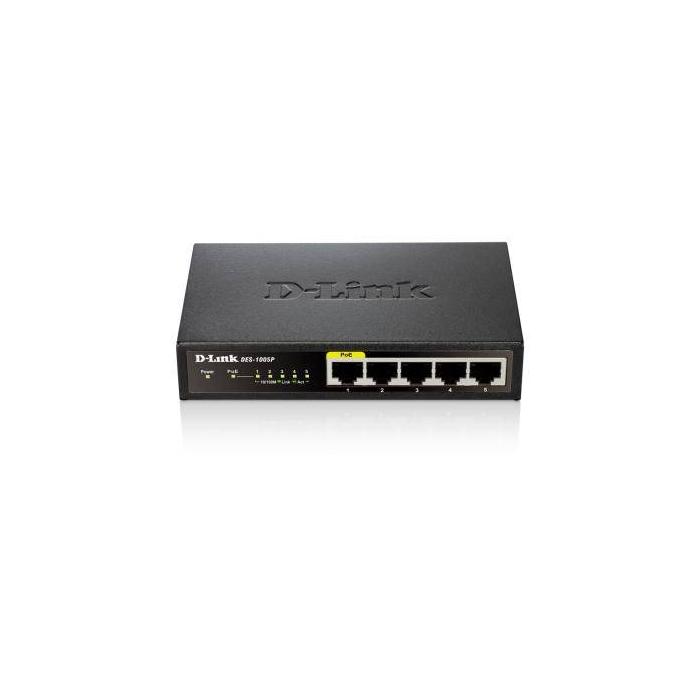

The D-Link DES-1005P switch is an unmanaged black network switch that offers five RJ-45 Ethernet ports to connect devices in local area networks. It incorporates Power over Ethernet in accordance with IEEE 802.3af, so it can power compatible devices through the network cable itself. It works with 100BASE-TX and 10BASE-T copper cabling technology, with supported transfer rates of 10/100 Mbit/s and a switching capacity of 1 Gbit/s. It supports auto MDI/MDI-X, full duplex operation and flow control, as well as storing and forwarding frames with a MAC address table of 2000 entries. Its LED indicators show the link and PoE power status. It complies with the IEEE 802.1p, IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards. With dimensions of 140 x 28 x 85 mm, it integrates easily into home or small office installations.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Copper ethernet cabling technology: 100BASE-TX,10BASE-T
Networking
- Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- 10G support: No
Data transmission
- Supported data transfer rates: 10/100 Mbit/s
- Switching capacity: 1 Gbit/s
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Maximum data transfer rate: 0.2 Gbit/s
Design
- Rack mounting: No
- Colour of product: Black
- LED indicators: Link, PoE
- Certification: RoHS, FCC, ICES-003, cUL
Performance
- Mean time between failures (MTBF): 324616 h
Power
- Power connector: DC-in jack
- Power consumption (typical): 1.8 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 1
Operational conditions
- Operating temperature (T-T): 32 - 104 °F
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 140 mm
- Depth: 85 mm
- Height: 28 mm
Other features
- Packet transfer speed: 148800 pps
- Networking features: Fast Ethernet
- Power LED: Yes
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10,100 Mbit/s
- Ethernet interface type: Fast Ethernet
