Description

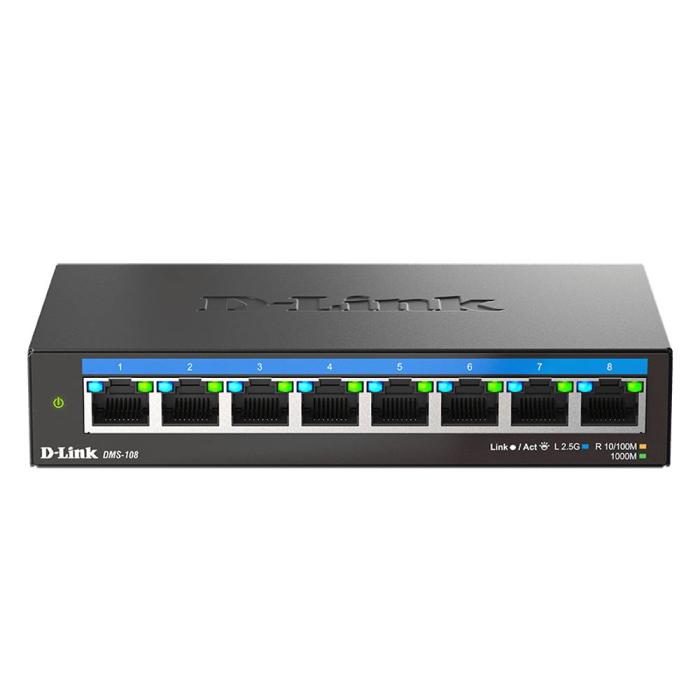

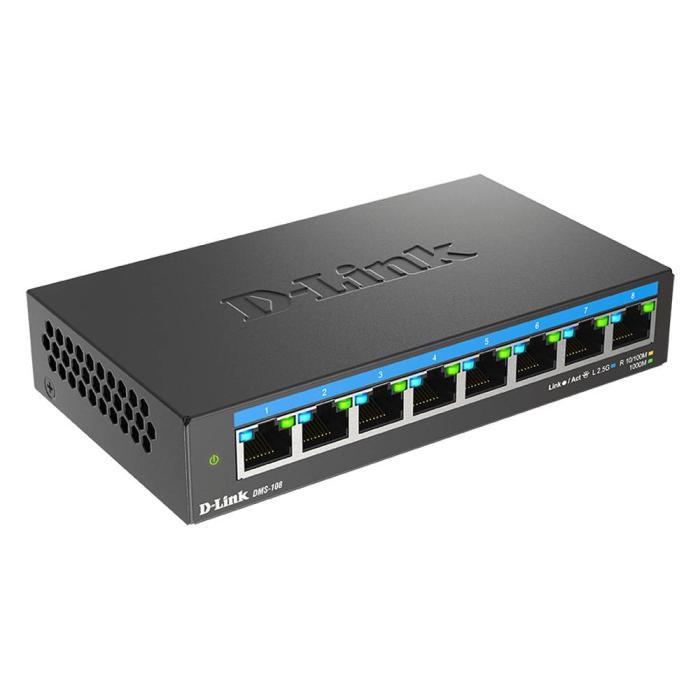

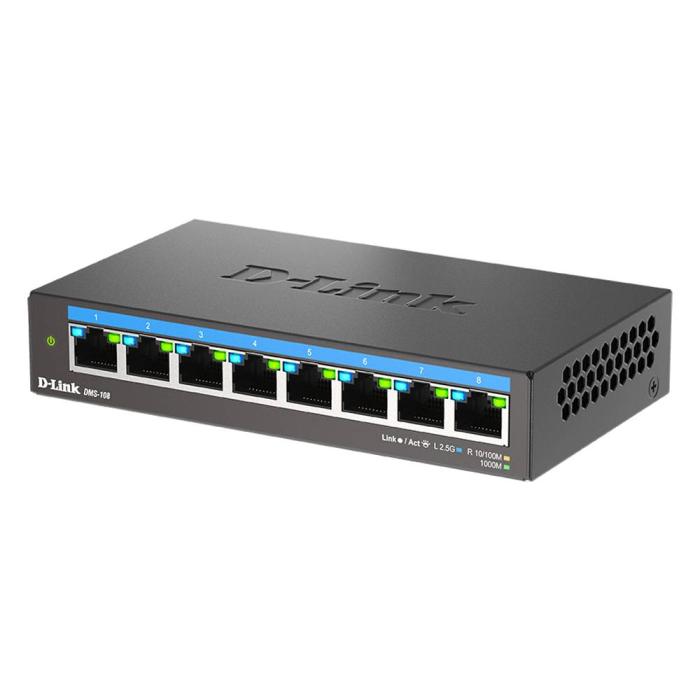

The D-Link DMS-108 switch is an unmanaged Layer 2 device with eight 2.5G Ethernet RJ-45 ports, compatible with speeds of 100, 1000 and 2500 Mbps. Its black design, weighing 343 g and measuring 145 x 28 x 82 mm (width x height x depth), allows it to be easily integrated into any network installation. It incorporates flow control and auto MDI/MDI-X, as well as MAC address auto-learning, which simplifies connecting devices without the need for manual configuration. It supports quality of service (QoS) and IGMP to efficiently manage multicast traffic. Its switching capacity reaches 40 Gbit/s and its forwarding rate is 29.76 Mpps. It features a MAC address table of 4000 entries, 8.1 MB of packet buffer memory and eight transmission queues. It complies with the IEEE 802.1p, 802.3, 802.3ab, 802.3az, 802.3bz, 802.3u and 802.3 standards.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity: 8
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- MAC address auto-learning supported: Yes
Data transmission
- Switching capacity: 40 Gbit/s
- Forwarding rate: 29.76 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Number of queues: 8
- Packet buffer memory: 8.1 MB
Security
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
Design
- Stackable: Yes
- Product colour: Black
- LED indicators: Activity, Link, Power
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 724033.96 h
Power
- Power source: DC
- Power supply included: Yes

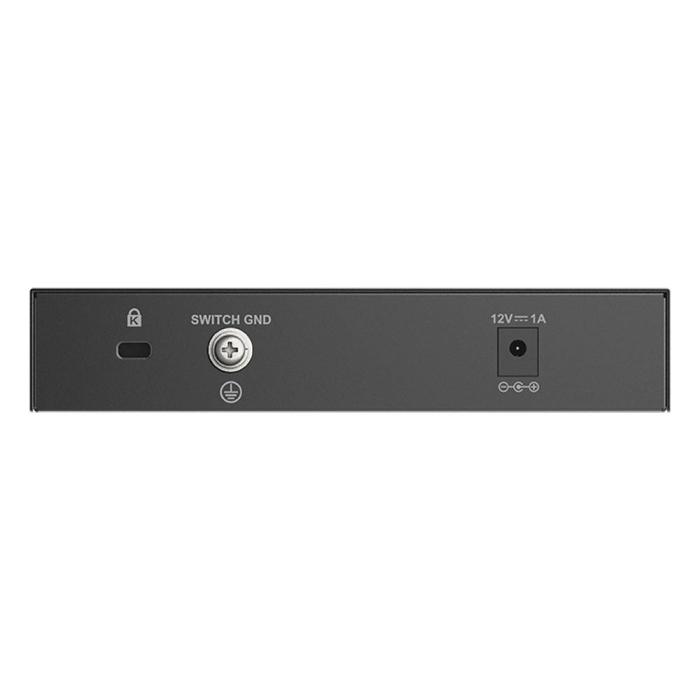

- DC input voltage: 12 V
- Input current: 1 A
- Power consumption (typical): 8.586 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 29.3 BTU/h
Weight & dimensions
- Width: 145 mm
- Depth: 82 mm
- Height: 28 mm
- Weight: 343 g
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: BSMI, CE, Low Voltage Directive (LVD), RoHS
