Description

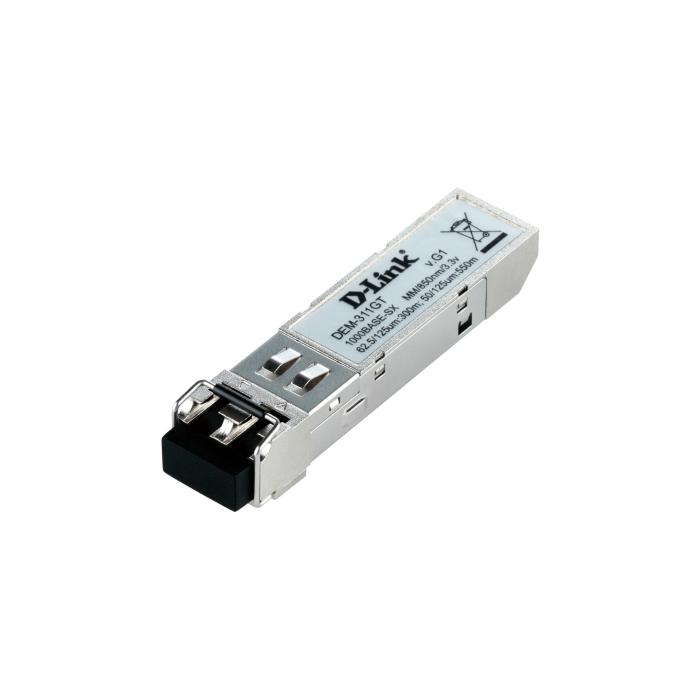

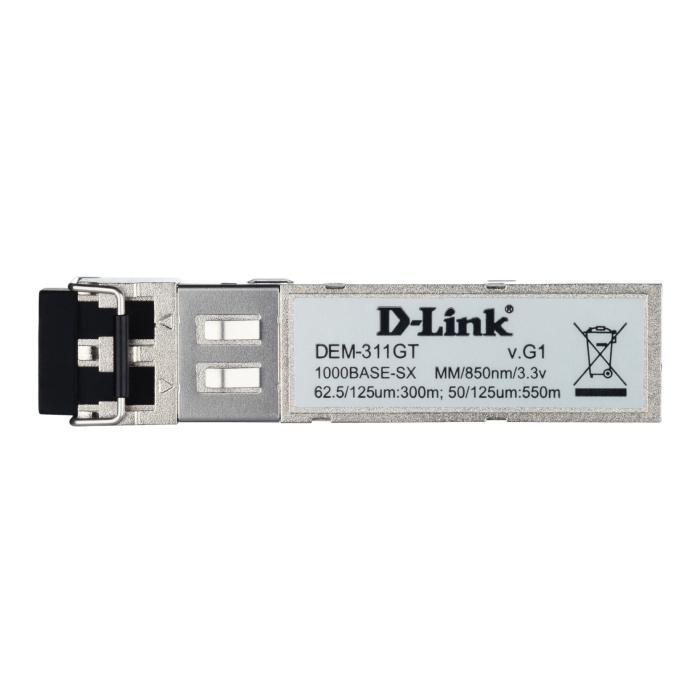

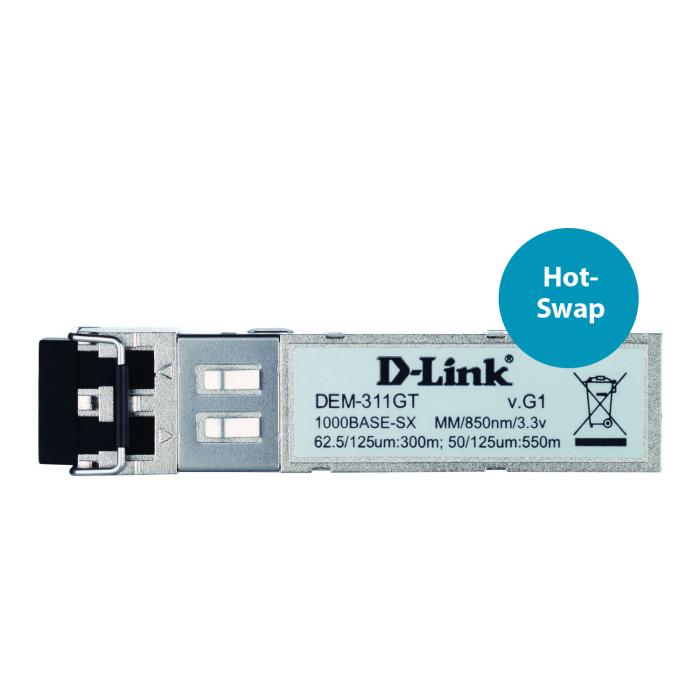

The D-Link DEM-311GT transceiver module is a fibre optic SFP module with a metallic colour and metal housing that reaches a maximum data transfer speed of 1000 Mbit/s. It features an LC fibre optic connector and operates at a wavelength of 850 nm, an SX type SFP transceiver that works over multimode fibre. Its duplex system is full, which allows data to be transmitted and received simultaneously, and it supports a maximum transfer distance of 550 m. It complies with the IEEE 802.3x network standard and with MSA and RoHS certifications. It offers Hot-Plug compatibility, so you can insert or remove it while the equipment is running, and its maximum voltage is 6 V. It supports an operating temperature range of 0 to 40 °C and a storage temperature range of -40 to 85 °C. Its dimensions are 13.8 x 8.5 x 57.2 mm (width x height x depth).
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: No
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: SX
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Networking standards: IEEE 802.3x
- Duplex system: Full
Features
- Product colour: Metallic
- Housing material: Metal
- Hot-Plug support: Yes
Power
- Maximum voltage: 6 V
Certificates
- Certification: MSA, RoHS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 85 °C
Weight & dimensions
- Width: 13.8 mm
- Depth: 57.2 mm
- Height: 8.5 mm
Packaging data
- Package width: 74 mm
- Package depth: 131 mm
- Package height: 49 mm
- Package weight: 64 g
Logistics data
- Shipping (inner) case length: 36 cm
- Shipping (inner) case width: 26 cm
- Shipping (inner) case height: 31 cm
- Shipping (inner) case net weight: 3.2 kg
- Products per shipping (inner) case: 50 pc(s)
- Pallet gross weight (air): 246.8 kg
- Master (outer) cases per pallet (air): 54 pc(s)
- Products per pallet (air): 2700 pc(s)
- Pallet gross length: 102 cm
- Pallet gross width: 122 cm
- Pallet height (air): 199 cm
- Pallet gross weight (sea): 246.8 kg
- Master (outer) cases per pallet (sea): 54 pc(s)
- Products per pallet (sea): 2700 pc(s)
- Pallet height (sea): 199 cm
- Shipping (inner) case gross weight: 4.2 kg
- Harmonized System (HS) code: 85369010
