Brother TD-4520DN label printer Direct thermal 300 x 300 DPI 203 mm/sec Wired Ethernet LAN

Name: Brother TD-4520DN label printer Direct thermal 300 x 300 DPI 203 mm/sec Wired Ethernet LAN
Brand: BROTHER
SKU: 265562
Price: 495.67 EUR
Availability: InStock

More info

Brand: BROTHER

495.67 €

413.06 € without VAT

Stock available: 1 ud.

Get it on the September 25 / September 28

SKU: 83004 PRC: 265562 EAN: 4977766799386 PN: TD-4520DN

Description

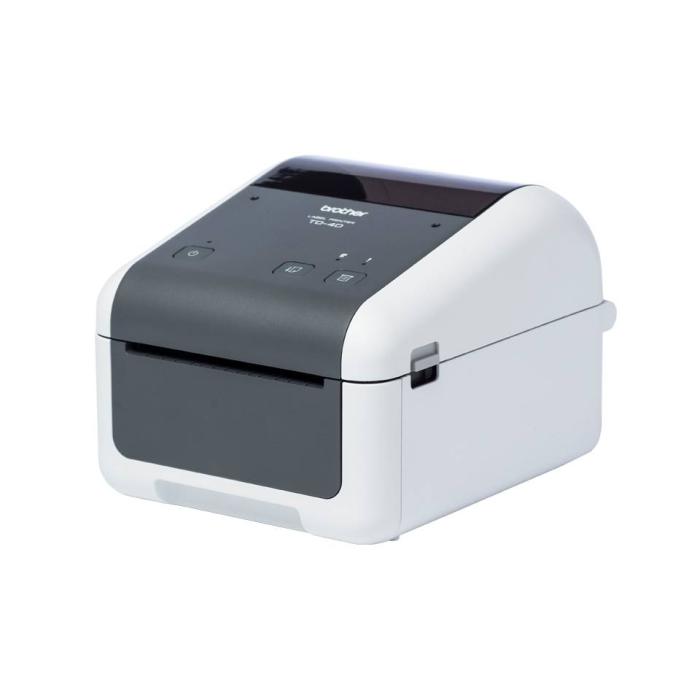

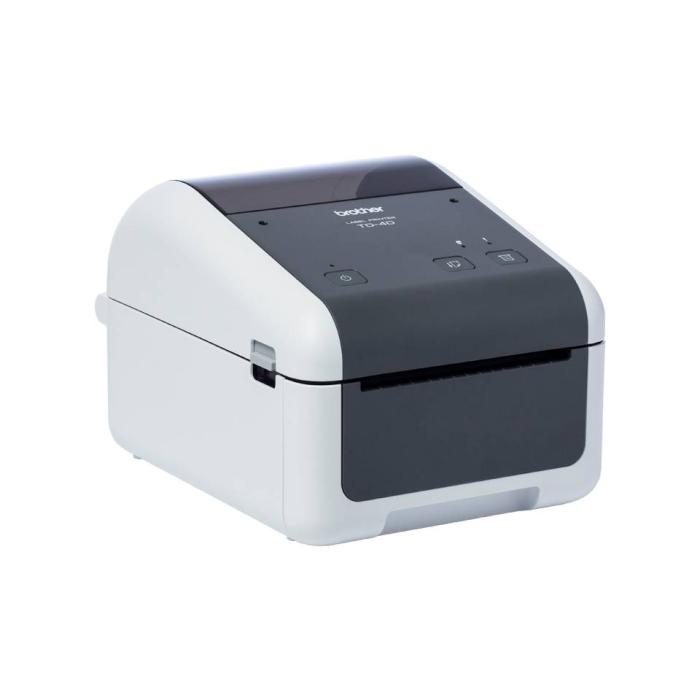

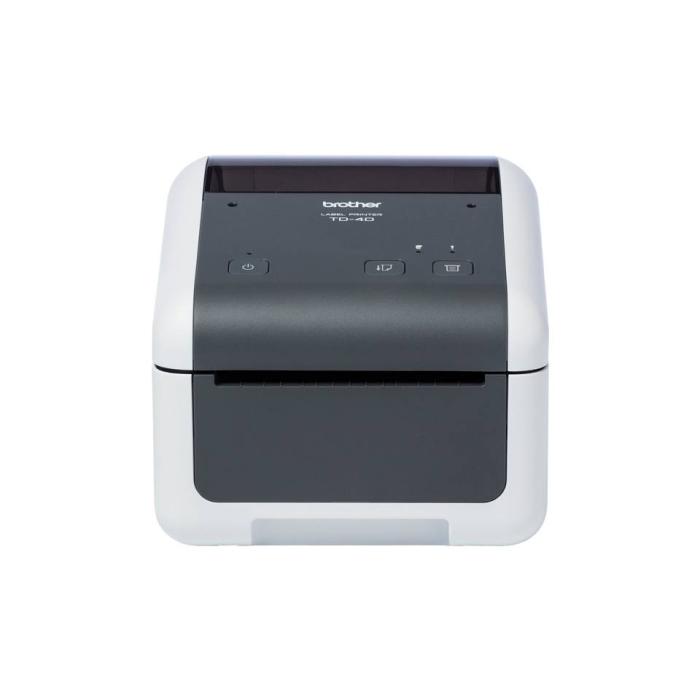

Brother TD-4520DN ticket printer in grey and white, with direct thermal printing technology and a maximum resolution of 300 x 300 DPI. It reaches a print speed of 6 Ipm and supports labels up to 11.8 cm wide, with a maximum roll diameter of 12.7 cm and a 1.27 cm core. Print length ranges from a minimum of 1.7 cm to a maximum of 3 m, and includes mirror printing and text styles such as bold, italic, shadow or outline. As for connectivity, it includes a USB 2.0 port, an RS-232 port and wired Ethernet connection. Its dimensions are 341 x 274 x 237 mm (width x height x depth) and it weighs 3.07 kg, making it easy to place on a counter or workstation.

Specifications

Printing

Print technology: Direct thermal
Colour: No
Maximum resolution: 300 x 300 DPI
Print speed: 6 lpm
Minimum print length: 1.7 cm
Mirror printing: Yes
Text style: Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Maximum print length: 3 m

Paper handling

Maximum label width: 11.8 cm
Maximum roll diameter: 12.7 cm
Core diameter: 1.27 cm

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN: Yes
Wi-Fi: No
Bluetooth: No
USB port: Yes
USB 2.0 ports quantity: 1
RS-232 ports: 1

Performance

Page description languages: CPCL-native, DPL, EPL2, ESC P, Raster_P, ZPL II
Internal memory: 256 MB
Flash memory: 64 MB
Built-in barcodes: CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, ITF, POSTNET, UPC-A, UPC-E
Number of fonts: 6
Font styles: Brougham,Brussels,Helsinki,Letter Gothic,San Diego

Design

Product colour: Grey, White
Built-in display: No
Display: No

Power

Auto power off: Yes

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Server operating systems supported: Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mobile operating systems supported: Android 4.1, Android 4.2, Android 4.2.1, Android 4.2.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android
Linux operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 5 - 40%
Storage relative humidity (H-H): 20 - 85%
Operating temperature (T-T): 10 - 90 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 341 mm
Depth: 237 mm
Height: 274 mm
Weight: 3.07 kg

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 3.99 kg

Packaging content

Cables included: AC, USB
Quick start guide: Yes
Warranty card: Yes
AC adapter included: Yes
Software development kit (SDK): Yes
Starter roll included: Yes

Logistics data

Harmonized System (HS) code: 84433210
Pallet gross height: 13.8 cm
Pallet gross weight: 177.8 kg
Master (outer) cases per pallet: 40 pc(s)
Master (outer) cases per pallet layer: 8 pc(s)
Layers per pallet: 5 pc(s)
Products per pallet: 40 pc(s)

Technical details

Pallet type: 800 x 1200 mm

Other features

Networking features: 10/100BASE-TX
LED indicators: Error, Power, Status
Country of origin: China
Languages support: Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Po
Date & time printing: Yes
Number of languages: 18
