Description

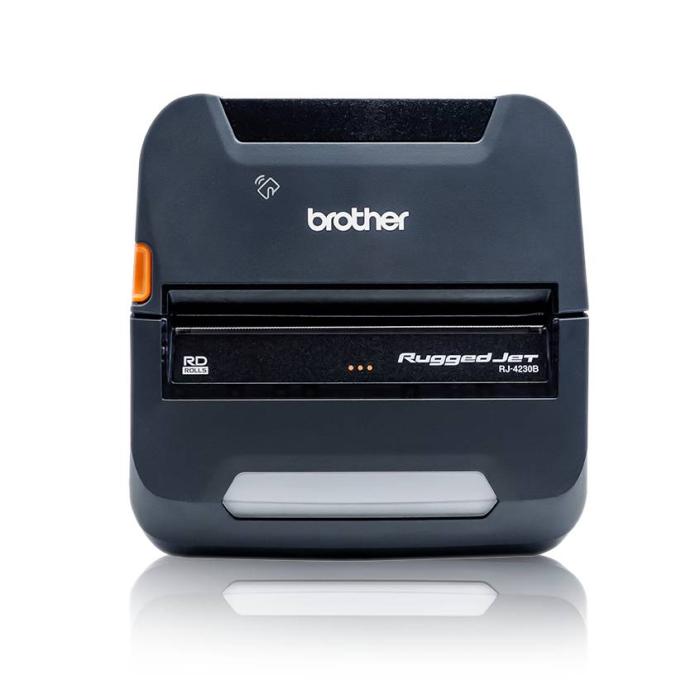

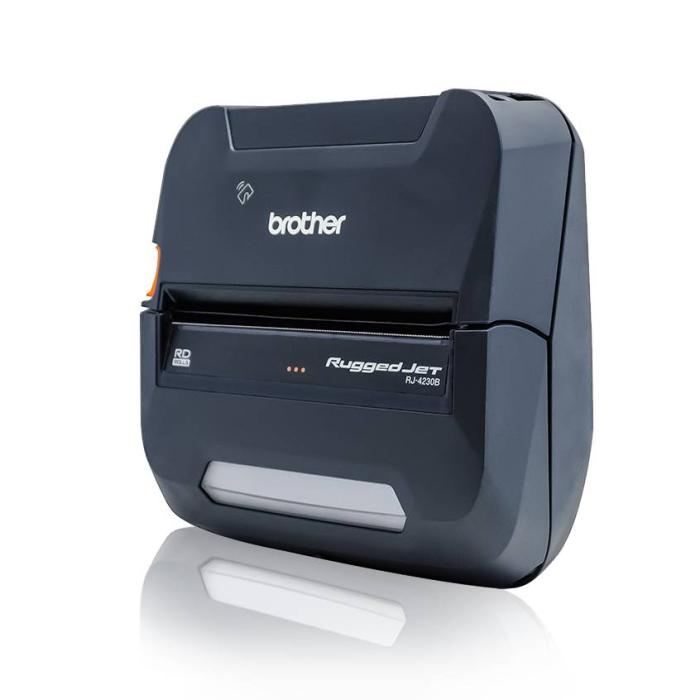

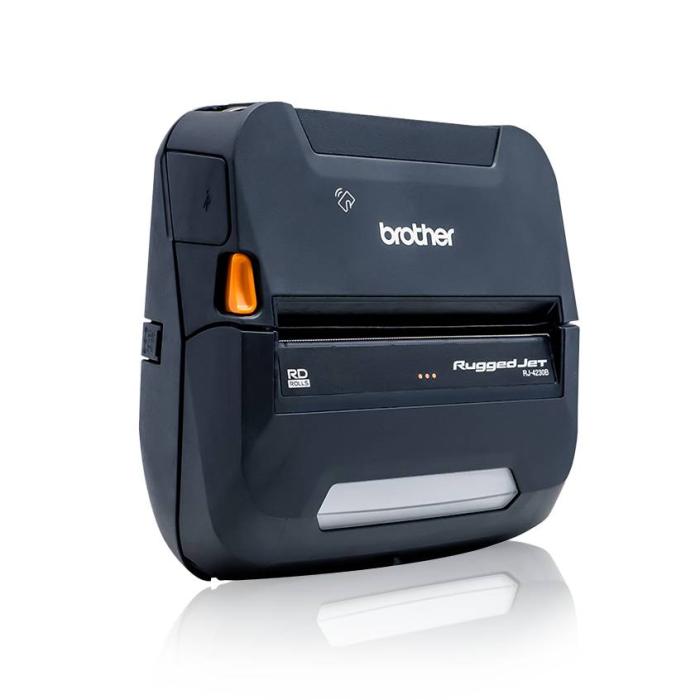

The Brother RJ4230BL label printer comes in black, with dimensions of 121 x 187 x 247 mm and a weight of 852 g, a compact format that makes it easy to carry from one workstation to another. It prints using direct thermal technology at a maximum resolution of 203 x 203 DPI and reaches a speed of 5 Ipm. It supports labels up to 11.3 cm wide, with a maximum print width of 10.4 cm, and works with lengths from 1.27 cm up to 3 m. The roll can reach a maximum diameter of 5.8 cm on a 2.54 cm core. As for connectivity, it works wirelessly and with a cable, and incorporates Bluetooth 4.2, as well as supporting Near Field Communication (NFC) as an option. Its 256 MB internal memory and 64 MB flash memory manage print jobs.
Specifications
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 5 lpm
- Maximum printing width: 10.4 cm
- Minimum print length: 1.27 cm
- Maximum print length: 3 m
Paper handling
- Maximum label width: 11.3 cm
- Maximum roll diameter: 5.8 cm
- Core diameter: 2.54 cm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: No
- Wi-Fi: No
- Bluetooth: Yes
- Bluetooth version: 4.2
- Optional connectivity: Near Field Communication (NFC)
Performance
- Page description languages: CPCL-native, ESC P, ESC/P-P, Raster_P, ZPL
- Internal memory: 256 MB
- Flash memory: 64 MB
- Built-in barcodes: AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1 DataBar Expanded, Ma
- Number of fonts: 16
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
- Cutter: Yes
- Certification: FCC Part15 Class B, UL, CE, CSA
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Colour display: No
- Backlight display: Yes
- International Protection (IP) code: IP54
Power
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 3000 mAh
- Battery voltage: 7.2 V
- Rechargeable: Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
- Server operating systems supported: Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
- Mobile operating systems supported: Android, iOS
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -20 - 55 °C
Weight & dimensions
- Width: 121 mm
- Depth: 247 mm
- Height: 187 mm
- Weight: 852 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package weight: 1.43 kg
Packaging content
- Cables included: USB
- Batteries included: Yes
- AC adapter included: Yes
Logistics data
- Pallet gross height: 16.2 cm
- Pallet gross weight: 264.4 kg
- Master (outer) cases per pallet: 56 pc(s)
- Master (outer) cases per pallet layer: 8 pc(s)
- Layers per pallet: 7 pc(s)
- Products per pallet: 168 pc(s)
Technical details
- Pallet type: 800 x 1200 mm
Other features
- I/O ports: MFi
- Media types supported: Paper, Synthetic Receipts, Labels, Tags
- Emulations: ZPL emulation, CPCL
- LED indicators: Yes
- Country of origin: China
