Description

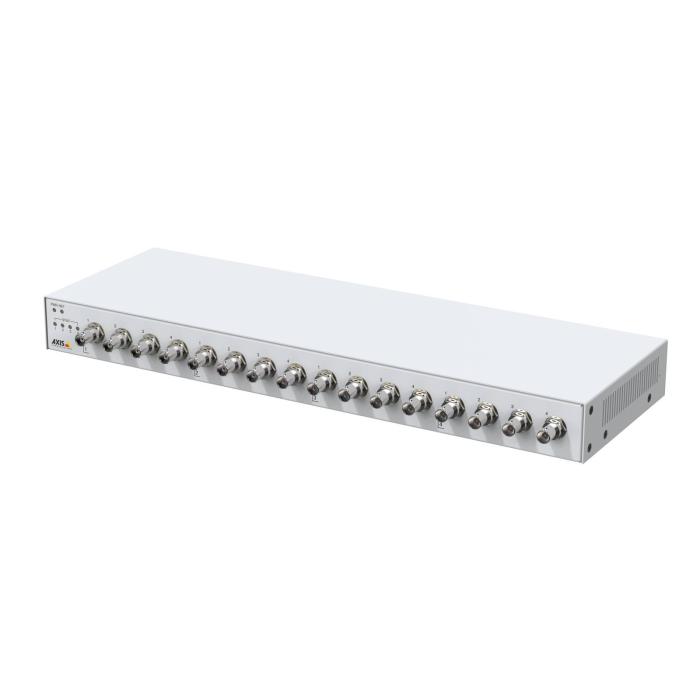

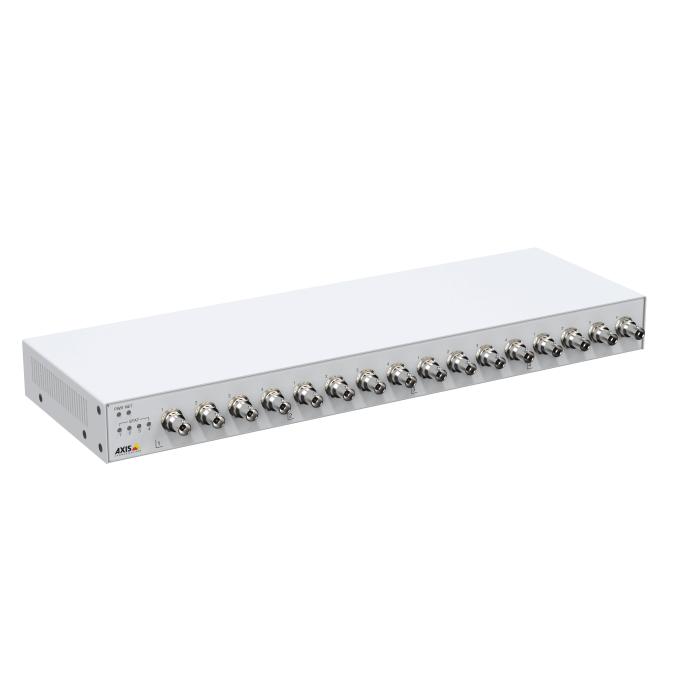

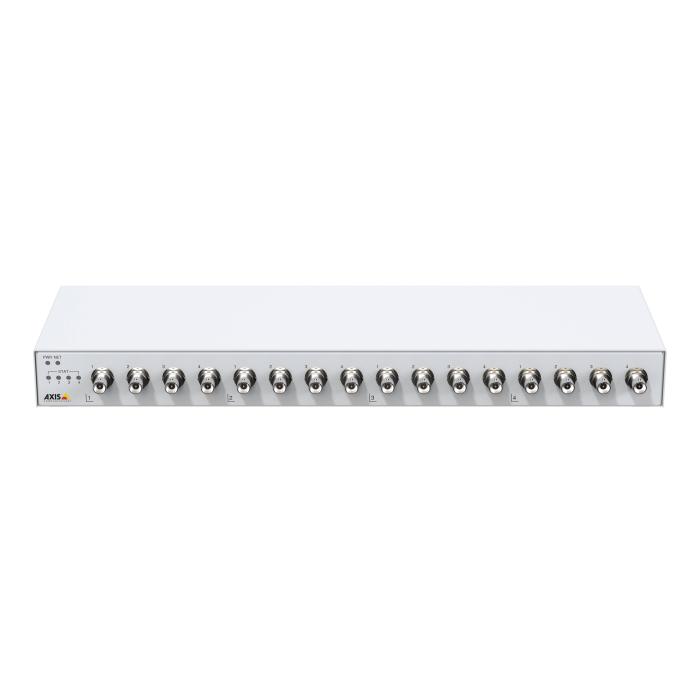

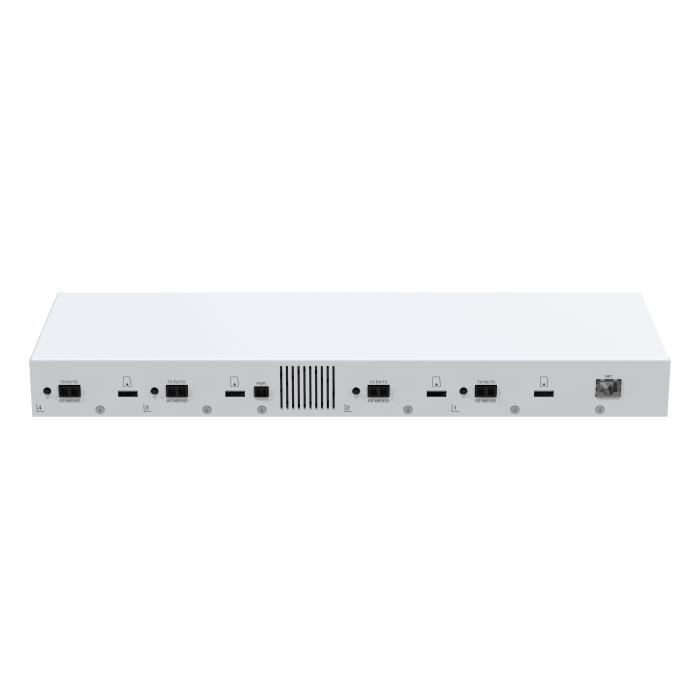

The Axis 02036-002 is a white video server and encoder that operates at a maximum resolution of 720 x 576 pixels and up to 30 fps. This 16-channel unit supports H.264 and H.265 compression formats, with PAL resolutions from 176x144 to 720x576 and NTSC from 176x120 to 720x480, as well as full bidirectional audio. It includes PTZ control, 270-degree rotation, and image adjustments such as brightness, contrast, sharpness, or privacy mask, along with 512 MB of flash and 1024 MB of internal memory. With support for MicroSD, MicroSDHC, and MicroSDXC cards, this encoder offers wall mounting and complies with IEC/EN/UL 62368-1 safety standards, making it a solution for managing and transmitting analogue or IP camera signals in professional installations.
Specifications
Video
- Maximum video resolution: 720 x 576 pixels
- Maximum frame rate: 30 fps
- Video compression formats: H.264, H.265
- NTSC resolutions: 176x120 - 720x480 pixels
- PAL resolutions: 176x144 - 720 x 576 pixels
- Channels quantity: 16 channels
- Full duplex: Yes
Performance
- Internal memory: 1024 MB
- Flash memory: 512 MB
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- PTZ control: Yes
- Image settings: Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness
- Frame rate: 30 fps
- Angle of rotation: 270°
Design
- Product colour: White
- Wall mountable: Yes
- Safety: IEC/EN/UL 62368-1
Network
- Quality of Service (QoS) support: Yes
- Networking standards: IEEE 802.1x
Security
- Security algorithms: EAP-TLS
- Video motion detection: Yes
- IP address filtering: Yes
- Active tampering alarm: Yes
Ports & interfaces
- BNC input ports: 16
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
- RS-485 ports: 4
- RS-422 ports: 4
Power
- Power consumption (typical): 26 W
Weight & dimensions
- Width: 440 mm
- Depth: 145 mm
- Height: 44 mm
- Weight: 2.05 kg
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
Technical details
- Quick installation guide: Yes
