Description

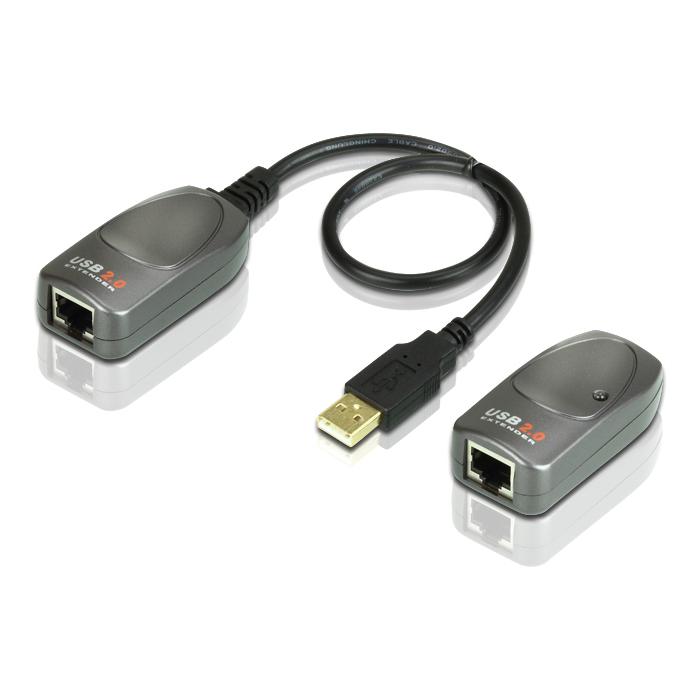

The ATEN USB 2.0 Cat 5 Extender is a console transmitter and receiver that allows the USB signal to be carried much further than a conventional cable reaches. It supports Cat5, Cat5e and Cat6 cables, so you can reuse the network cabling already installed in your home or office. It reaches a maximum transfer distance of 60 m, enough to span several rooms without losing the connection to the equipment. It maintains a data transfer rate of 480 Mbit/s, the standard USB 2.0 rate, so connected peripherals respond normally. It features two USB 2.0 type A ports and two RJ-45 ports, plus a DC input jack for power. It is plug and play, with no need to install drivers or configure anything. The housing is plastic and the unit is grey, with dimensions of 31 x 21.9 x 63 mm (width x height x depth) and a weight of 170 g.
Specifications
Technical details
- Type: Console transmitter & receiver
- Data transfer rate: 480 Mbit/s
- Maximum transfer distance: 60 m
- Product colour: Grey
- Housing material: Plastic
- Cable types supported: Cat5, Cat5e, Cat6
- Plug and Play: Yes
- Certification: CE, FCC
Ports & interfaces
- USB 2.0 Type-A ports quantity: 2
- RJ-45 ports quantity: 2
- DC-in jack: Yes
Weight & dimensions
- Width: 31 mm
- Depth: 63 mm
- Height: 21.9 mm
- Weight: 170 g
- Transmitter weight: 40 g
- Receiver weight: 20 g
- Package width: 61 mm
- Package depth: 162 mm
- Package height: 237 mm
- Package weight: 335 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Packaging content
- Manual: Yes
- AC adapter included: Yes
Power
- Power source type: DC, USB
Logistics data
- Master (outer) case net weight: 3.4 kg
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 20 pc(s)
