Description

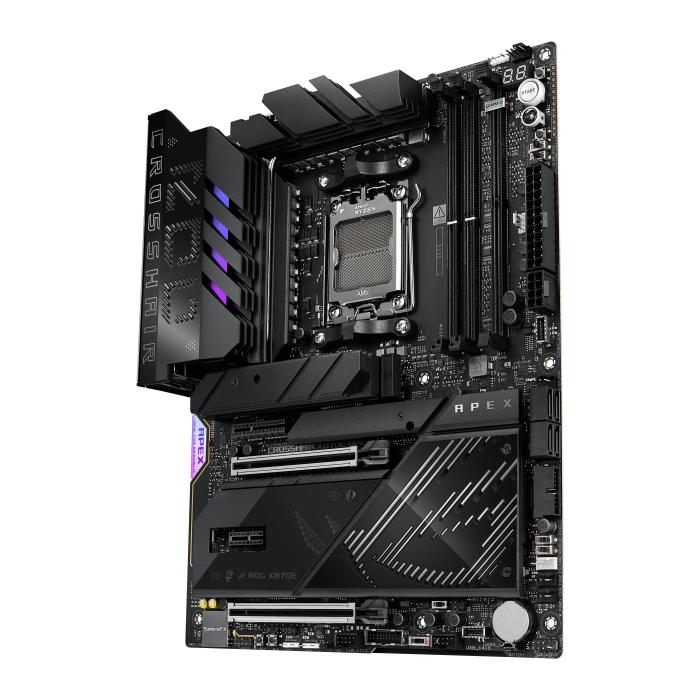

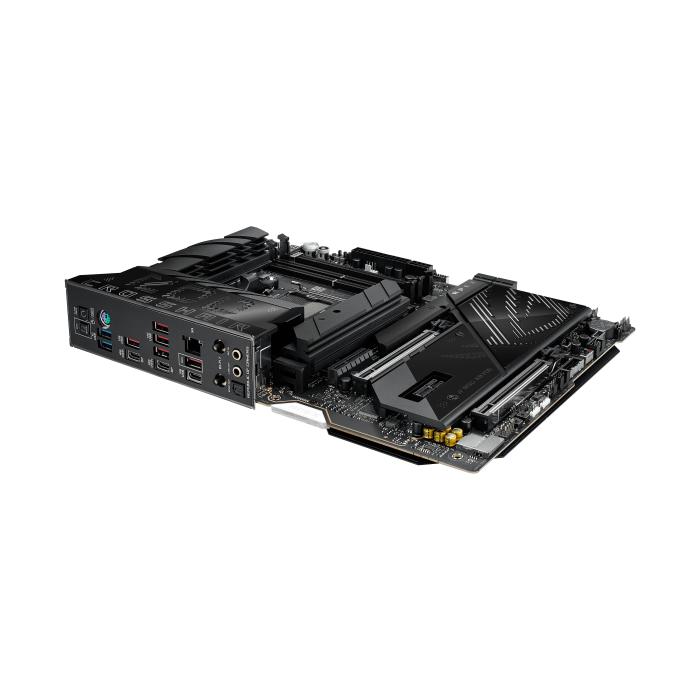

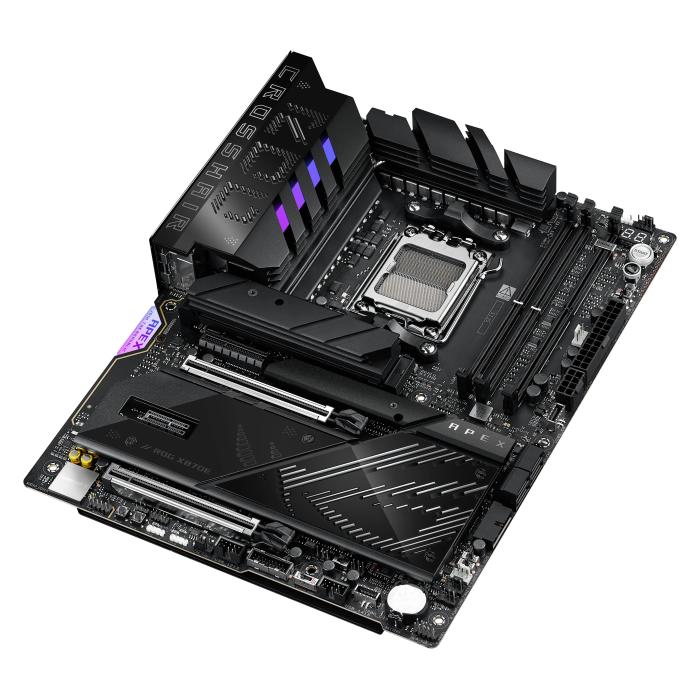

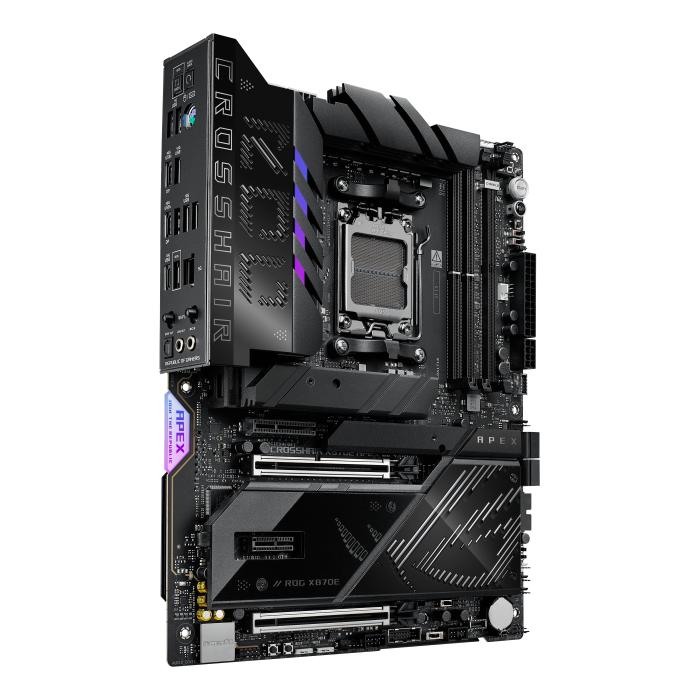

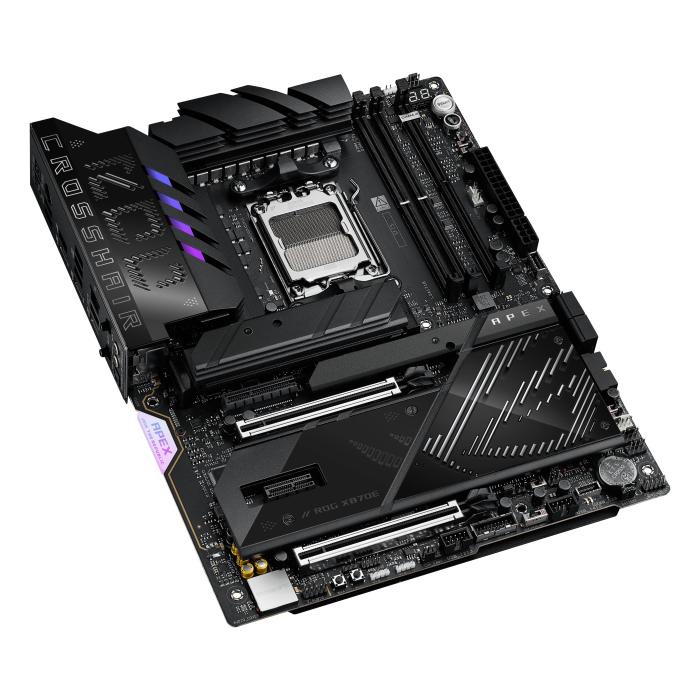

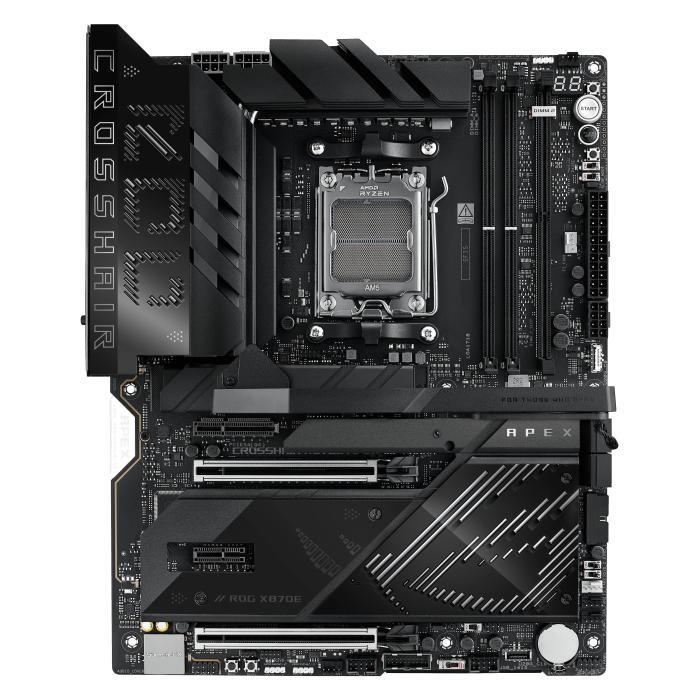

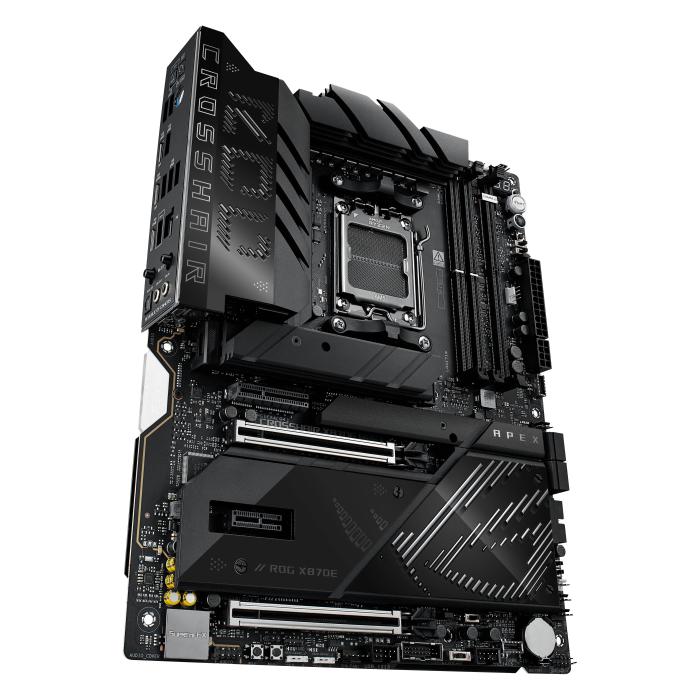

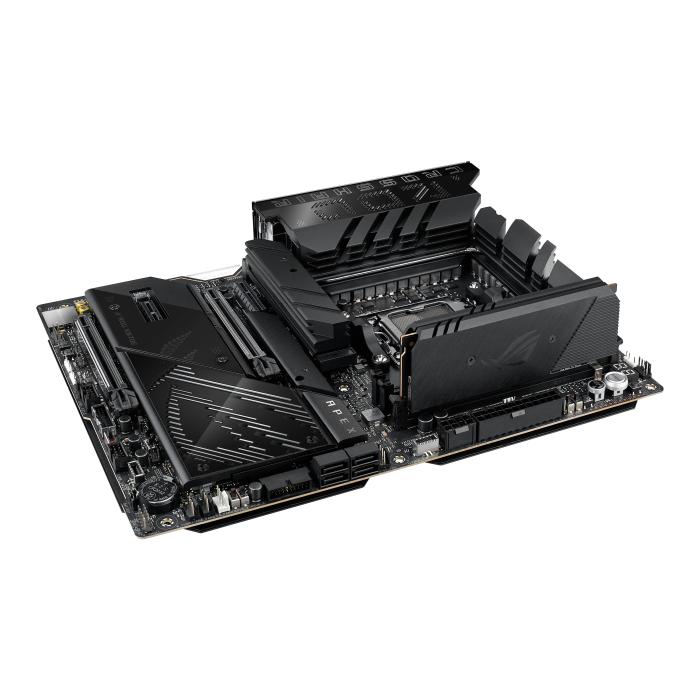

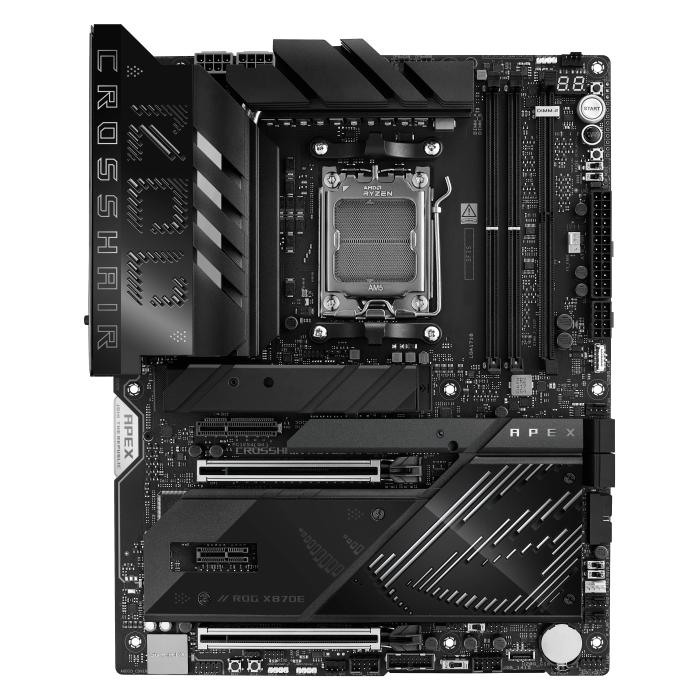

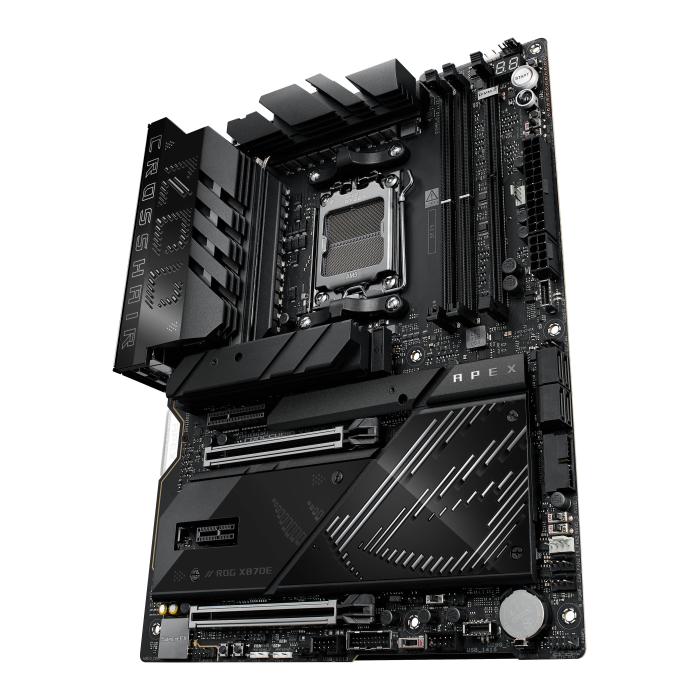

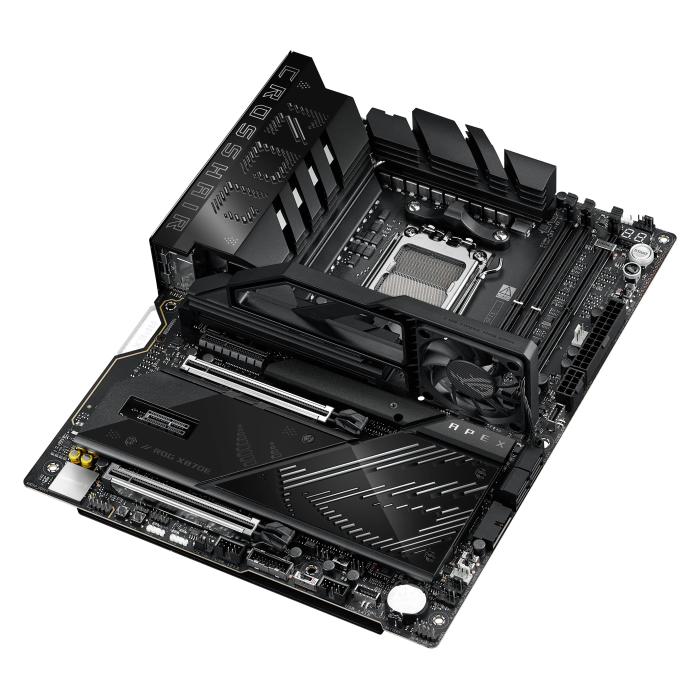

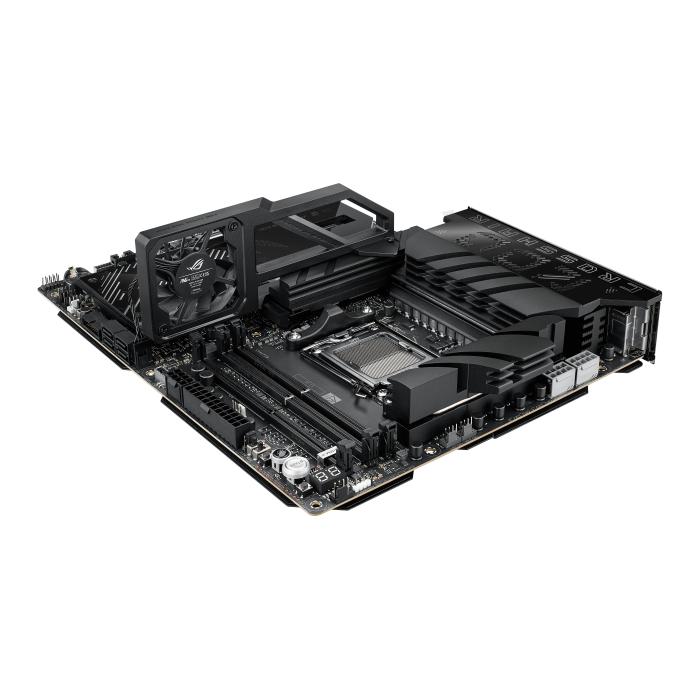

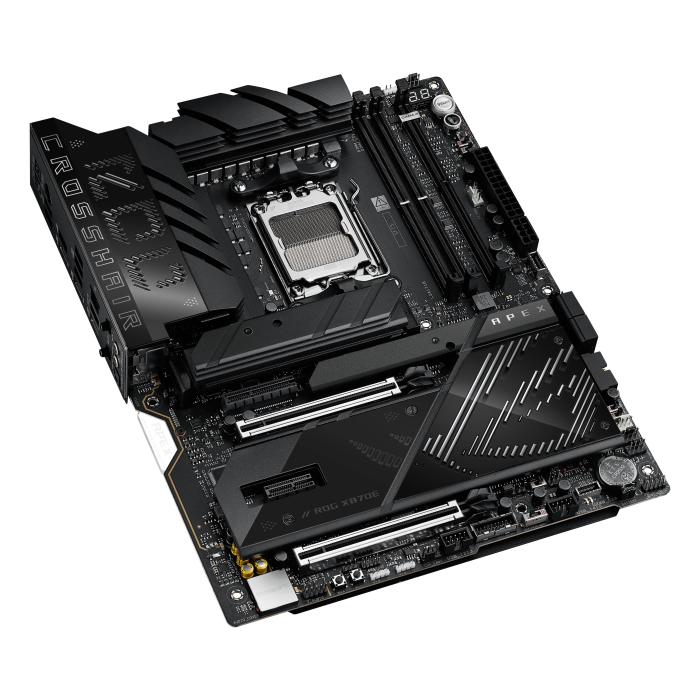

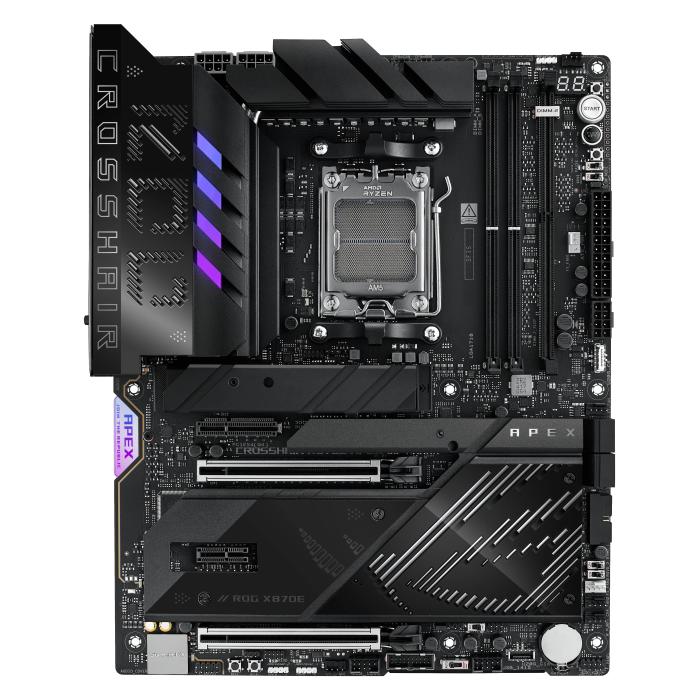

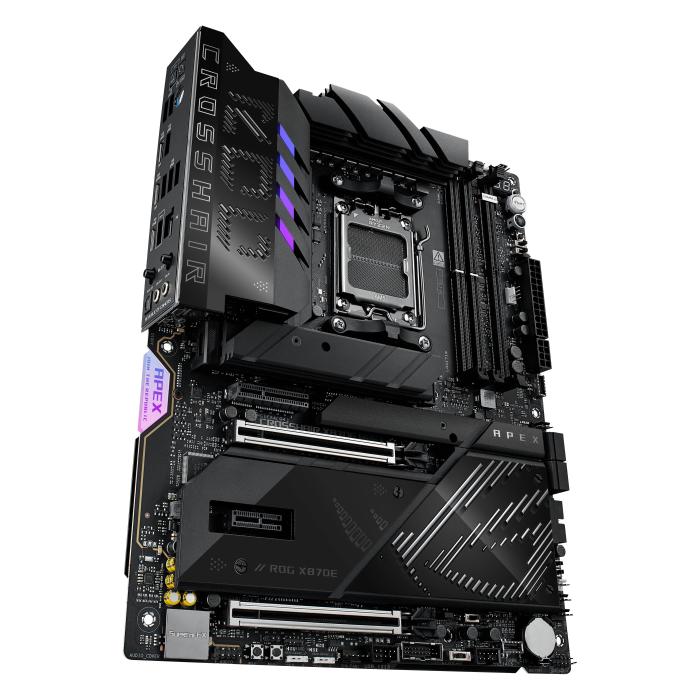

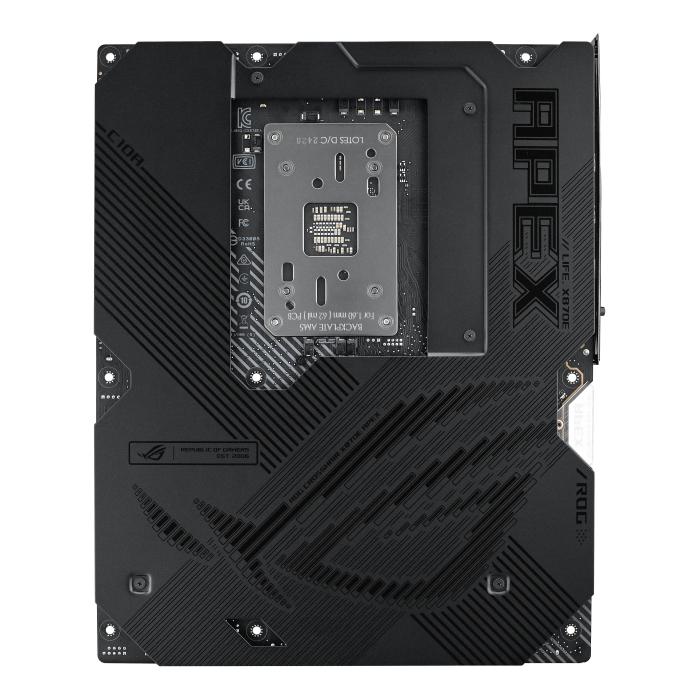

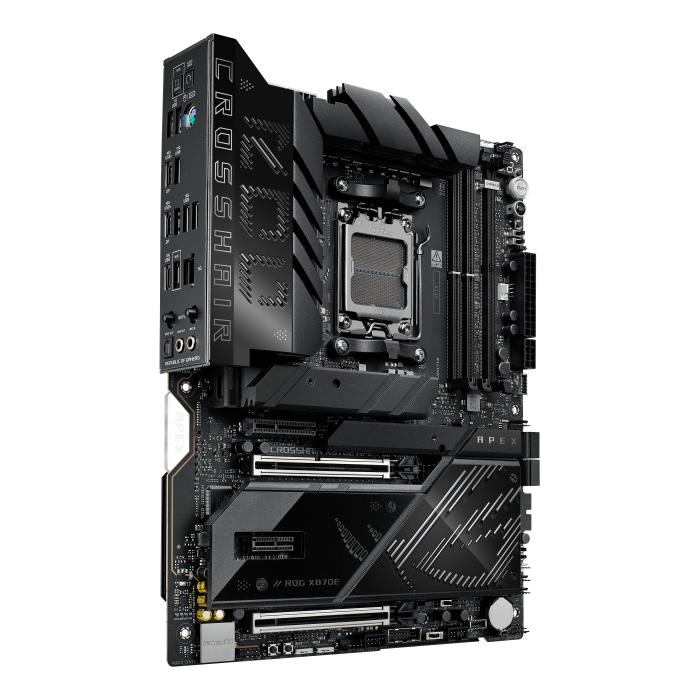

The ASUS ROG Crosshair X870E Apex motherboard, in black, is designed for builds with AMD processors on the AM5 socket. It is compatible with the AMD Ryzen 7000, 8000 and 9000 series, so you can shape a high-performance system without giving up recent generations from the manufacturer. It has two DIMM slots for unbuffered DDR5-SDRAM memory, with support for both ECC and non-ECC modules and a maximum capacity of 128 GB. Dual-channel operation helps to squeeze the memory bandwidth in demanding workloads. As for storage, it supports up to 9 drives between hard drives and SSDs, with 4 HDDs and compatibility with M.2 and SATA III interfaces. It also includes RAID support at levels 0, 1, 5 and 10, which allows you to configure arrays depending on whether you prioritise speed or redundancy.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 9
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2x2 connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

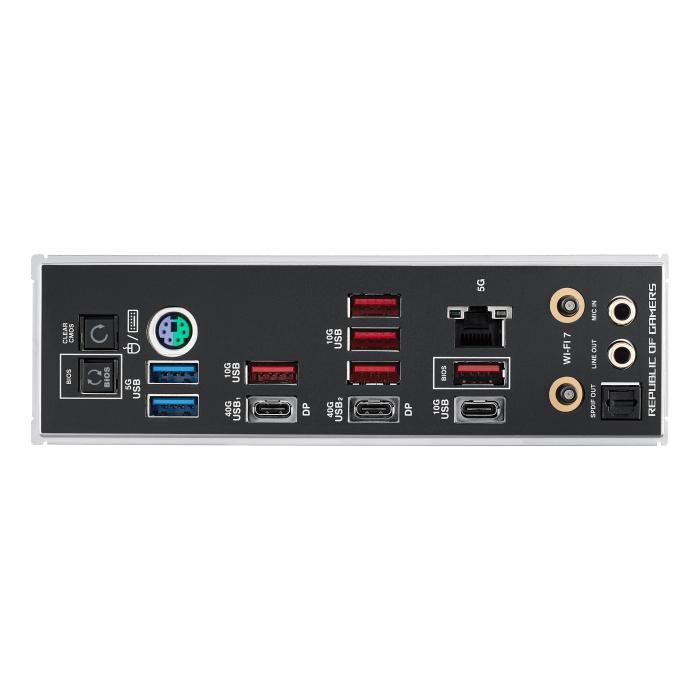

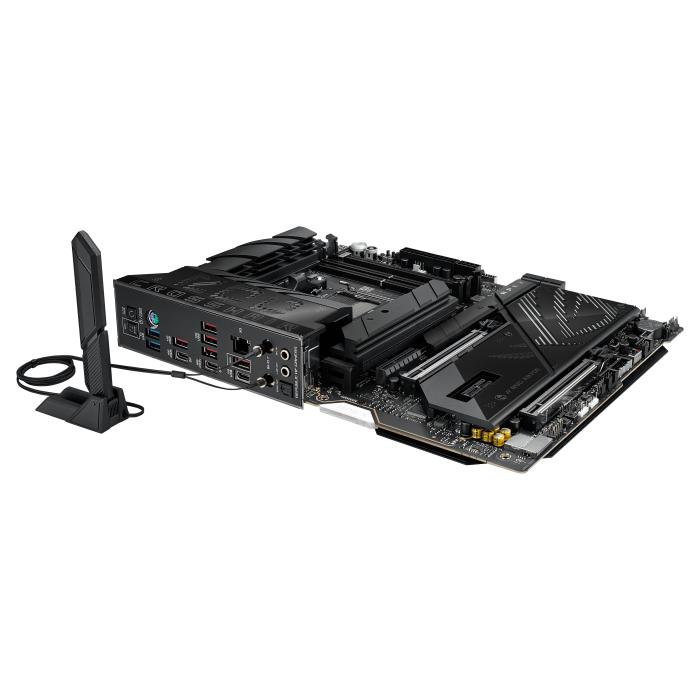

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB4 Gen 3x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- S/PDIF out port: Yes
- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870E
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x4 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 2
- Number of M.2 (M) slots: 5
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 5.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 5.0
- 4th M.2 largest key size: 22110
- 4th M.2 highest PCI Express generation: 4.0
- 5th M.2 largest key size: 22110
- 5th M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 512 Mbit
Packaging data
- Package width: 370 mm
- Package depth: 312 mm
- Package height: 108 mm
- Package weight: 4.16 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm

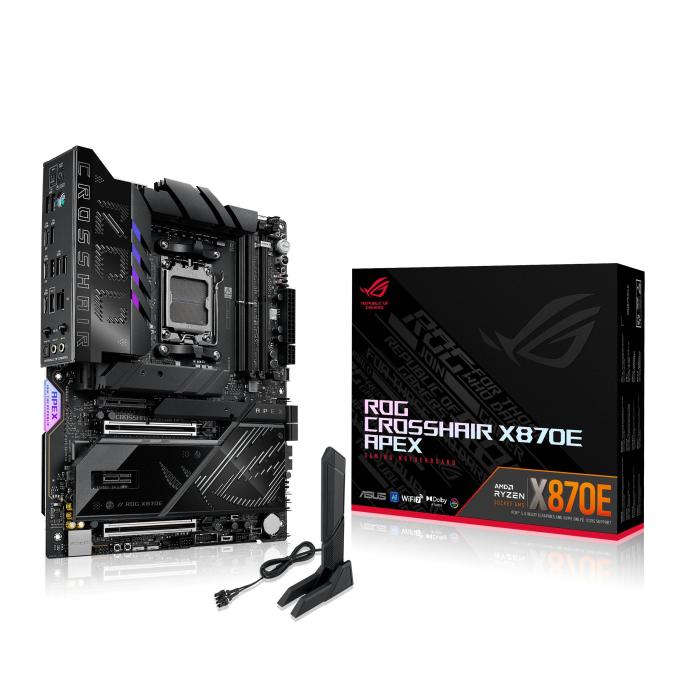

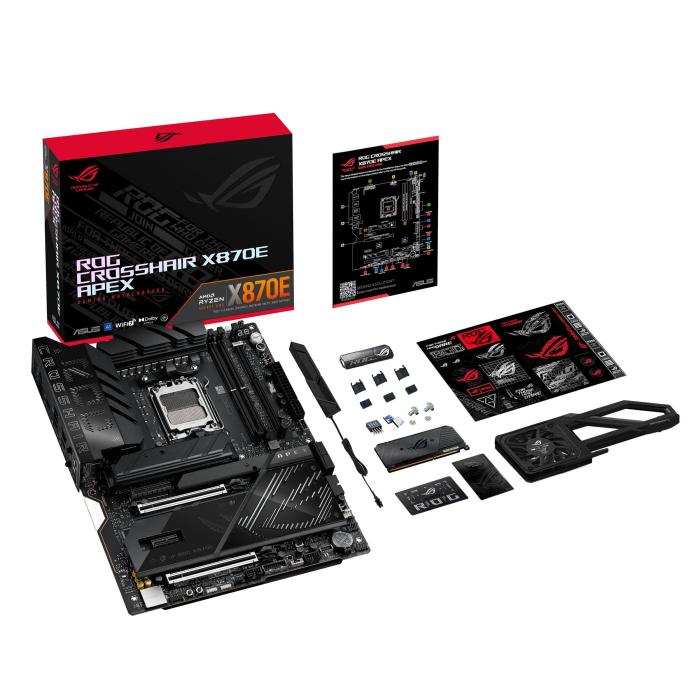

Packaging content
- Cables included: SATA
- Antenna included: Yes
- Screws included: Yes
- Drivers included: Yes
