Description

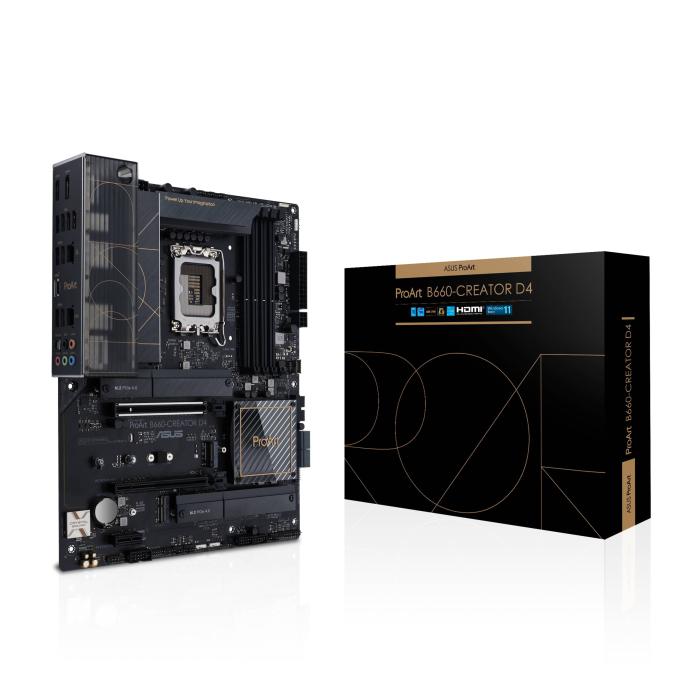

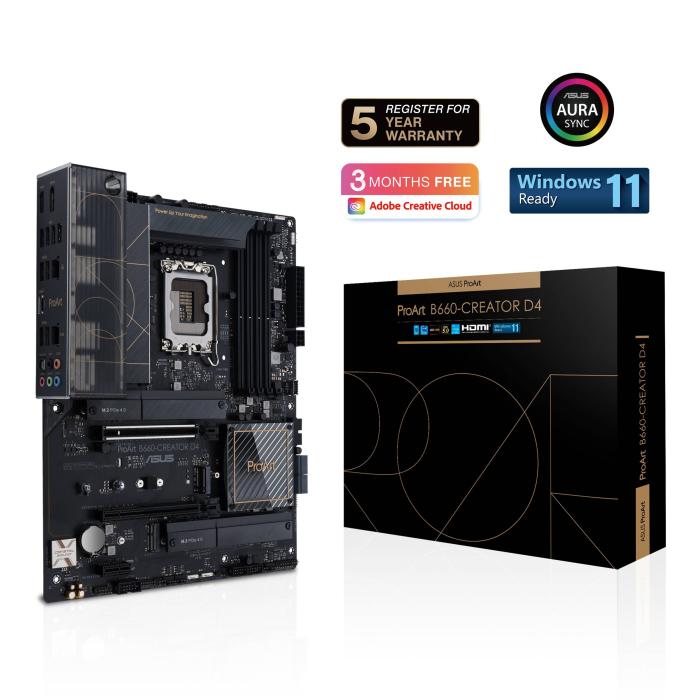

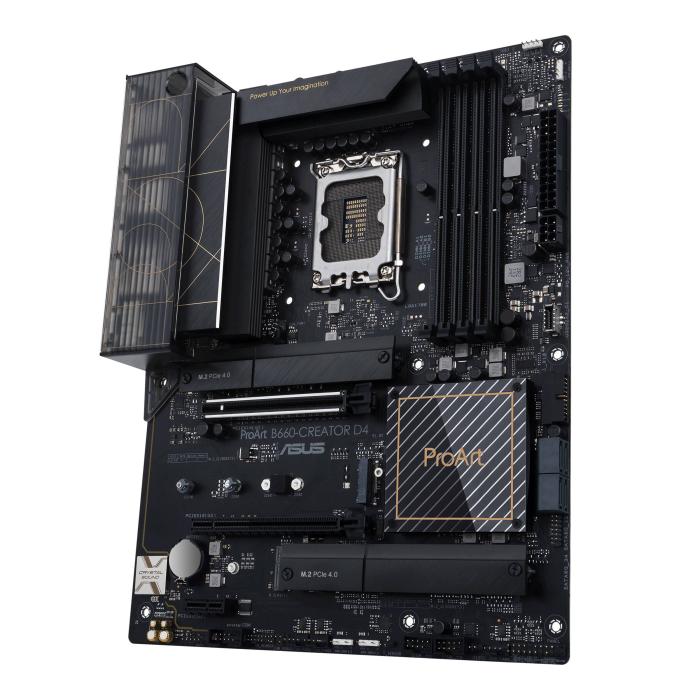

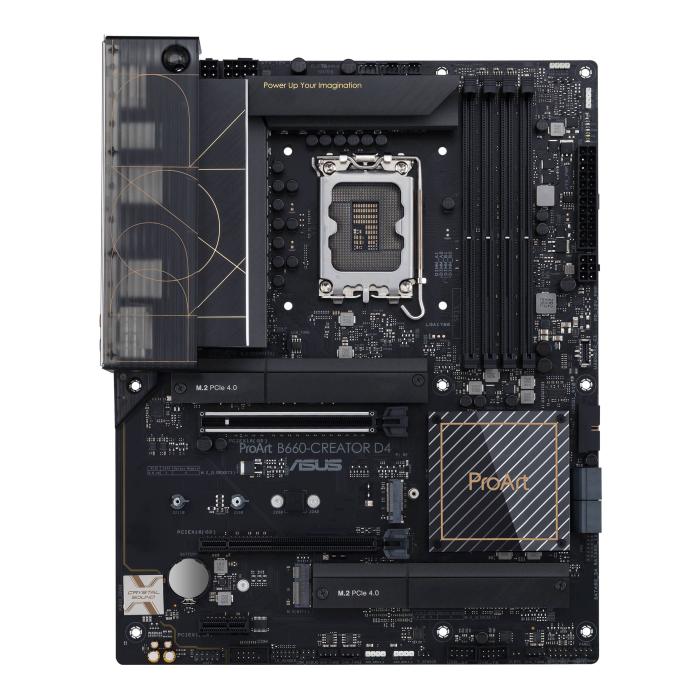

The ASUS ProArt B660-Creator D4 motherboard is an ATX board with LGA 1700 socket, designed to support Intel Celeron, Pentium Gold and Core i3, i5, i7 and i9 series processors. It accepts unbuffered DDR4-SDRAM memory in dual channel configuration, with four DIMM slots allowing a maximum of 128 GB. In the storage section it supports HDD and SSD drives via M.2, PCI Express 3.0, PCI Express 4.0 and SATA III interfaces, with capacity for seven drives and RAID compatibility at levels 0, 1, 5 and 10. It incorporates a 24-pin ATX power connector to power the whole setup. Its dimensions are 305 x 68 x 244 mm (width x height x depth) and its weight is 1.42 kg, a format that fits in cases prepared for ATX boards.
Specifications
Processor
- Supported processor sockets: LGA 1700
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5333 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 2
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 5
- Digital audio optical out: 1
- USB connector type: USB Type-A, USB Type-C
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel B660
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
BIOS
- BIOS memory size: 128 Mbit
- Clear CMOS jumper: Yes
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 68 mm
Packaging content
- Cables included: SATA
Other features
- Weight: 1.42 kg
