Description
The APC Smart-UPS UPS protects computer and communications equipment with a line-interactive topology, 0.45 kVA capacity and 280 W output power, in grey. It incorporates automatic voltage regulation to stabilise the current, offers a sine waveform and operates with an input frequency of 50/60 Hz. Its operating input voltage ranges between 151 V and 302 V, with a hold-up time of between 4 and 8 ms in the event of mains failures. It has four AC outlets and overload protection, as well as protection for DSL, fax, modem and network lines, with an energy increase rating of 320 J. It includes auto-restart and audible alarms for low battery and overload, with a noise level of 38 dB. Its dimensions are 432 x 44 x 383 mm (width x height x depth) and its weight is 10.2 kg.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 0.45 kVA
- Output power: 280 W
- Waveform: Sine
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 320 J
- Hold time (min): 4 ms
- Hold time (max): 8 ms
- Noise level: 38 dB
- Surge protection: Yes
- Surge protection features: Digital Subscriber Line (DSL), Fax, Modem, Network
- Audible alarm(s): Yes
- Audible alarm modes: Low battery alarm, Overload alarm
- Auto-restart: Yes

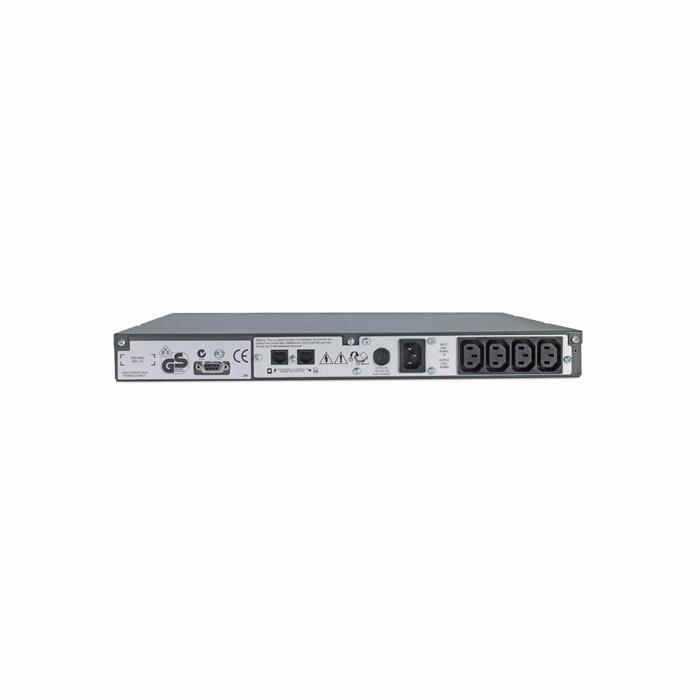

Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 4 AC outlet(s)
- Number of output IEC jumpers: 2
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 108 VAh

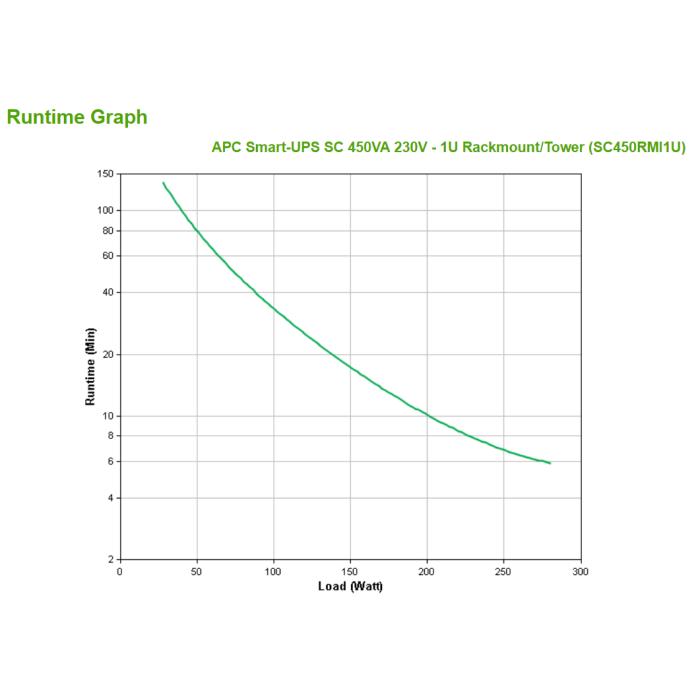

- Typical backup time at full load: 5.9 min
- Typical backup time at half load: 19.4 min
- Battery life (max): 5 year(s)
- Battery recharge time: 5 h
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 1U
- Product colour: Grey
- LED indicators: Battery replacement
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Certificates
- Compliance certificates: RoHS
- Certification: C-tick, CE, GOST, VDE, PEP, EOLI
Packaging content
- Rack mount kit: Yes
- Cables included: RS-232
- Manual: Yes
Weight & dimensions
- Width: 432 mm
- Depth: 383 mm
- Height: 44 mm
- Weight: 10.2 kg
Packaging data
- Software CD: Yes
- Package width: 476 mm
- Package depth: 589 mm
- Package height: 164 mm
- Package weight: 11.7 kg
Logistics data
- Products per pallet: 24 pc(s)
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 484.92
Other features
- Nominal output voltage: 230 V
