Description
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1 kVA
- Output power: 800 W
- Waveform: Sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 280 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Output voltage regulation: 1%
- Surge energy rating: 600 J
- Transfer time (Line Mode to Battery Mode): 0 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency: 88%
- Input power factor: 0.95
- Output power factor: 0.8
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): No
- Output voltage Total Harmonic Distortion (THD): 3%
- Noise level: 50 dB
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
- Auto-restart: Yes
- Maintenance-free: Yes
- Socket circuit breaker: Yes

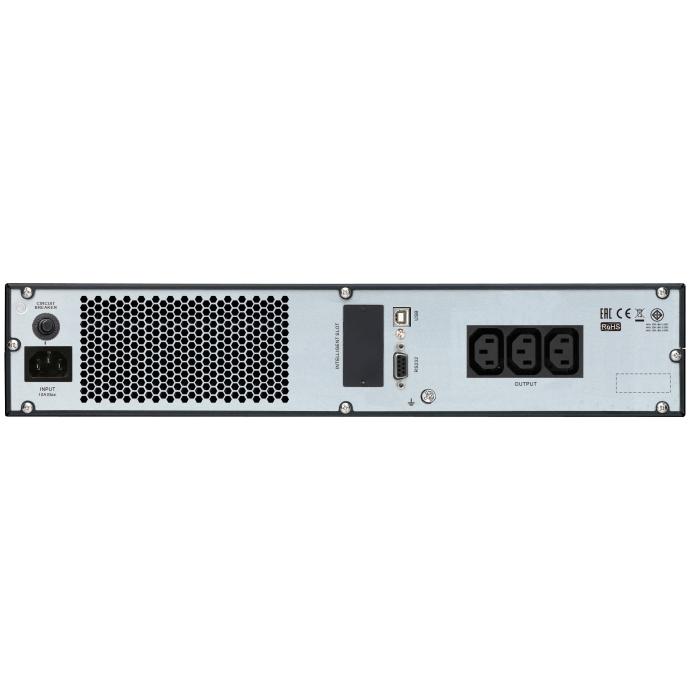

Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 3 AC outlet(s)
- USB port: Yes
- USB port type: USB Type-B
- Serial interface: Yes
- Serial ports quantity: 1
- SmartSlot: Yes
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery recharge time: 4 h
- Automatic battery test: Yes
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 14763.6 m
Certificates
- Compliance certificates: RoHS
- Certification: CE, IEC 62040-1-1, IEC 62040-1-2 REACH
Packaging content
- Cables included: USB cable
- Manual: Yes
Weight & dimensions
- Width: 437 mm
- Depth: 312 mm
- Height: 86 mm
- Weight: 11 kg
Packaging data
- Software CD: Yes
- Package width: 455 mm
- Package depth: 551 mm
- Package height: 218 mm
- Package weight: 13.1 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
