Description

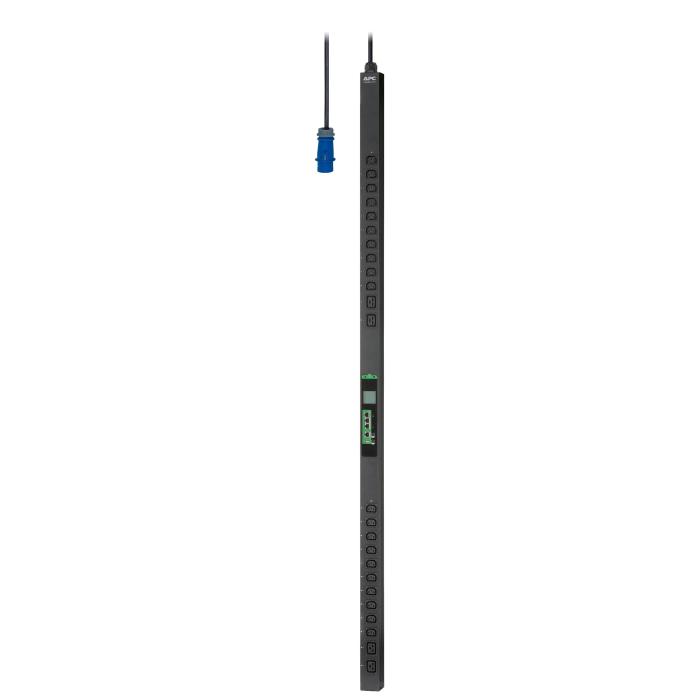

The APC EPDU1116S power distribution unit is a single-phase vertically mounted PDU with 0U rack capacity, designed to organise equipment power supply in technical cabinets. It offers 24 AC outlets with C13 and C19 connectors, plus an IEC309 inlet connector, so you can simultaneously power servers, switches and other rack devices. Its nominal input voltage is 230 V and it supports a maximum current of 16 A. It includes an LCD display that makes it easy to read the equipment status and current, power and voltage monitoring functions. As a regulated and switched PDU, it allows output control via locking, rebooting, shutdown and power-on, with the possibility of daisy-chaining several units. The housing is made of aluminium and the product comes in black.
Specifications
Design
- PDU types: Metered, Switched
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Housing material: Aluminium
- Product colour: Black
- Display: LCD
- On/off switch: No
Ports & interfaces
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
Features
- Daisy chain: Yes
Management features
- Monitoring: Current, Power, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
Power
- Nominal input voltage: 230 V
- Maximum current: 16 A
