Allied Telesis AT-MMC200/LC-960 network media converter 100 Mbit/s 1310 nm Grey
More info
Brand: ALLIED TELESIS
216.73 €
180.61 €
without VAT
Stock available: 1 ud.
Get it
on the
September 24
/
September 25
SKU:
113078
PRC:
297752
EAN:
767035218663
PN:
AT-MMC200/LC-960
Description

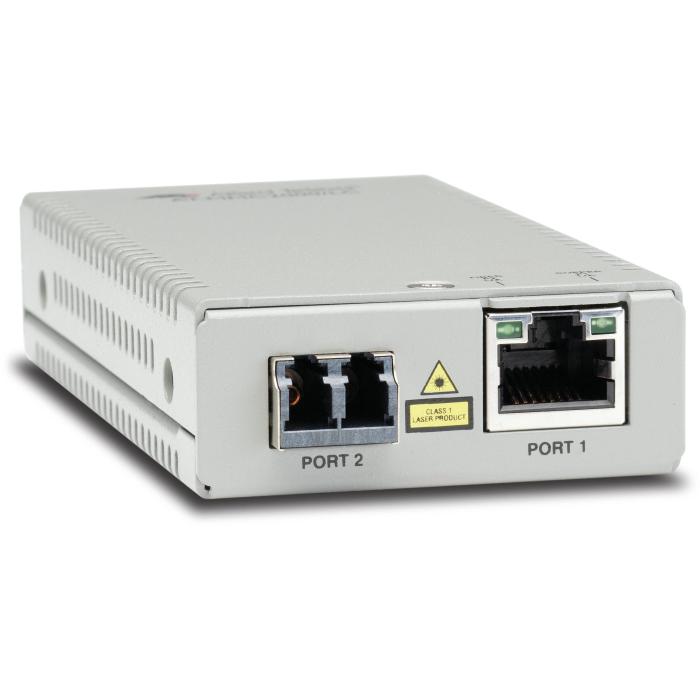

The Allied Telesis AT-MMC200/LC-960 media converter, in grey and weighing 170 g, connects Fast Ethernet network segments. Its dimensions are 56 x 21.8 x 101.6 mm (width x height x depth). It works with data transfer speeds of 10 and 100 Mbit/s, and its input converter interface is 100Base-TX, while the output is 100Base-FX. It features auto MDI/MDI-X and full duplex system, as well as store-and-forward support. The maximum transfer distance reaches 2000 m with a wavelength of 1310 nm. It offers maximum Tx power of -14 dBmW, minimum Tx power of -20 dBmW and minimum Rx power of -32 dBmW. It has LED indicators for activity and link, and support for VLAN, Jumbo Frames and the IEEE 802.1Q standard.
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 100Base-TX
- Converter output interface: 100Base-FX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Fiber ethernet cabling technology: 1000BASE‑SX
- Jumbo frames support: Yes
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Store-and-forward: Yes
- Duplex system: Full
Performance
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Tx power (min): -20 dBmW
- Tx power (max): -14 dBmW
- Rx power (min): -32 dBmW
Features
- Internal: No
- LED indicators: Activity, Link
- Product colour: Grey
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 2
- Fiber optic connector: LC
Power
- Input voltage: 12 V
- Input current: 0.14 A
- Power consumption (typical): 1.7 W
- Power over Ethernet (PoE): Yes
Weight & dimensions
- Width: 56 mm
- Depth: 101.6 mm
- Height: 21.8 mm
- Weight: 170 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -15 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
Packaging content
- User guide: Yes
- Manual: Yes
- Quick installation guide: Yes
Certificates
- Safety: FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
- Certification: CE, EN55024, EN61000-3-2, EN61000-3-3
Logistics data
- Harmonized System (HS) code: 85176990
