Description

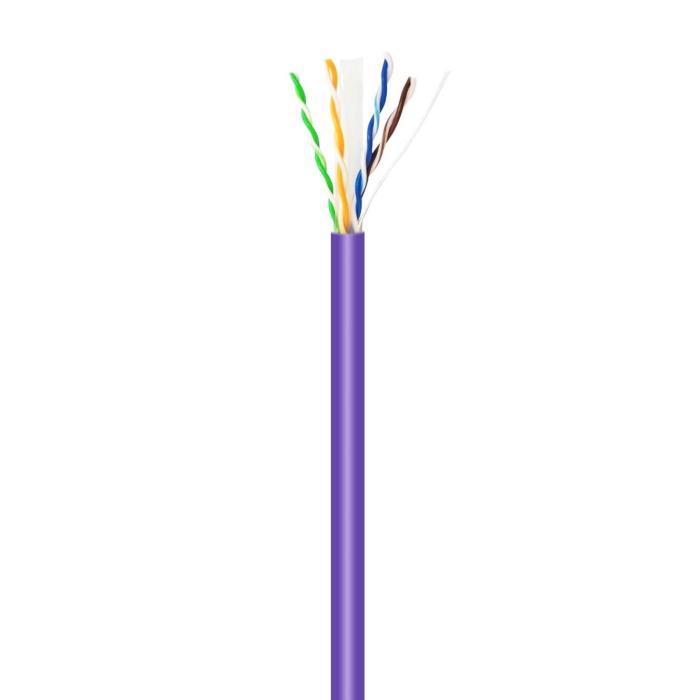

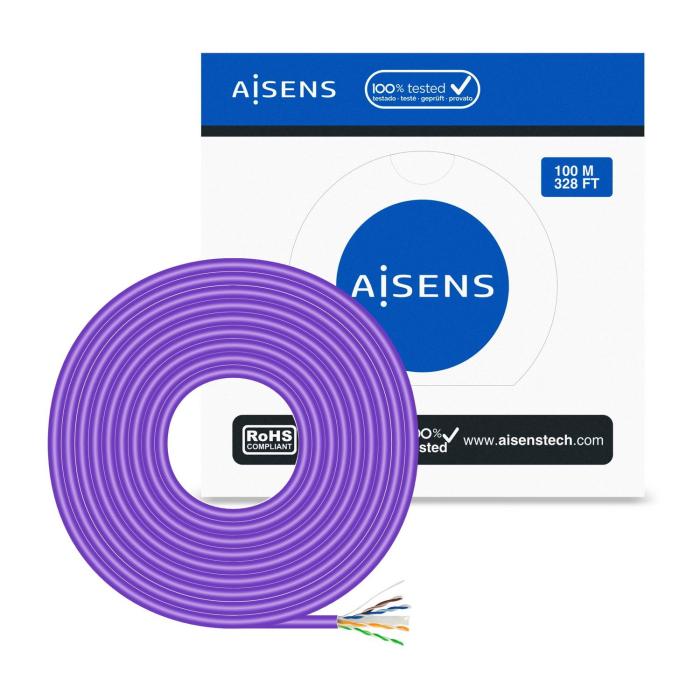

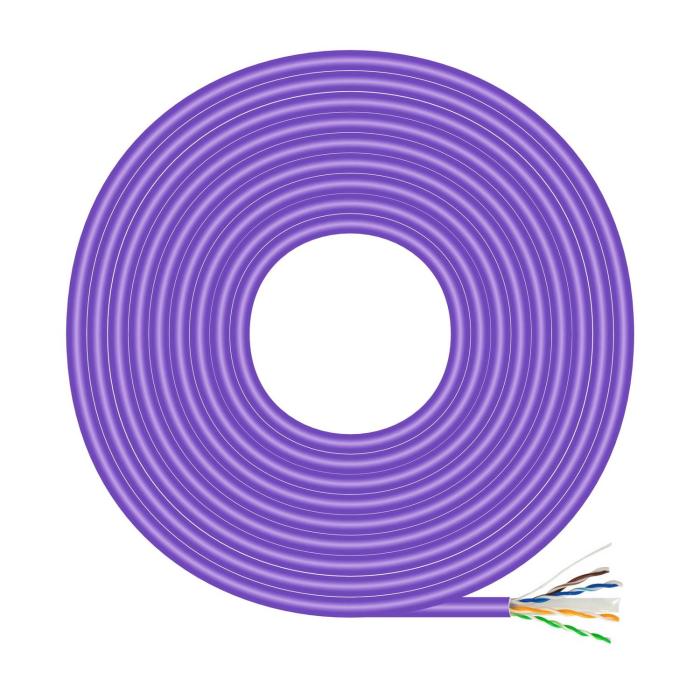

AISENS brand network cable in violet, supplied as a 100 m cable roll. It is a round-section network cable, with Cat6 category, UTP and U/UTP as shielding type, making it suitable for structured cabling installations requiring an operating frequency of 250 MHz. Its conductor is made of copper-clad aluminium (CCA) and AWG23 gauge, while the jacket is made of halogen-free material (LSZH), so that the cable itself does not contain halogen. As it is a rigid cable, it is suitable for conduits and fixed installations where the run does not need to move. It has RoHS certification in compliance with applicable regulations. Its continuous supply format allows long runs of network installation to be undertaken without the need for intermediate splices. It is a solution for those deploying a fixed data network with a single 100 m length cable run.
Specifications
Features
- Product colour: Violet
- Cable length: 100 m
- Cable standard: Cat6
- Cable shielding: U/UTP (UTP)
- Connector 1: No
- Connector 2: No
- Connector 1 gender: No
- Connector 2 gender: No
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor material: Copper-Clad Aluminium (CCA)
- AWG wire size: 23
- Frequency: 250 MHz
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: RoHS
- Certification: ANSI / TIA / EIA 568-B-1, CAT6, ISO / IEC 11801 CLASS E (2nd Edition), CENELEC EN 50173-1, IEC 61156-5, CENELEC EN 50288-6-1, IE
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 270 mm
- Package depth: 270 mm
- Package height: 100 mm
- Package weight: 3.45 kg
- Package volume: 7290 cm³
- Package type: Reel
Logistics data
- Master (outer) case width: 280 mm
- Master (outer) case length: 452 mm
- Master (outer) case gross weight: 13.8 kg
- Master (outer) case height: 290 mm
- Products per master (outer) case: 4 pc(s)
- Master (outer) case volume: 36702.4 cm³
