AISENS ASPC-500ATX-SEO power supply unit 500 W 20+4 pin ATX ATX Silver

Brand: AISENS

16.86 €

14.05 € without VAT

Get it on the January 1 / January 5

SKU: 123672 PRC: 627795 EAN: 8435739904053 PN: ASPC-500ATX-SEO

Description

Specifications

Power

Total power: 500 W
AC input voltage: 220 V
AC input frequency: 50/60 Hz
Input current: 2.5 - 5 A
Max output current (+3.3V): 28 A
Max output current (+12V): 21 A
Max output current (+5V): 30 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

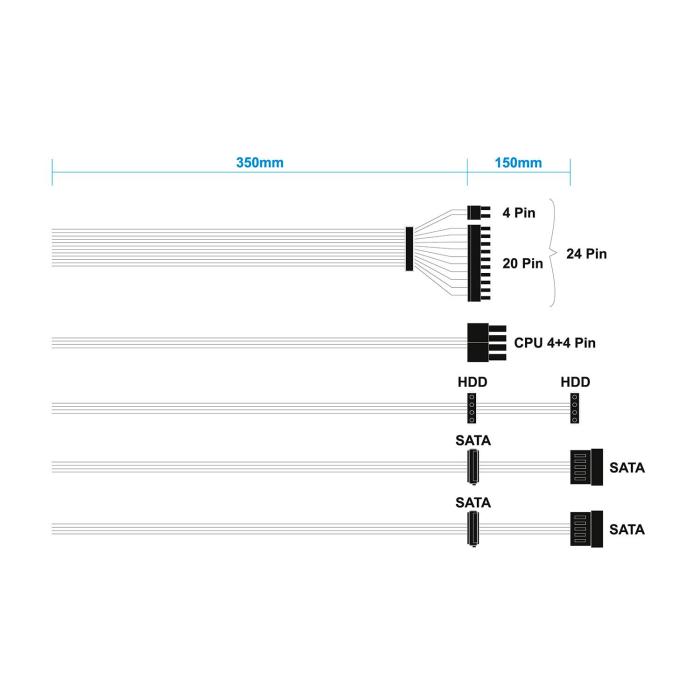

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 4
SATA power cable length: 350, 500 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 350, 500 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 35 cm
ATX power connector (20+4 pin): Yes

Performance

Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.0

Design

Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes

Certificates

Compliance certificates: CE, RoHS

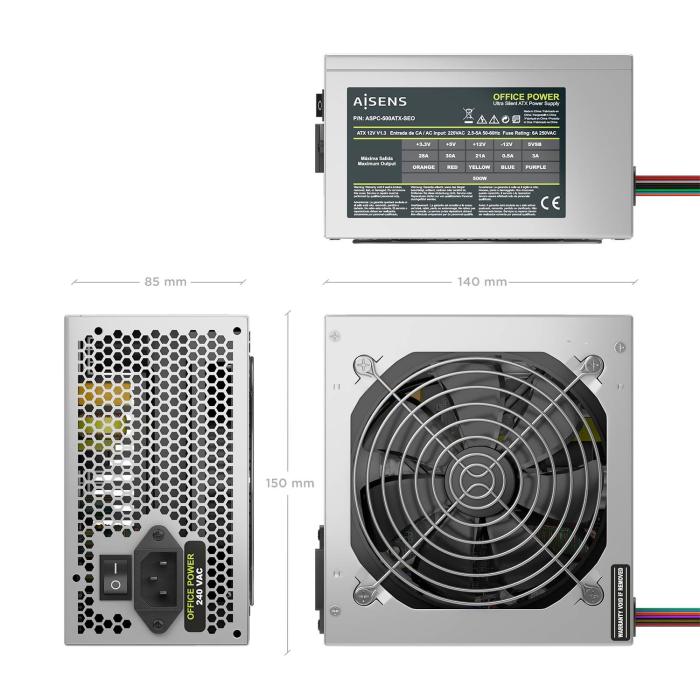

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 85 mm

Packaging data

Package width: 157 mm
Package depth: 230 mm
Package height: 95 mm
Package weight: 1.06 kg

Logistics data

Master (outer) case width: 335 mm
Master (outer) case length: 495 mm
Master (outer) case height: 265 mm
Master (outer) case net weight: 10.7 kg
Master (outer) case volume: 43944 cm³
Products per master (outer) case: 10 pc(s)

Other features

Package volume: 3430 cm³
