Description

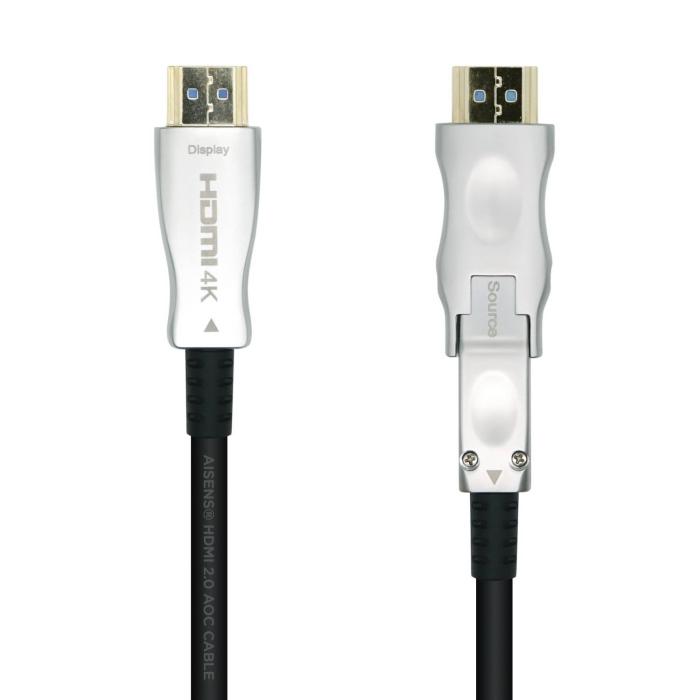

The AISENS HDMI cable, made of optical fibre and copper in black, connects devices with a standard HDMI Type A connector and a micro HDMI Type D connector, both straight. It is a 20 m round cable with a PVC jacket and gold-plated contacts, designed for long runs where the signal must travel without appreciable loss. It supports graphic resolutions of up to 3840 x 2160 pixels and 2160p video modes, with a maximum refresh rate of 60 Hz. It offers RGB 4:4:4 compatibility and a colour depth of 48 bit, as well as HDR10 technology to reproduce images with greater contrast and detail. It is compatible with 3D content and works unidirectionally, so the connection direction between the source and the screen should be respected.
Specifications
Features
- Shield material: Aluminium
- Colour depth: 48 bit
- Cable length: 20 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type D (Micro)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- HDMI version: 2.0
- 3D: Yes
- Supported graphics resolutions: 3840 x 2160
- Supported video modes: 2160p
- Audio Return Channel (ARC): Yes
- HDMI Ethernet channel: Yes
- HDCP: Yes
- HDCP version: 2.2
- RGB support: 4:4:4
- Data transfer rate: 18 Gbit/s
- High Dynamic Range (HDR) supported: Yes
- High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
- Unidirectional: Yes
- Maximum refresh rate: 60 Hz
- Connector contacts plating: Gold

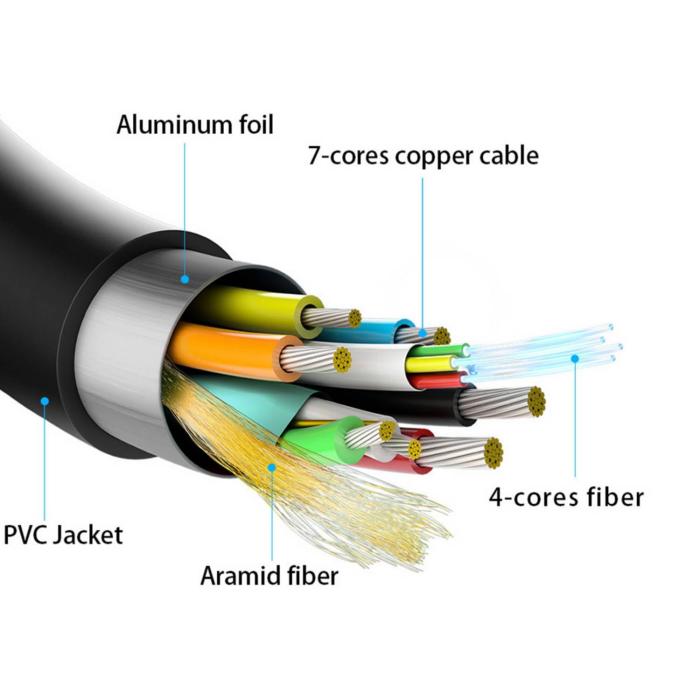

- Cable material: Fibre optic/Copper
- Cable type: Round cable
- Cable jacket material: Polyvinyl chloride (PVC)
Certificates
- Compliance certificates: RoHS
Weight & dimensions
- Package volume: 1792 cm³
Packaging content

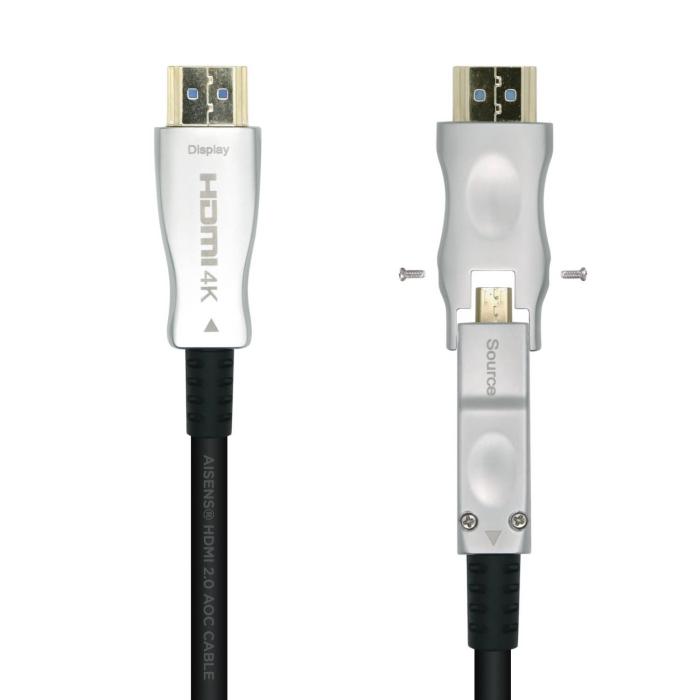

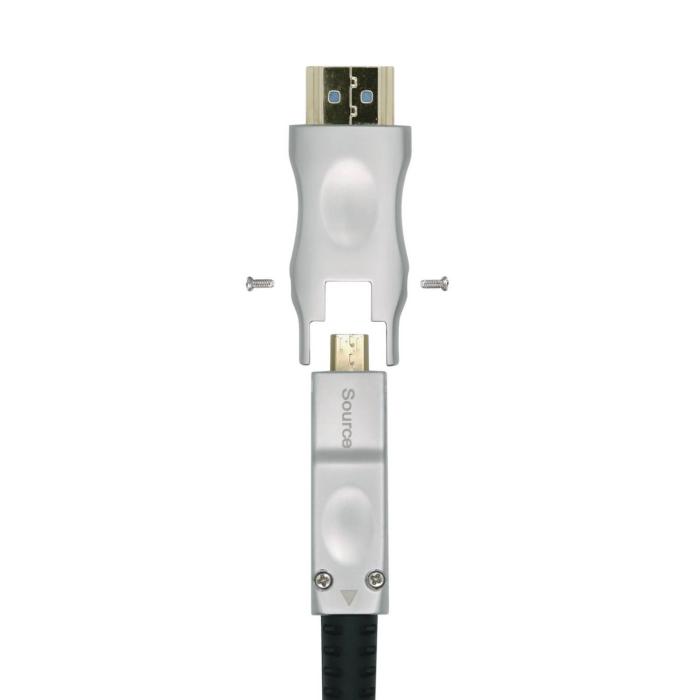

- Interface adapters included: Micro HDMI female - HDMI male
Packaging data
- Package width: 160 mm
- Package depth: 70 mm
- Package height: 160 mm
- Package weight: 770 g
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 195 mm
- Master (outer) case length: 350 mm
- Master (outer) case height: 400 mm
- Master (outer) case gross weight: 7.7 kg
- Master (outer) case volume: 27300 cm³
- Products per master (outer) case: 10 pc(s)
